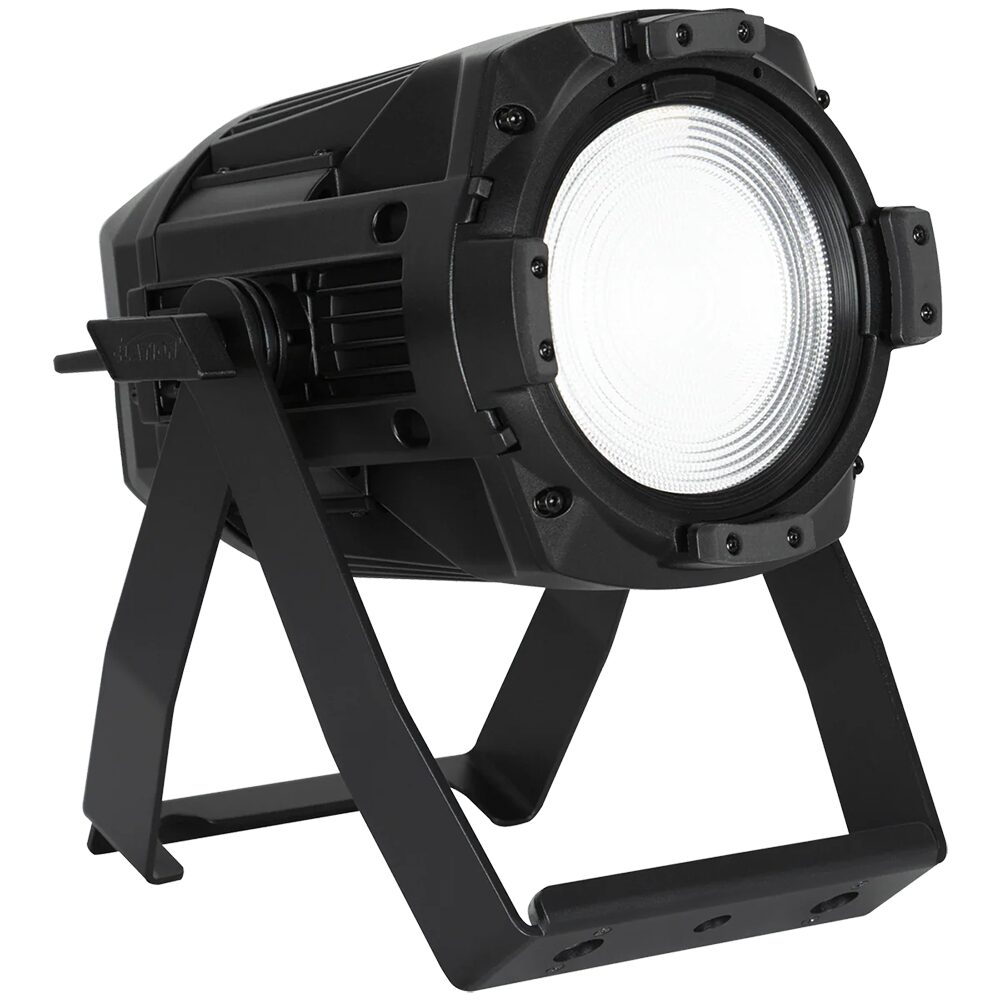

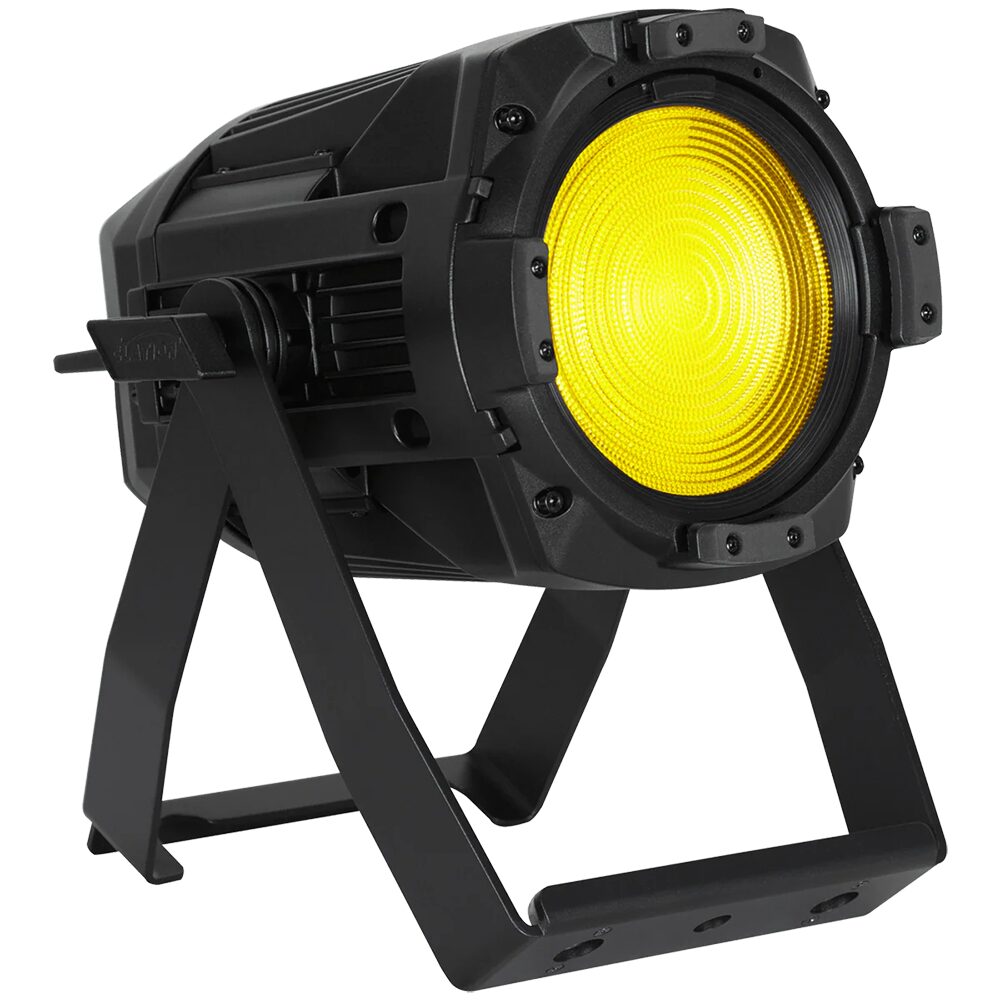

Elation – KL PAR IP COMPACT

Elation

Compact, powerful, and versatile, the KL PAR IP COMPACT delivers exceptional lighting performance in a small, rugged package. Designed for any environment, this IP65-rated LED fixture offers precise color temperature control, full-spectrum rendering, and consistent wash coverage, powered by a highly efficient RGBMA engine that provides up to 5,474 lumens.

SKU: ELA1236100197 Categories: , , ,

Description

Compact, powerful, and versatile, the KL PAR IP COMPACT delivers exceptional lighting performance in a small, rugged package. Designed for any environment, this IP65-rated LED fixture offers precise color temperature control, full-spectrum rendering, and consistent wash coverage, powered by a highly efficient RGBMA engine that provides up to 5,474 lumens.

The fixture delivers exceptional color accuracy (CRI 94.9, TLCI 95), 16-bit variable CCT control, and adjustable LED refresh frequency, making it perfect for film, television, and live events. With multiple lens options, DMX/RDM compatibility, and a touch bar encoder for instant adjustments, it’s ready for any production need.

Streamline your lighting setup and discover how the KL PAR IP COMPACT can elevate your next production.

Features</h2

  • 150W RGBMA LED Engine
  • 5,700 Total Fixture Lumen Output (Sphere)
  • Field Replaceable Lenses
  • Stand-Alone Control with Touch Encoder and OLED Display
  • Smooth 16-bit Selectable Dimming Modes and Curves
  • RDM (Remote Device Management)
  • NFC & Aria x2 Wireless Device Management
  • 6.25″ Gel Frame and Four Lenses (10°, 22°, 30°, 55°) Included
  • IP65 Rated

Additional information

Source

150W 6000K RGBMA LED Engine
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
Photometric Data

Total Lumen Output:
5,700 (Integrating Sphere)
TBA (Goniometer)

CRI 94.9

TLCI 95

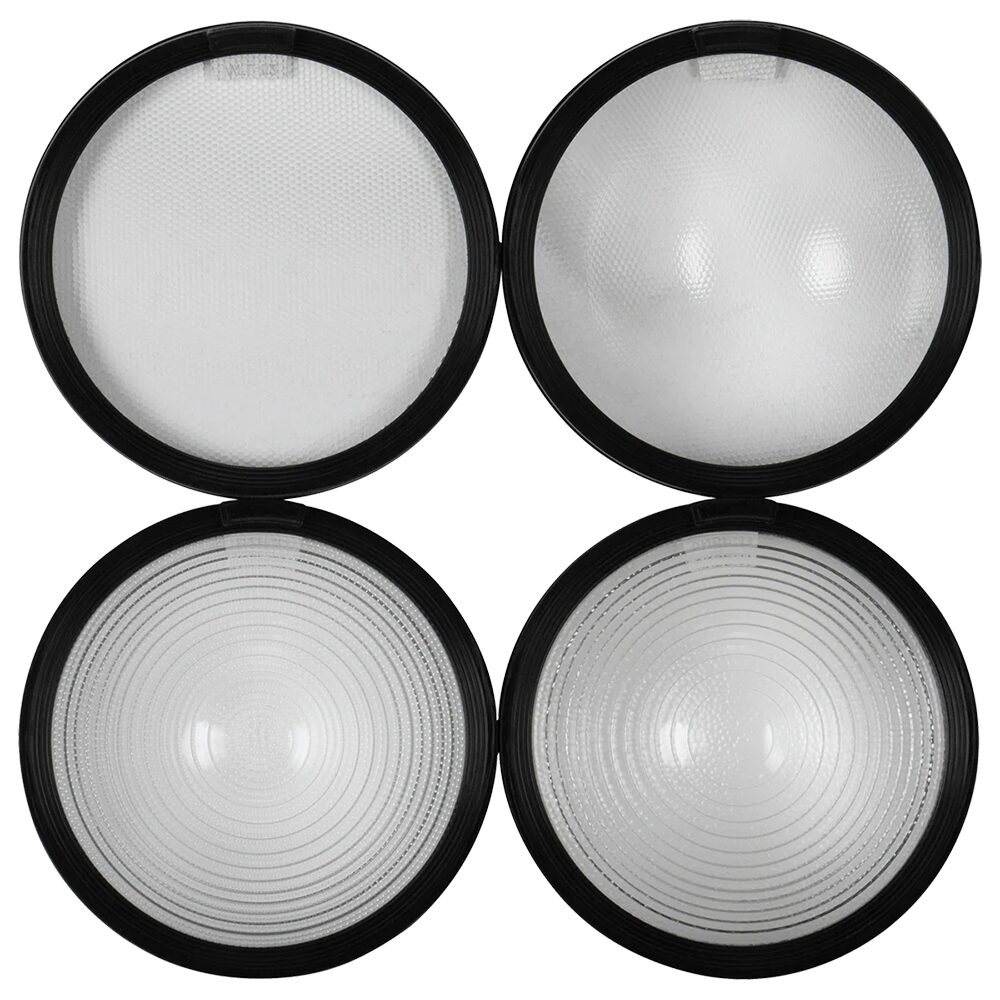

Included Lenses

VNSP (10°)
NSP (22°)
MFL (30°)
WFL (55°)
Effects

Variable Strobe Rate: 1- 20Hz
Dim-to-Warm/ Red Shift Emulation
Variable 16-bit Dimming Modes and Curves
Color

RGBMA Color Array
CMY Emulation
16bit Fully Variable CCT 2400K – 8500K
Green/Magenta Shift
Virtual Gel Swatch Book
Control / Connections

8 DMX Channel Modes (1, 4, 6, 10, 11, 19, 9, 15)
Manual and DMX Controlled Dimmer and Color
Single Touch Bar Encoder
4 Button Control Panel, LED Display
RDM (Remote Device Management)
Aria x2 Wireless Device Management
NFC Configuration

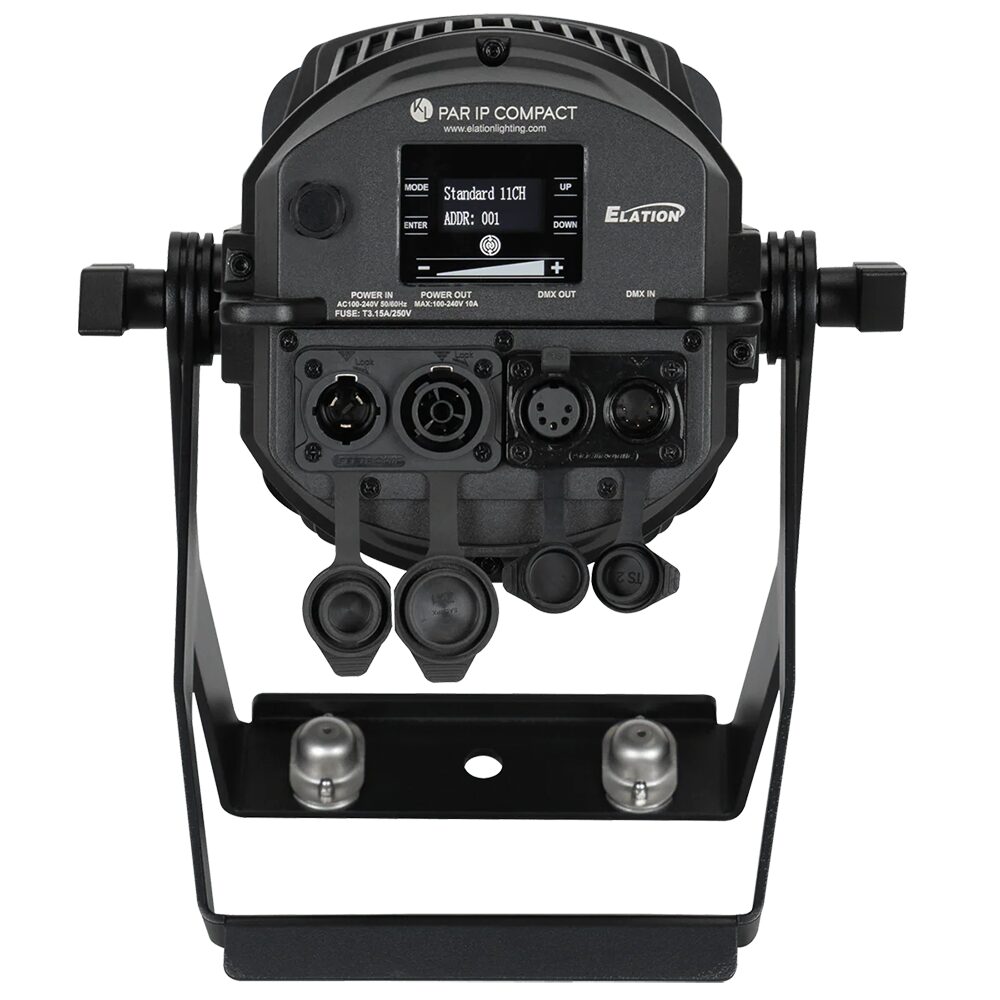

IP65 5pin DMX and IP65 Locking Power Cable In/Out
Size / Weight

Length: 7.2” (183mm)
Length (Yoke 0°): 14.25" (362mm)
Width: 10.1" (257mm)
Height (Fixture Body): 7.2" (183mm)
Height (Yoke 90°): 14.2" (361mm)
Weight: 12.1 lbs (5.5kg)
Electrical / Thermal

AC 100-240V – 50/60Hz
200W Max Power Consumption
Power Thru Capacity: 10A (6 units @115V,12 units @240V)
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 682
Included Items

Gel Frame
Safety Cable
4 Lenses (10°, 22°, 30°, 55°)
IP65 Locking Power Cable
Optional Items

6.25" Barndoors
Omega Bracket
4 Wire Hardwire Installation Plate (HWP404)
2 Wire Hardwire Installation Plate (HWP202)
Approcal / Ratings

CE, cETLus, IP65, FCC, UKCA
