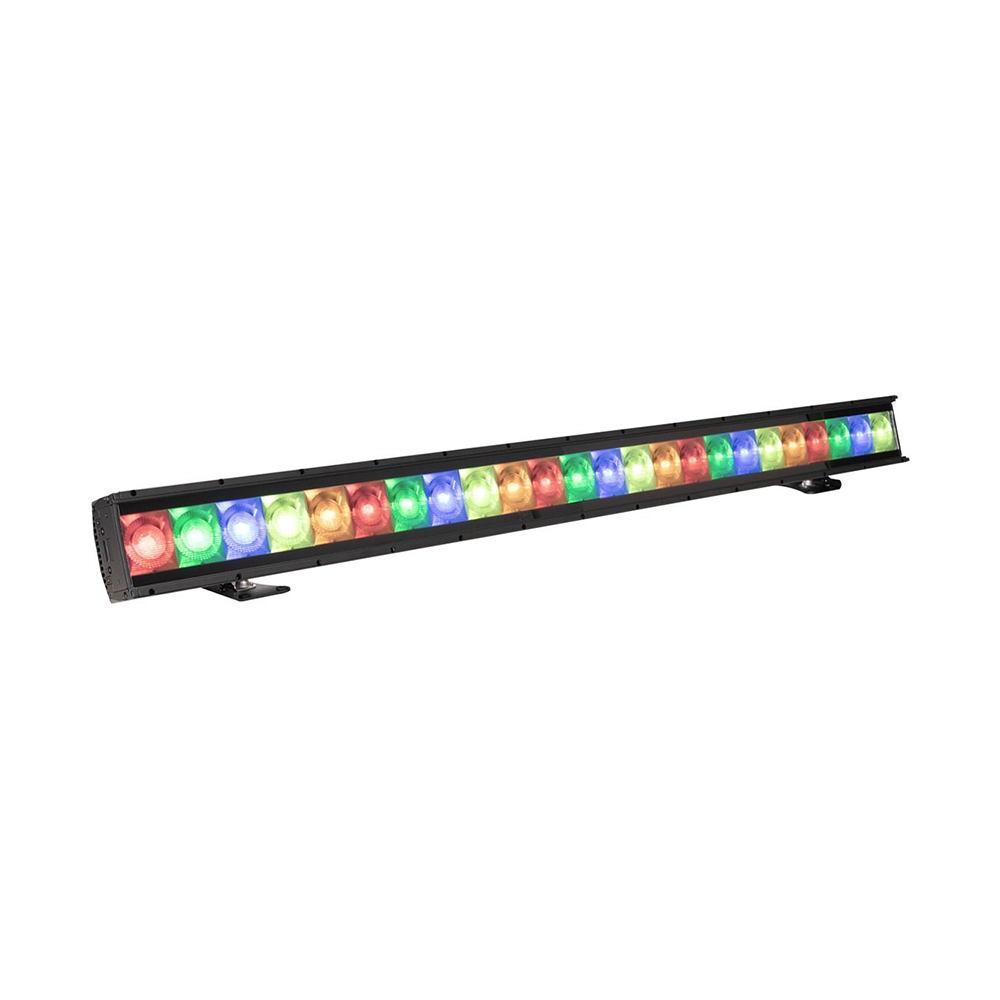

Elation – KL Batten 72

Elation

The KL BATTEN 72 is built for stages and studios that demand rich, full-spectrum color and commanding output. Its advanced RGBMA engine delivers smooth, natural light that blends cleanly across scenery. At the same time, more than 71,250 lumens provide confident, room-filling.

Features

  • (24) 100W RGBMA LED Array
  • 71,347 Total Fixture Lumen Output (Sphere)

    • Full Pixel Control

  • Integrated Lens and Accessory Slots
  • Art-Net & sACN Support
  • Integrated L Track for Flexible Mounting
  • End-to-End Magnetic Alignment System
  • NFC & Aria x2 Wireless Device Management
  • IP65 Rated
SKU: ELA1237000410 Categories: , , ,

Description

The KL BATTEN 72 is built for stages and studios that demand rich, full-spectrum color and commanding output.

Its advanced RGBMA engine delivers smooth, natural light that blends cleanly across scenery. At the same time, more than 71,250 lumens provide confident, room-filling coverage for large cycs, wide sets, and high-impact scenic looks.

A weather-ready housing and integrated L-Track system make installation easy indoors or out, and its advanced control options ensure reliable performance—from subtle color shifts to complex pixel-mapped effects.

For designers who rely on both power and precision, the KL BATTEN 72 delivers the bold, consistent results that anchor any professional lighting design.

Video

Elation Coffee Break | KL Batten Series Explained

Join the Elation Coffee Break as we take an in-depth look at the KL Batten Series—three powerful RGBMA LED battens built on one platform and available in three sizes. Discover how the KL Batten 12, 48, and 72 deliver exceptional brightness, color quality, flexible pixel control, IP65 protection, and versatile mounting options for both indoor and outdoor applications.

Additional information

Source

(24) x 100W RGBMA LEDs
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
Photometric Data

Total Lumen Output:
71,347 (Integrating Sphere)
CRI- 94.9
TLCI- 95
Beam Angle: 82° x 22°
Field Angle: 97° x 53°
Effects

Full Pixel Control
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
Color

RGBMA Color Array
CMY Emulation
16bit Fully Variable CCT 2400K – 8500K
Green/Magenta Shift
Dim-to-Warm Fade
Virtual Gel Swatch Book
Control / Connections

52 DMX Channel Modes (1ch, 3ch, 4ch-A, 4ch-B, 4ch-C, 9ch, 10ch, 14ch, 22ch, 16ch, 6ch, 8ch-A, 8ch-B, 20ch-A, 20ch-B, 32ch, 12ch, 16ch-A, 16ch-B, 40ch, 32ch, 54ch, 24ch, 32ch-A, 32ch-B, 80ch, 56ch, 96ch, 36ch, 48ch-A, 48ch-B, 120ch, 80ch, 142, 72ch, 96ch-A, 96ch-B, 240ch, 152ch, 174ch)
4 Button Control Panel, Color LED Display
RDM (Remote Device Management)
Aria x2 Wireless Device Management
NFC Configuration
IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net & sACN)
IP65 Locking Power Cable In
Size / Weight

Length: 1806mm (71.1")
Width: 148mm (5.8")
Vertical Height: 216mm (8.5”)
Weight: 27.4kg (60.4 lbs)
Electrical / Thermal

AC 100-240V – 50/60Hz
1200W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 4,092
Included Item

Glare Shield
Border Light Filter
IP65 Locking Power Cable
Optional Items

Omega Bracket (Qty 2)
L-Track to M10 Adapter,70mm
L-Track to M10 Adapter, 44.5mm
L Track C-Clamp & Adapter Assembly, 70mm
L Track C-Clamp & Adapter Assembly, 44.5mm
