Elation – KL Batten 48

Elation

Perfect for the grandest stage and the great outdoors, the powerful KL BATTEN 48 delivers over 46,500 lumens of smooth, even light. The RGBMA LED engine and its homogeneous beam produces natural, full-spectrum light, with a high CRI that looks good on stage and in the studio.

Features

  • (16) 100W RGBMA LED Array
  • 46,744 Total Fixture Lumen Output (Sphere)
  • Full Pixel Control
  • Integrated Lens and Accessory Slots
  • Art-Net & sACN Support
  • Integrated L Track for Flexible Mounting
  • End-to-End Magnetic Alignment System
  • NFC & Aria x2 Wireless Device Management
  • IP65 Rated
SKU: ELA1237000409 Categories: , , ,

Description

Perfect for the grandest stage and the great outdoors, the powerful KL BATTEN 48 delivers over 46,500 lumens of smooth, even light. The RGBMA LED engine and its homogeneous beam produces natural, full-spectrum light, with a high CRI that looks good on stage and in the studio.

Its adaptable L-Track design makes mounting simple, while seamless control options and quiet cooling ensure professional performance in any environment.

Paired with IP-65 protection, it’s the dependable, full-spectrum workhorse that keeps creative intent intact from rehearsal to showtime.

Video

Elation Coffee Break | KL Batten Series Explained

Join the Elation Coffee Break as we take an in-depth look at the KL Batten Series—three powerful RGBMA LED battens built on one platform and available in three sizes. Discover how the KL Batten 12, 48, and 72 deliver exceptional brightness, color quality, flexible pixel control, IP65 protection, and versatile mounting options for both indoor and outdoor applications.

Additional information

Source

(16) x 100W RGBMA LEDs
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
Photometric Data

Total Lumen Output:
46,744 (Integrating Sphere)
CRI- 94.9
TLCI- 95
Beam Angle: 62° x 21°
Field Angle: 79° x 51°
Effects

Full Pixel Control
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
Color

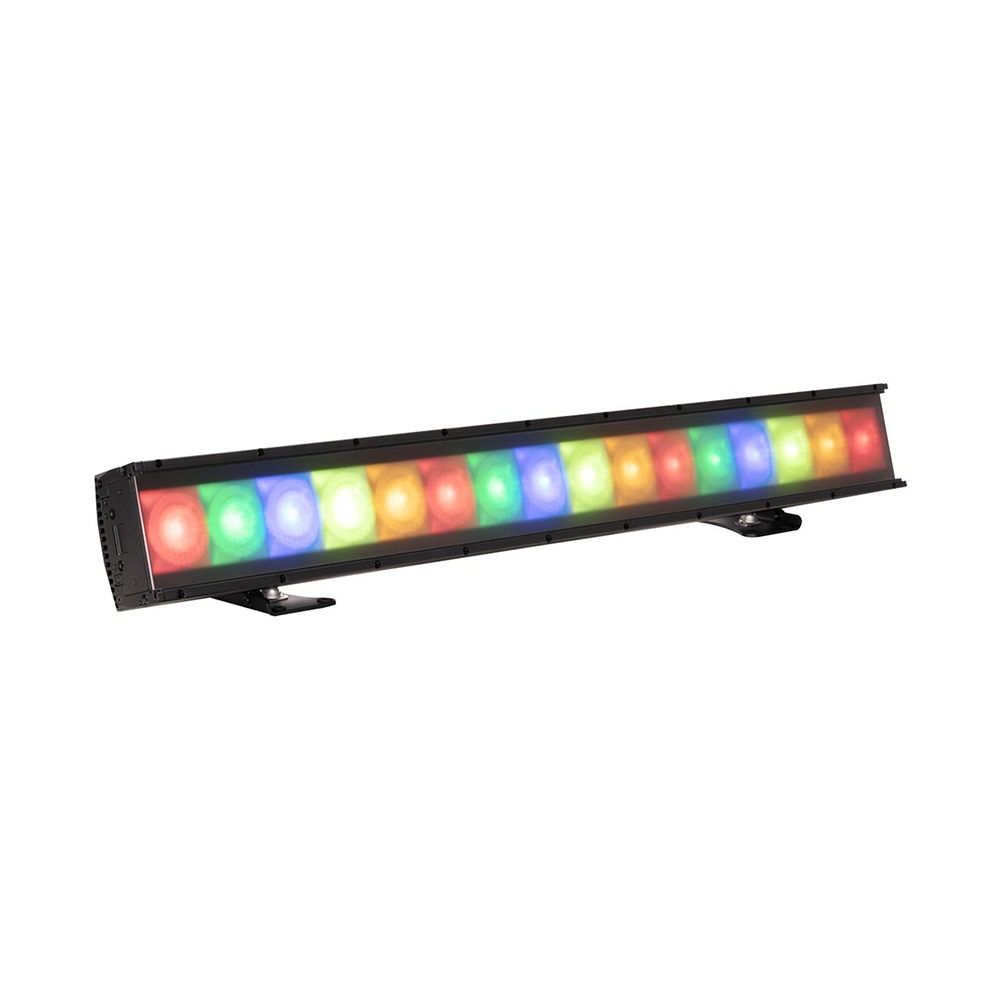

RGBMA Color Array
CMY Emulation
16bit Fully Variable CCT 2400K – 8500K
Green/Magenta Shift
Dim-to-Warm Fade
Virtual Gel Swatch Book
Control / Connections

34 DMX Channel Modes (1ch, 3ch, 4ch-A, 4ch-B, 4ch-C, 9ch, 10ch, 14ch, 22ch, 16ch, 6ch, 8ch-A, 8ch-B, 20ch-A, 20ch-B, 32ch, 12ch, 16ch-A, 16ch-B, 40ch, 32ch, 54ch, 24ch, 32ch-A, 32ch-B, 80ch, 56ch, 96ch, 48ch, 64ch-A, 64ch-B, 160ch, 104ch, 186ch)
4 Button Control Panel, Color LED Display
RDM (Remote Device Management)
Aria x2 Wireless Device Management
NFC Configuration
IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net & sACN)
IP65 Locking Power Cable In/Out
Size / Weight

Length: 1212mm (47.7")
Width: 148mm (5.8")
Vertical Height: 216mm (8.5”)
Weight: 19.5kg (43 lbs)
Electrical / Thermal

AC 100-240V – 50/60Hz
800W Max Power Consumption
Power Thru Capacity: 4A ( 0 units @110V; 1 unit @240V)
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 2,728
Included Item

Glare Shield
Border Light Filter
IP65 Locking Power Cable
Optional Items

Omega Bracket (Qty 2)
L-Track to M10 Adapter,70mm
L-Track to M10 Adapter, 44.5mm
L Track C-Clamp & Adapter Assembly, 70mm
L Track C-Clamp & Adapter Assembly, 44.5mm
