Elation – KL Batten 12

Elation

Delivering rich, full-spectrum color and over 10,500 lumens of output, the KL BATTEN 12 brings natural, full-spectrum light to stages, studios, and the outdoors—all in a compact, durable design. Built for designers who demand professional color and powerful output, the KL.

Features

  • (4) 100W RGBMA LED Array
  • 10,981 Total Fixture Lumen Output (Sphere)
  • Full Pixel Control
  • Integrated Lens and Accessory Slots
  • Art-Net & sACN Support
  • Integrated L Track for Flexible Mounting
  • End-to-End Magnetic Alignment System
  • NFC & Aria x2 Wireless Device Management
  • IP65 Rated
SKU: ELA1237000408 Categories: , , ,

Description

Delivering rich, full-spectrum color and over 10,500 lumens of output, the KL BATTEN 12 brings natural, full-spectrum light to stages, studios, and the outdoors—all in a compact, durable design.

Built for designers who demand professional color and powerful output, the KL BATTEN 12 provides homogeneous, true-to-life color via RGBMA LED engine with high CRI that’s natural on camera and on stage, producing a smooth, even field.

An IP-65 rating means it can be used nearly anywhere. Its quiet operation, intuitive control, and flexible mounting options make it a versatile, reliable, and colorful addition to any rig.

Video

Elation Coffee Break | KL Batten Series Explained

Join the Elation Coffee Break as we take an in-depth look at the KL Batten Series—three powerful RGBMA LED battens built on one platform and available in three sizes. Discover how the KL Batten 12, 48, and 72 deliver exceptional brightness, color quality, flexible pixel control, IP65 protection, and versatile mounting options for both indoor and outdoor applications.

Additional information

Source

(4) x 100W RGBMA LEDs
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
Photometric Data

Total Lumen Output:
10,981 (Integrating Sphere)
CRI- 94.9
TLCI- 95
Beam Angle: 22° x 20°
Field Angle: 44° x 42°
Effects

Full Pixel Control
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
Color

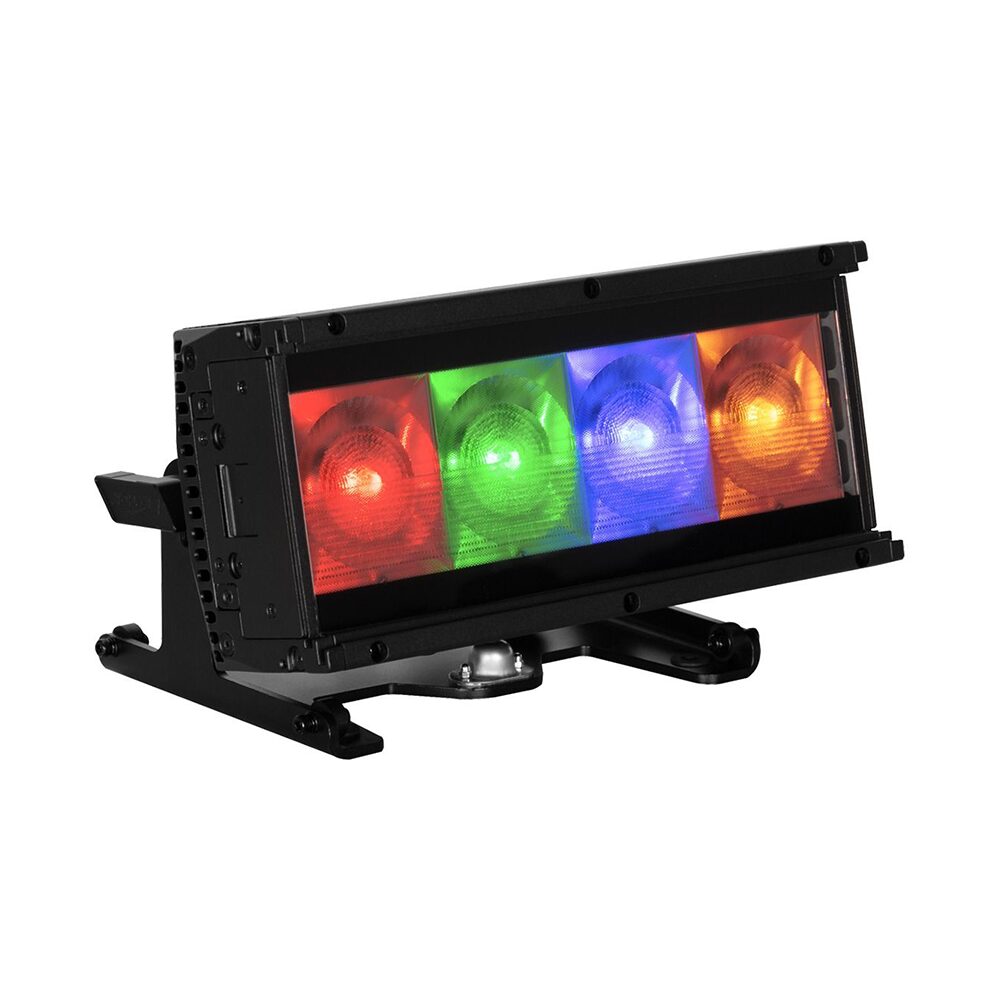

RGBMA Color Array
CMY Emulation
16bit Fully Variable CCT 2400K – 8500K
Green/Magenta Shift
Dim-to-Warm Fade
Virtual Gel Swatch Book
Control / Connections

22 DMX Channel Modes (1ch, 3ch, 4ch-A, 4ch-B, 4ch-C, 9ch, 10ch, 14ch, 22ch, 16ch, 6ch, 8ch-A, 8ch-B, 20ch-A, 20ch-B, 32ch, 12ch, 16ch-A, 16ch-B, 40ch, 32ch, 54ch)

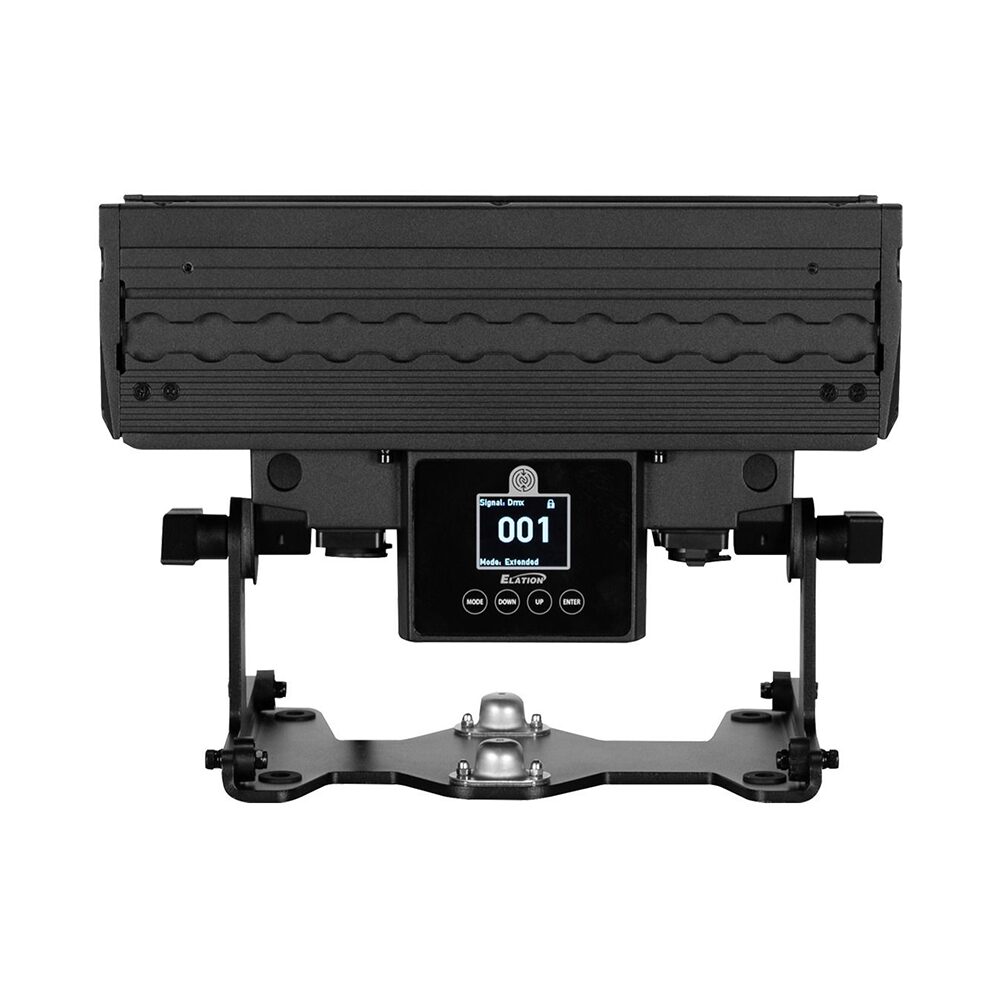

4 Button Control Panel, Color LED Display
RDM (Remote Device Management)
Aria x2 Wireless Device Management
NFC Configuration
IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net & sACN)
IP65 Locking Power Cable In/Out
Size / Weight

Length: 320mm (12.6")
Width: 148mm (5.8")
Vertical Height: 216mm (8.5”)
Weight: 6.65kg (14.7 lbs)
Electrical / Thermal

AC 100-240V – 50/60Hz
200W Max Power Consumption
Power Thru Capacity: 11A ( 6 units @110V; 13 units @240V)
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 682
Included Item

Glare Shield
Border Light Filter
IP65 Locking Power Cable
Optional Items

Omega Bracket (Qty 1)
L-Track to M10 Adapter,70mm
L-Track to M10 Adapter, 44.5mm
L Track C-Clamp & Adapter Assembly, 70mm
L Track C-Clamp & Adapter Assembly, 44.5mm

Downloads

Data Sheet Download
User Guide Download
