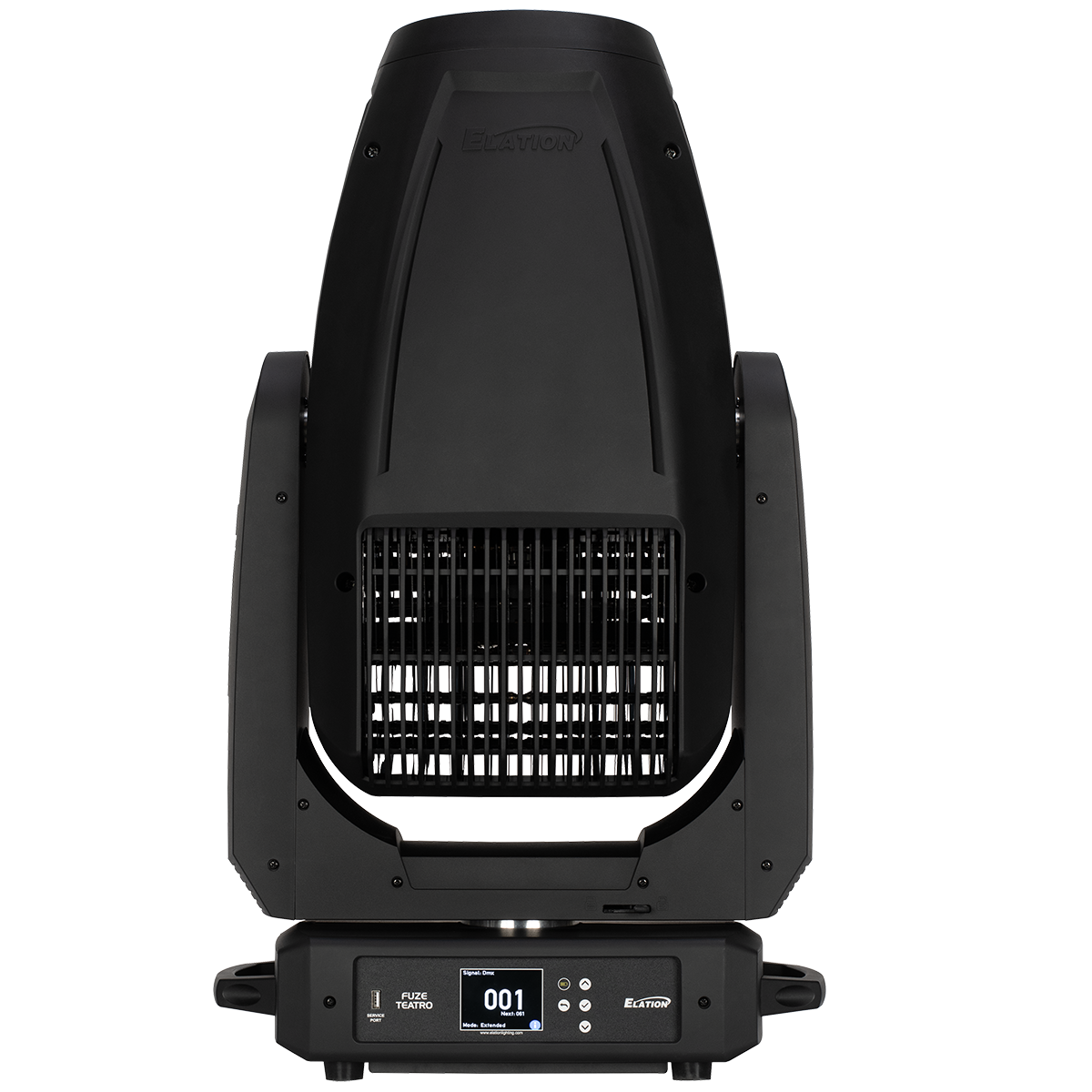

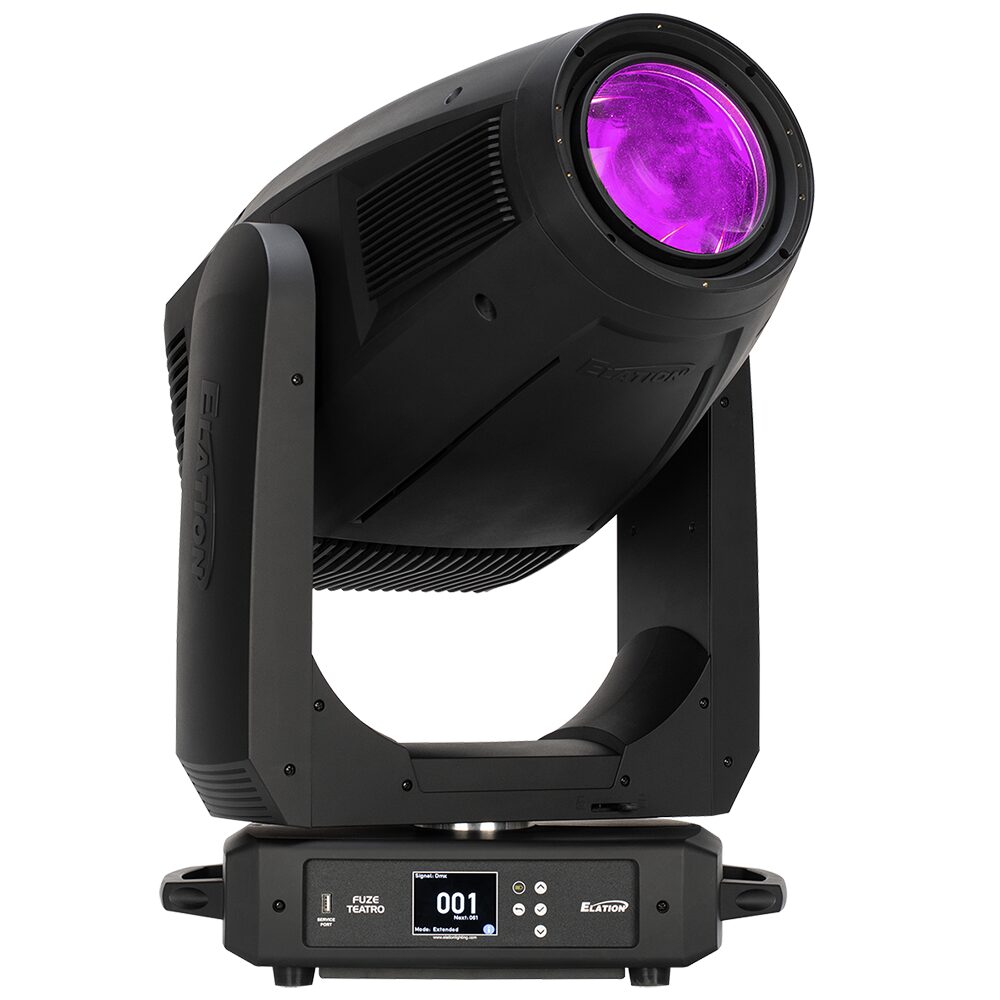

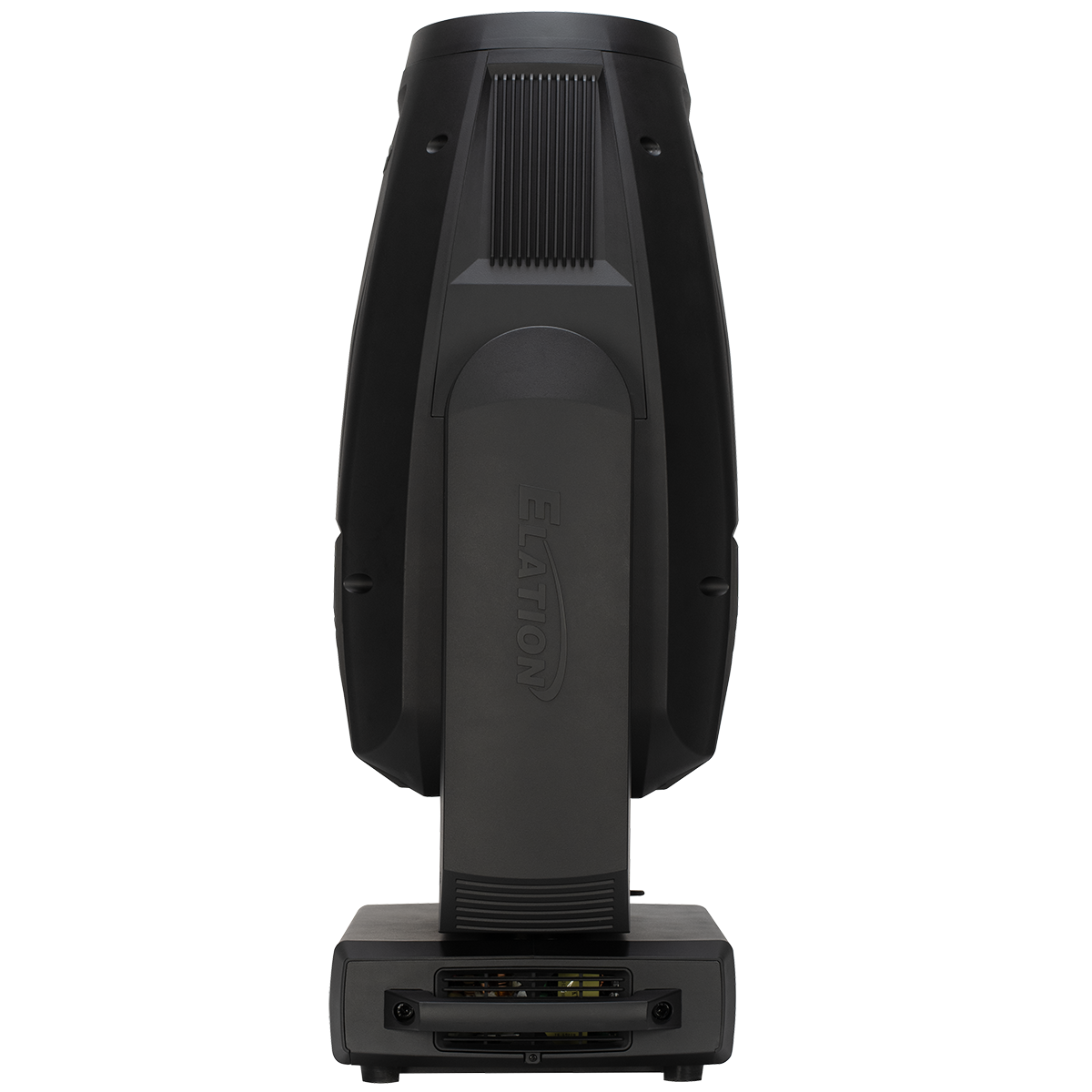

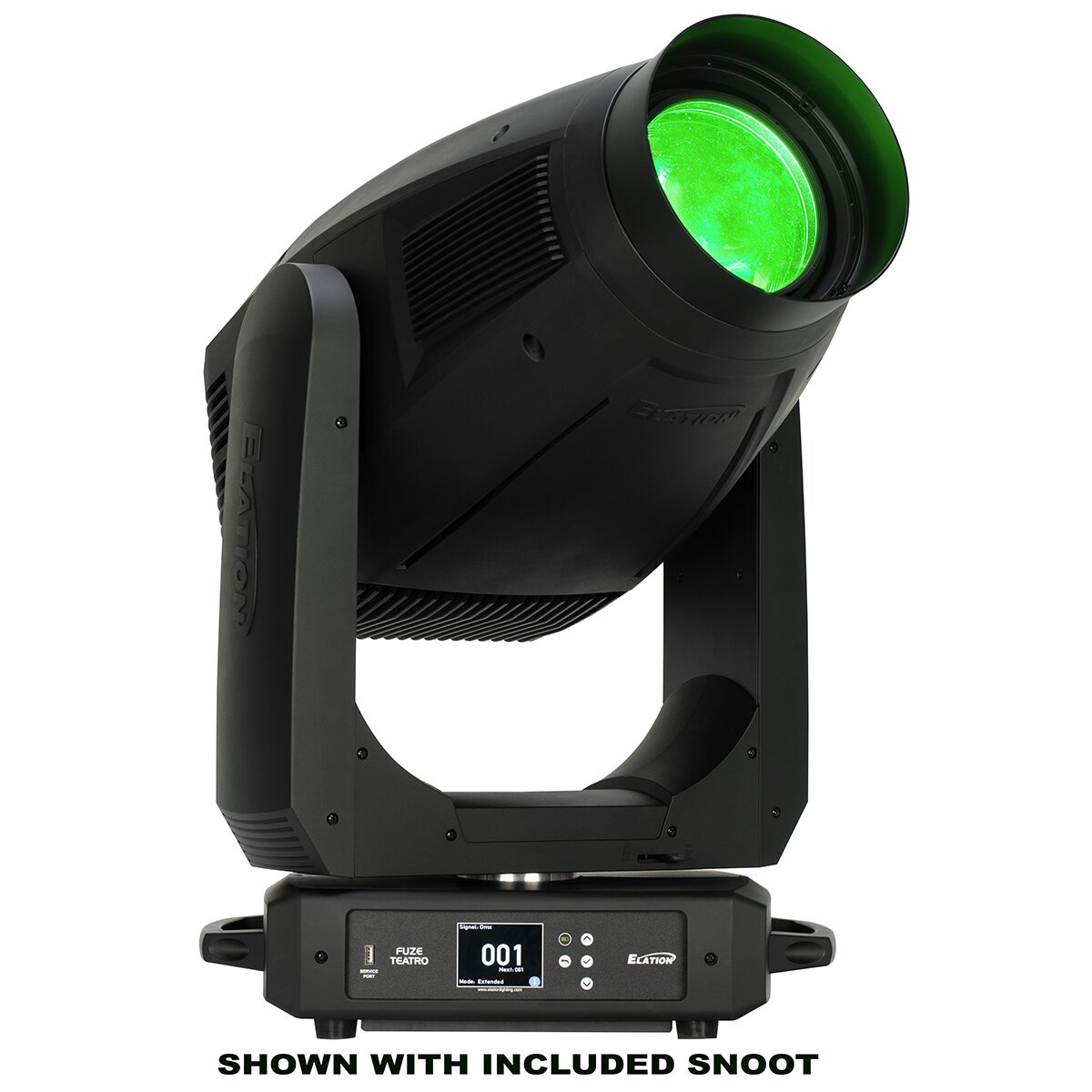

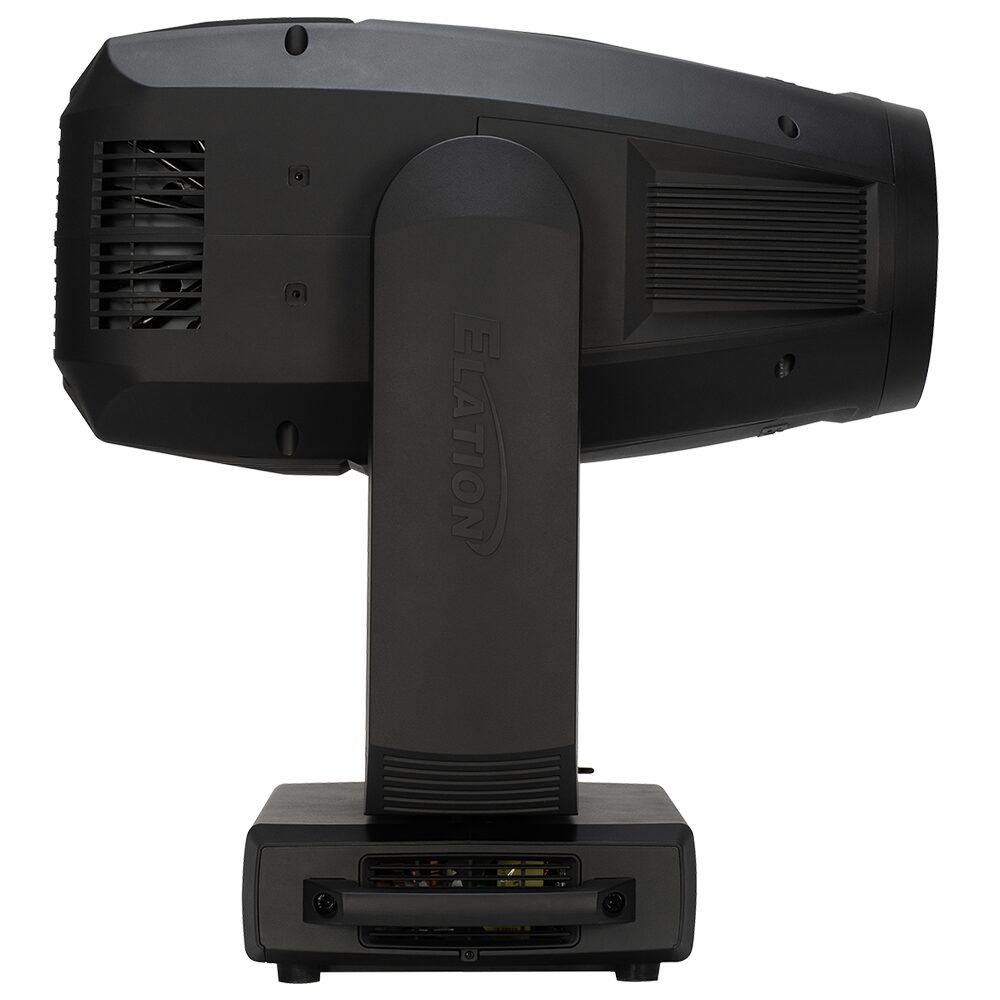

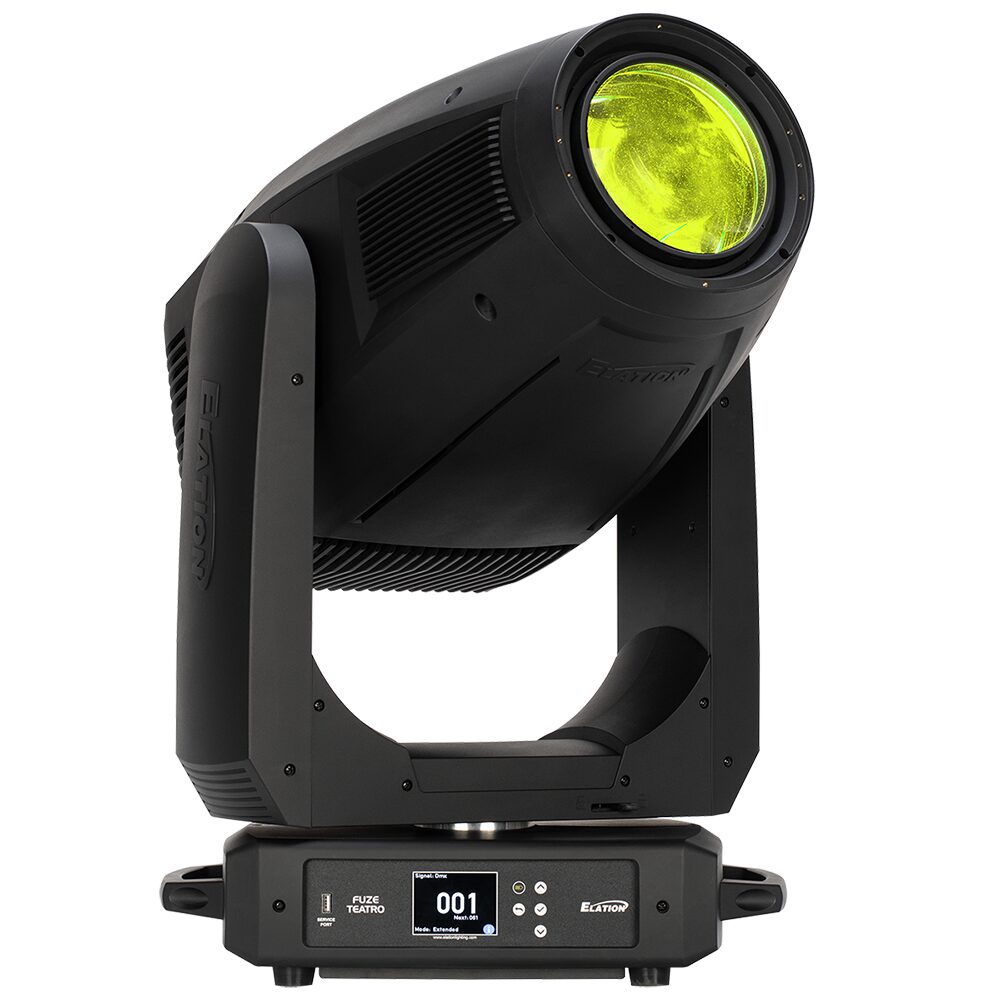

Elation – FUZE TEATRO

Elation

Silent fanless full spectrum automated LED framing fixture designed for theater, 480W Full Spectrum RGBMA LED Fanless Framing Profile Fixture

SKU: ELA1237000274 Categories: , ,

Description

The FUZE TEATRO™ is a silent fanless full spectrum automated LED framing fixture designed for theater, television and a wide array of other precision lighting applications.

The 95 CRI engine utilizes an 480W 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction and dynamic whites while delivering a powerful output of up to 15,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY or RGB emulation provide the designer with immediate access to the impressive LED color array.

The FUZE TEATRO is designed for any application where a silent fully automated framing fixture with outstanding and compelling color range and quality is required. The fixtures enhanced optical design and lens coatings ensure precise and razor-sharp projections, removing all unwanted color shifting and aberrations in all zoom, focus, or framing positions.

Dual rotating gobo wheels, animation wheel, dual frost, prism and iris round out its comprehensive feature set in this quiet and extremely powerful automated framing fixture.

Features

  • Convection cooled fanless design
  • Ultra Quiet and High Performance Modes
  • Full Spectrum 480W RGBMA LED Engine
  • Precise dynamic whites from 2400 – 8500K
  • Instant color changes, Natural color transitions
  • Rich and intense primary colors
  • Dual Rotating Gobos plus Animation Wheel
  • Full Blackout Framing System
  • Iris, Prism, and Dual Frost
  • Wide Zoom Range from 7° to 50°

Video

Elation Lighting – Fuze Teatro™

Embrace your creative spirit with Elation’s whisper-quiet #FuzeTeatro™, utilizing an impressive 95 CRI, a compelling color range, and a powerful output of up to 15,000 lumens. With a 19 dB(A) the Fuze Teatro™ is designed for any application where a silent fully automated framing fixture is required.

Additional information

Source

480W 6,500K RGBMA LED Engine
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.

Photometric Data

Total Lumen Output
14890 (Integrating Sphere)
13100 (Goniometer)
CRI 95.1

Zoom Range 7° – 50°
Beam Angle 6.8° – 50.5°
Field Angle 8.5° – 54.7°

Acoustical Data

A-weighted sound power level
9dB(A) – Intensity 0%
19dB(A) – Intensity 100%
See Acoustic Test Report for additional fixture conditions

Effects

Motorized Zoom
4 Rotating Full Blackout Framing Blades, +/- 60° Index
Dual Variable Frost Filter (Medium/ Wash)
4 Facet Round, 4 Facet Linear Prism
Motorized Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Pan Angle: 540° / 630°
Tilt Angle: 250°
Motionless Reset

Color

RGBMA Color Array
CMY Emulation
Variable CCT 2400K – 8500K
Green/Magenta Shift
Virtual Gel Swatch Book

Gobos

2x 6 Rotating / Indexing Interchangeable Glass Gobos
Animation Wheel

Control / Connections

16-bit Pan, Tilt, and Dimming Control

DMX Adjustable LED Frequency
DMX, RDM, Art-NET, sACN Protocol Support
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
16 Bit Resolution Adjustable Movement
5pin DMX In/Out
Locking Ethernet In/Out

IP65 Locking Power In/Out

Size / Weight

Length: 12.0 in (306mm)
Width: 18.2 in (462mm)
Height: 30.8 in (783mm)
Weight: 79.4 lbs. (36kg)

Electrical / Thermal

AC 100-240V – 50/60Hz
725W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
BTU/hr (+/- 10%) 2772.25

Approvals / Ratings

CE, cETLus, FCC, IP20
