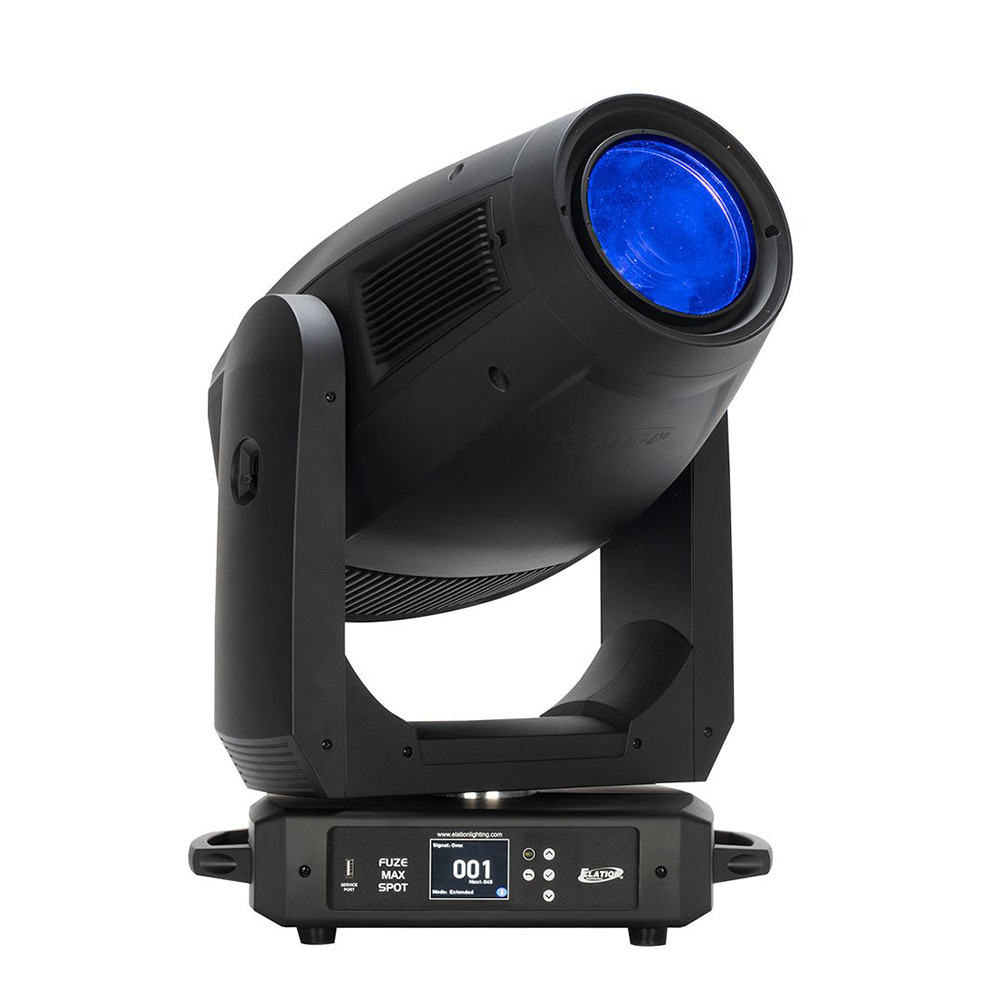

Elation_Fuze-Max-Spot_Front-right-of-fixture-light-onElation_Fuze-Max-Spot_Front-right-of-fixture-light-on

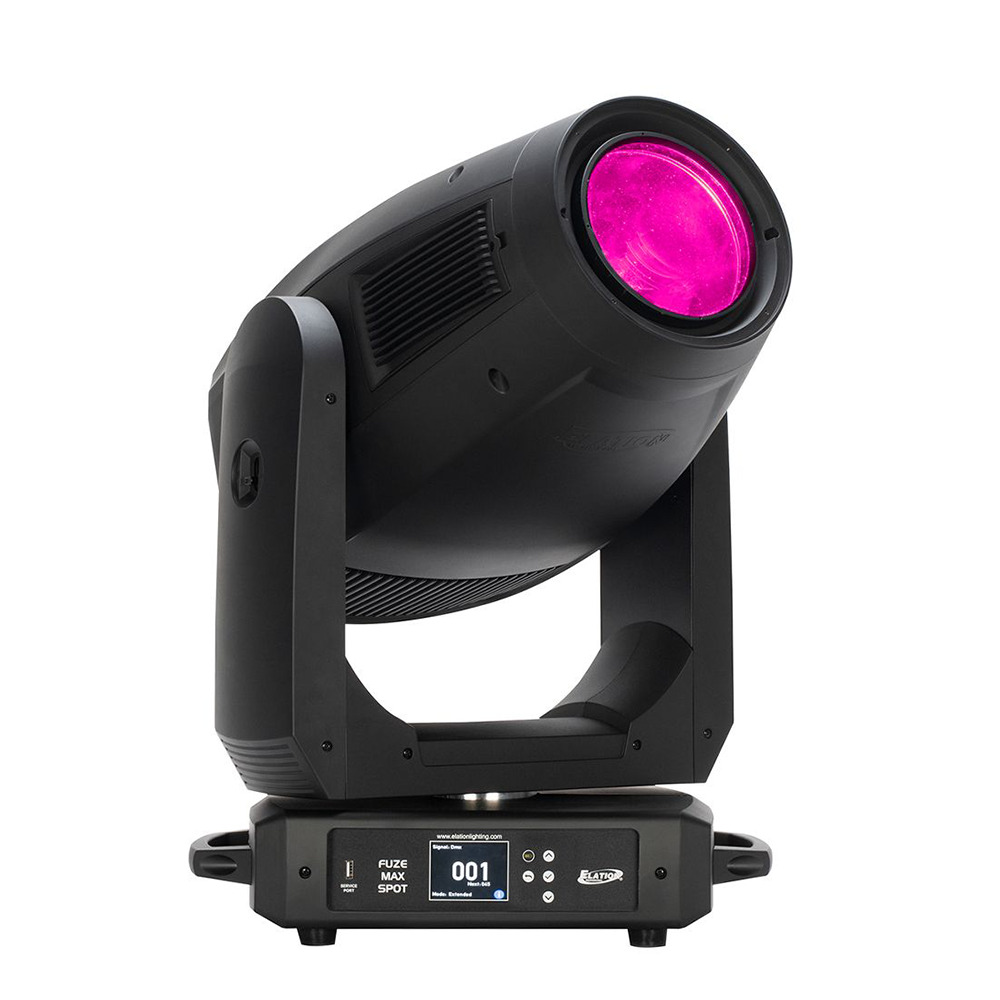

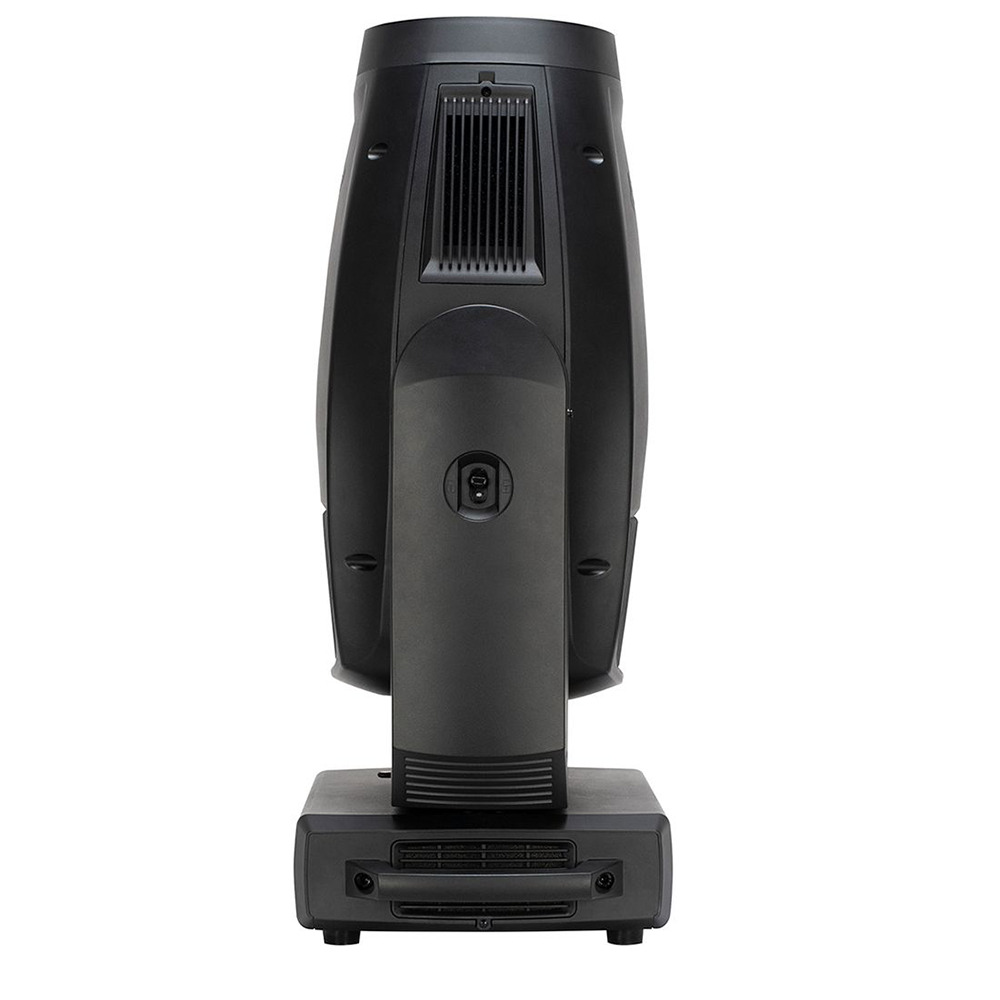

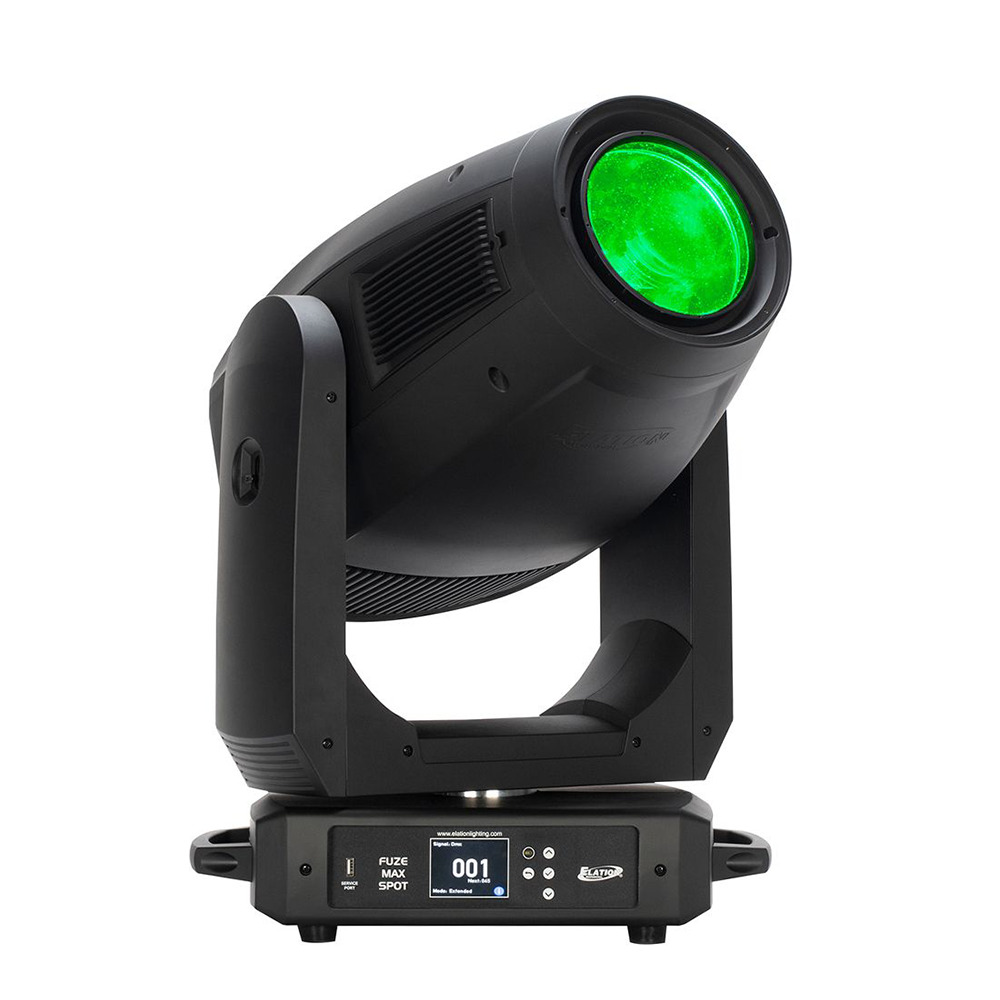

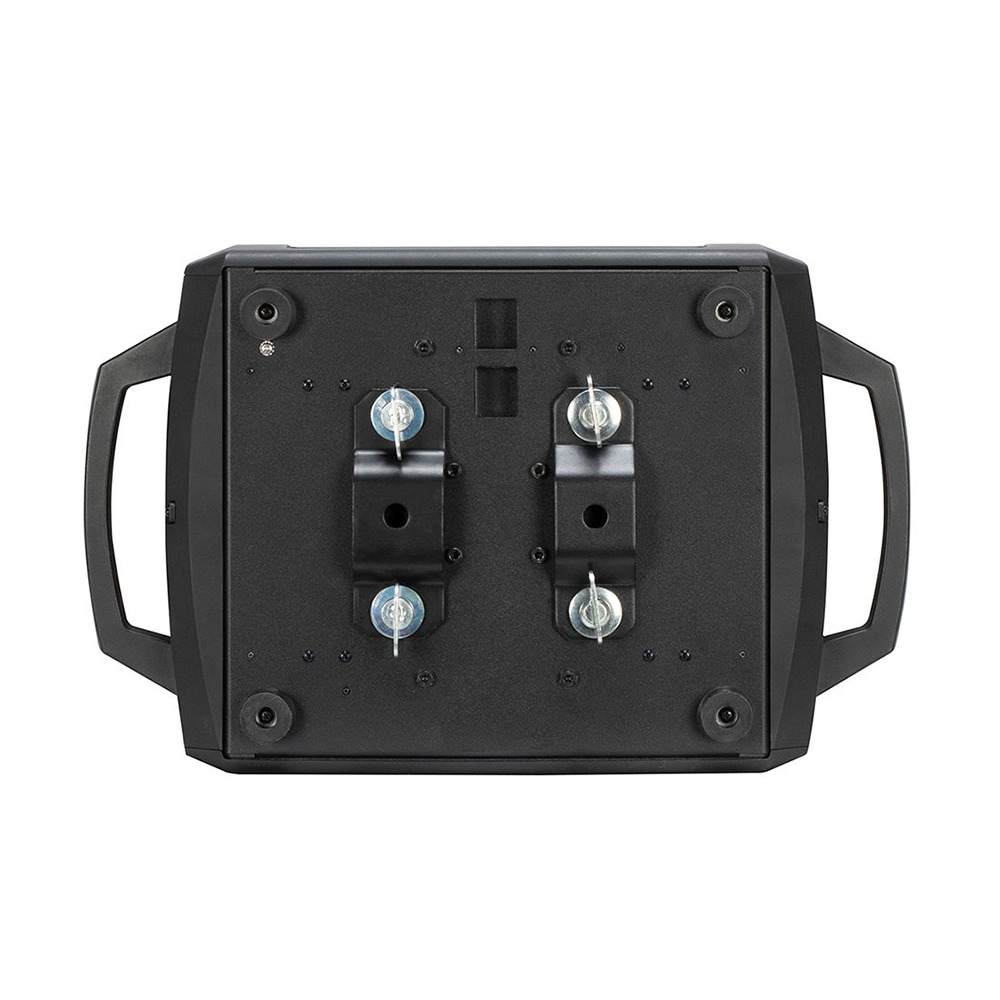

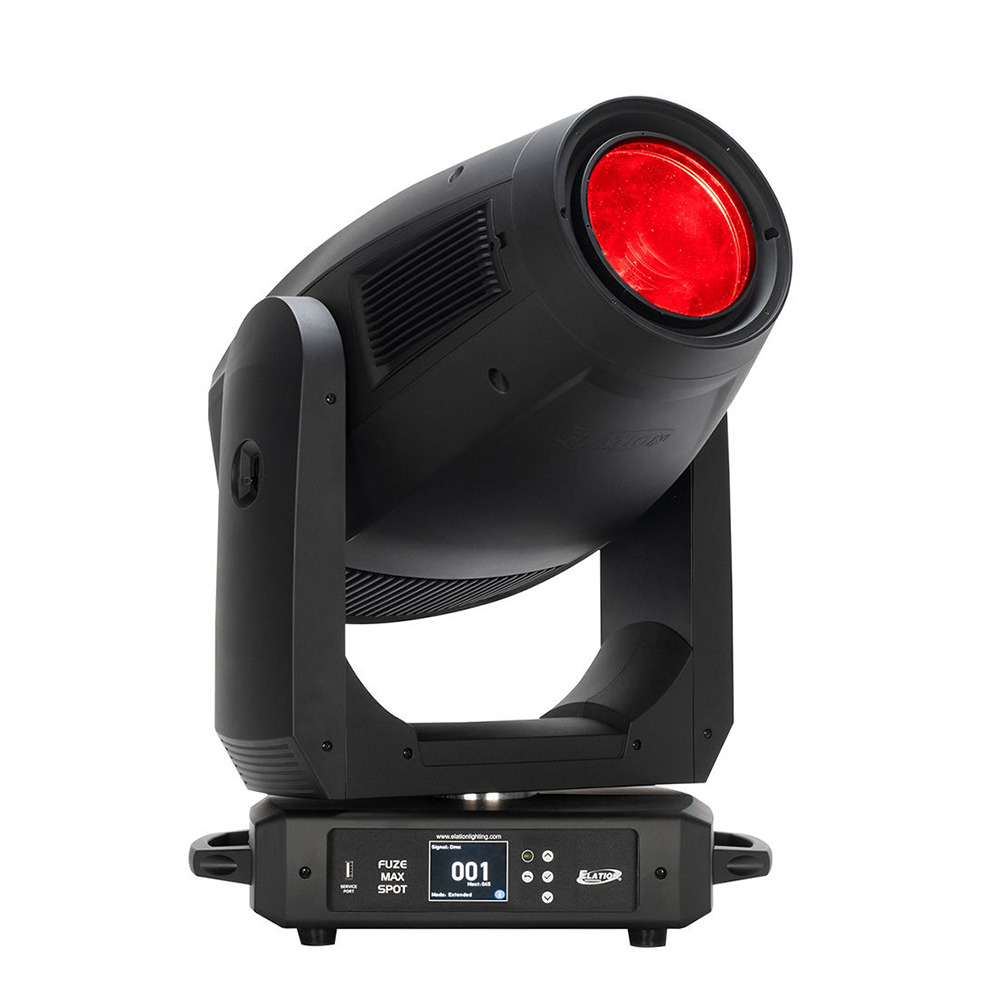

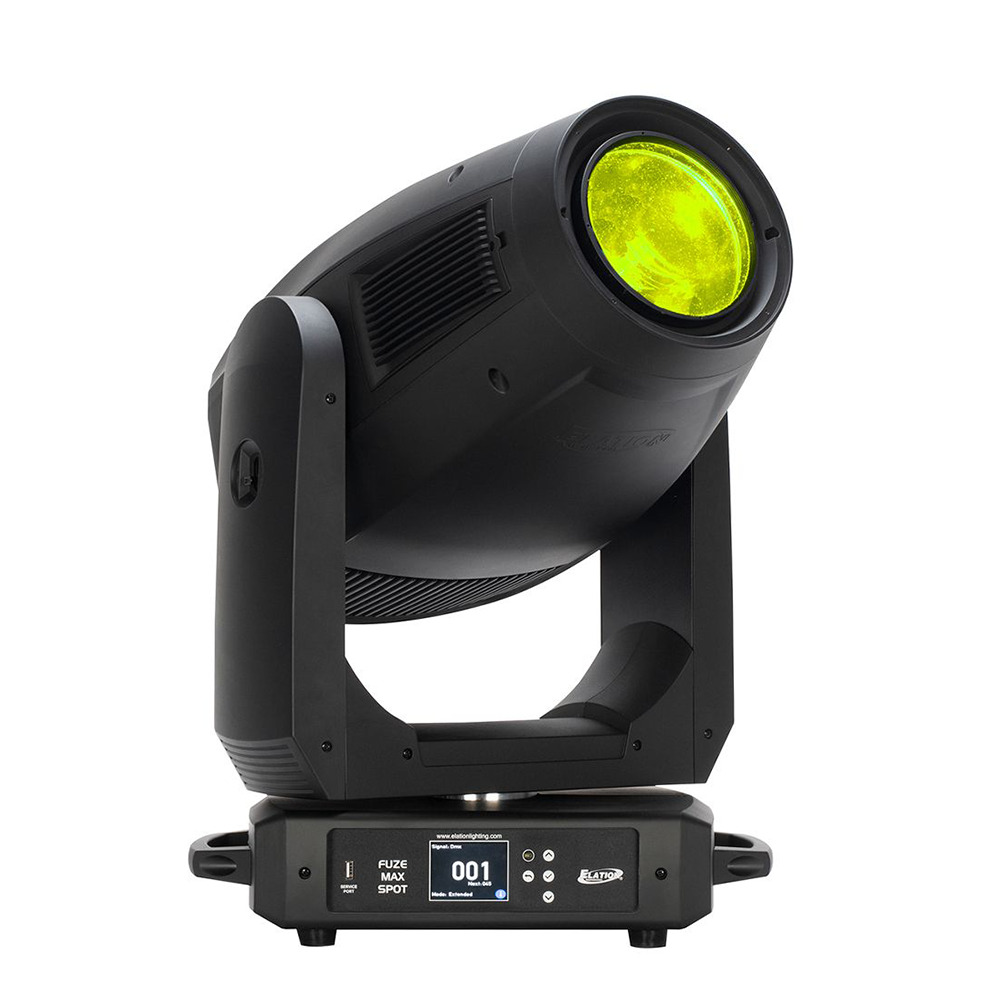

Elation – Fuze Max Spot

Elation

800W Full Spectrum RGBMA LED Spot Fixture

SKU: ELA1237000257 Categories: , ,

Description

The FUZE MAX SPOT™ is a full spectrum automated LED Spot fixture designed for theater, television and a wide array of other precision lighting applications. The 92 CRI engine utilizes a 800W 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction and dynamic whites while delivering a powerful output of over 21,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.

The FUZE MAX SPOT is designed for any application where fully automated spot fixture with outstanding and compelling color range and quality is required. Two rotating gobo wheels, one fixed gobo wheel, animation wheel, dual frost, prism and iris round out its comprehensive feature set in this quiet and extremely powerful automated spot fixture.

Features

  • Full Spectrum 800W RGBMA LED Engine
  • Precise dynamic whites from 2,400 – 8,500K
  • Instant color changes, Natural color transitions
  • Rich and intense primary colors
  • Dual Rotating and Fixed Gobos plus Animation Wheel
  • Iris, Prism, and Dual Frost
  • Wide Zoom Range from 7° to 53°
  • Large 140mm front aperture

Video

Elation Professional – FUZE MAX PROFILE™

The 92 CRI engine utilizes a 800W 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction and dynamic whites while delivering a powerful output of over 21,000 lumens.

Additional information

Source

800W 6,500K RGBMA LED Engine
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

Photometric Data

21,000 Total Lumen Output
CRI 92
Zoom Range 7° – 53°
Beam Angle 6.6° – 50.3°
Field Angle 7.8° – 55°

Effects

Motorized Zoom
Dual Variable Frost Filter (Medium/ Wash)
4 Facet Round, 4 Facet Linear Prism
Motorized Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Pan Angle: 540° / 630°
Tilt Angle: 250°

Colour

RGBMA Color Array
CMY Emulation
Variable CCT 2400K – 8500K
Green/Magenta Shift
Virtual Gel Swatch Book

Gobos

2x 6 Rotating / Indexing Interchangeable Glass Gobos
1x 7 Fixed Glass Gobo
Animation Wheel

Control / Connections

4 DMX Channel Modes (RGBMA 34/44) (CMY 32/40)
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM, Art-NET, sACN Protocol Support

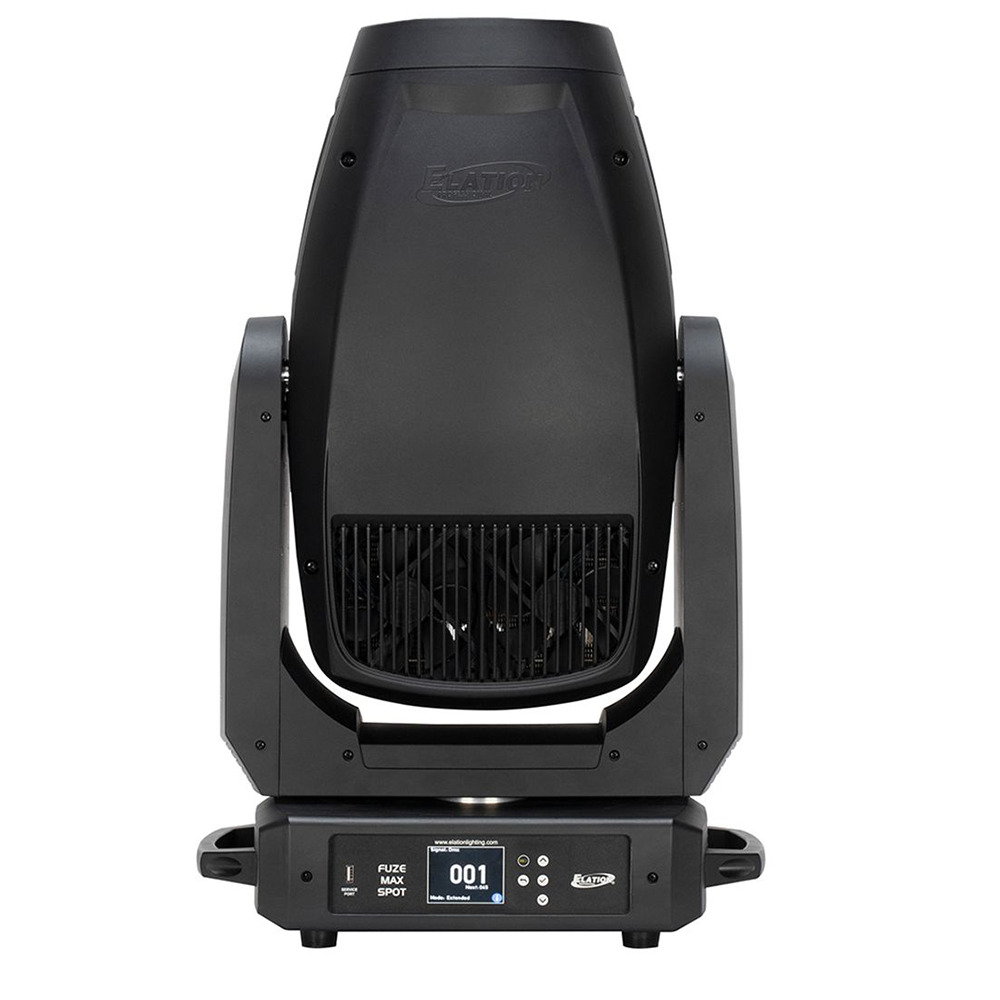

4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
16 Bit Resolution Adjustable Movement
5pin DMX In/Out
Locking Ethernet In/Out
IP65 Locking Power Cable In
With Wired Digital Communication Network

Size / Weight

Length: 462mm (18.19”)
Width: 540mm (21.26")
Vertical Height: 590mm (23.2")

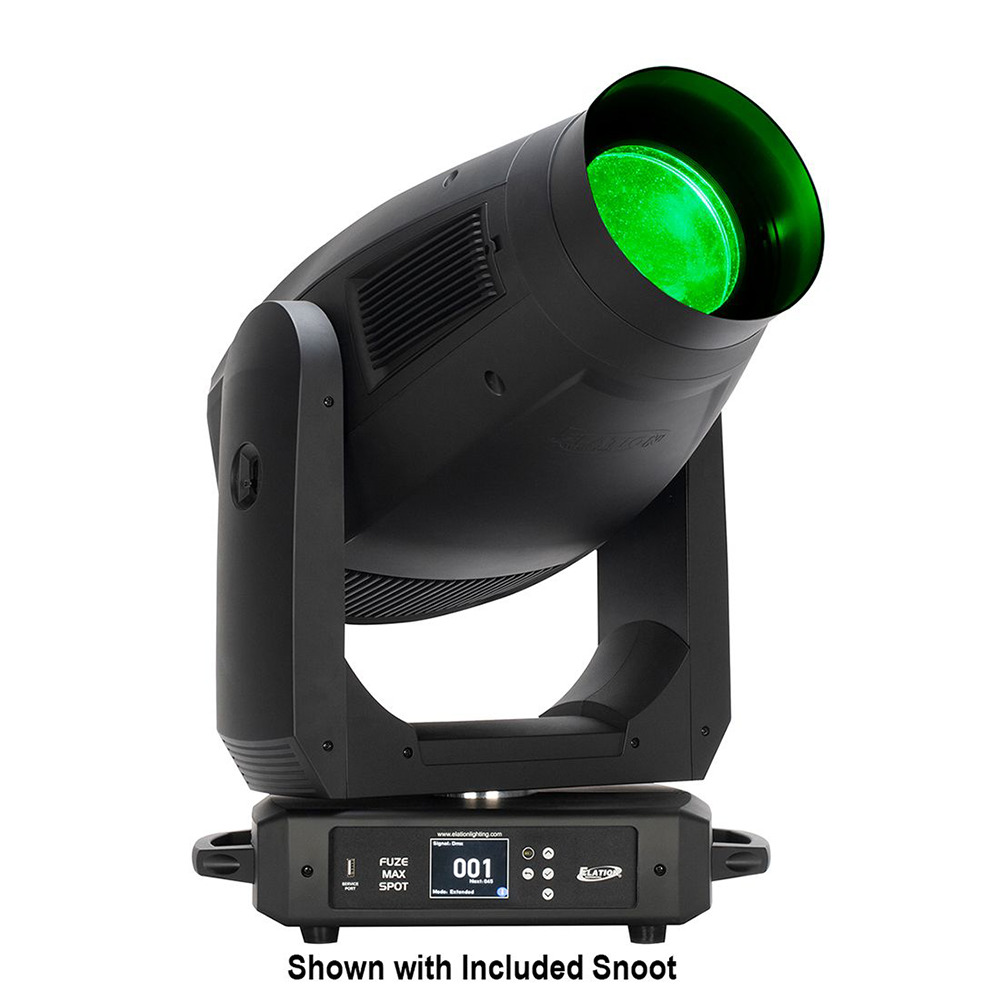

Vertical Heigh with Snoot: 771mm (30.4")
Center Spacing (No Snoot): 662mm (26.1")
Center Spacing (With Snoot): 757mm (29.8")
Weight: 34.5kg (76.2 lbs.)

Electrical / Thermal

AC 100-240V – 50/60Hz
1214W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 3839.66

Downloads

Data Sheet Download
User Guide Download
