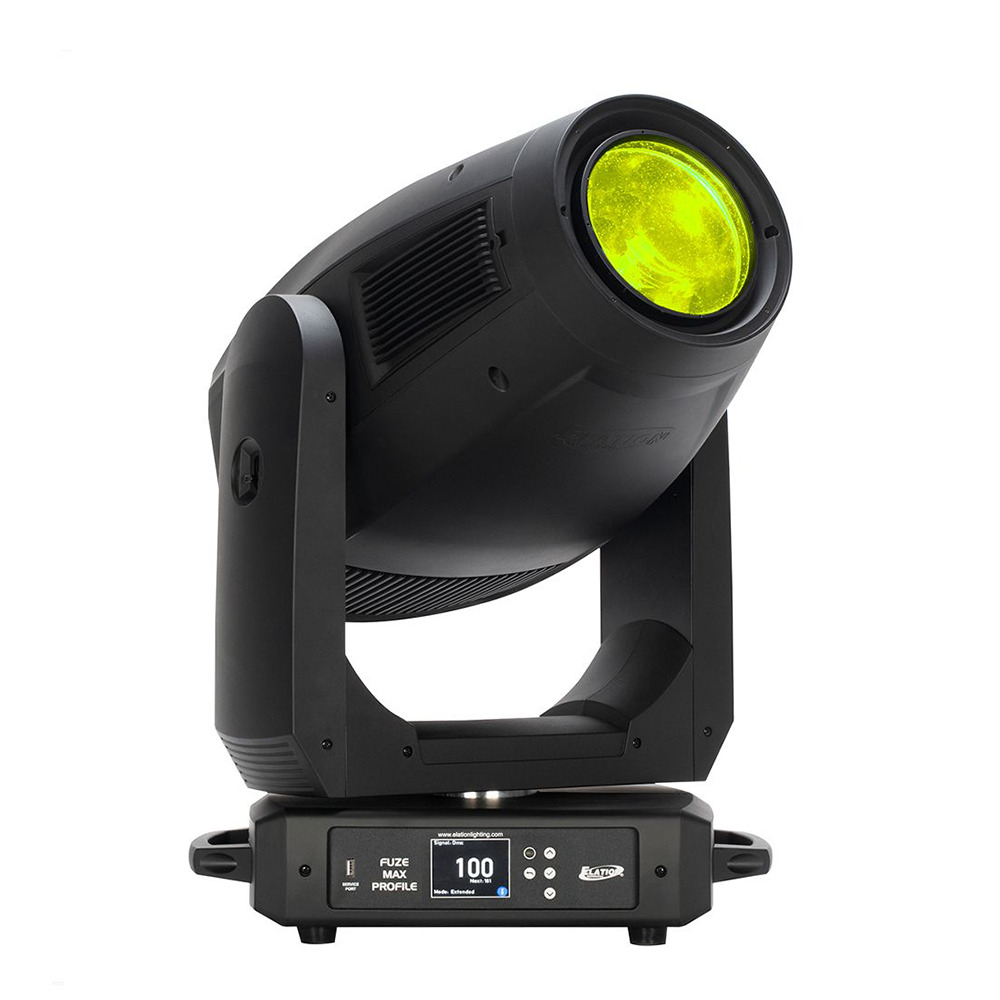

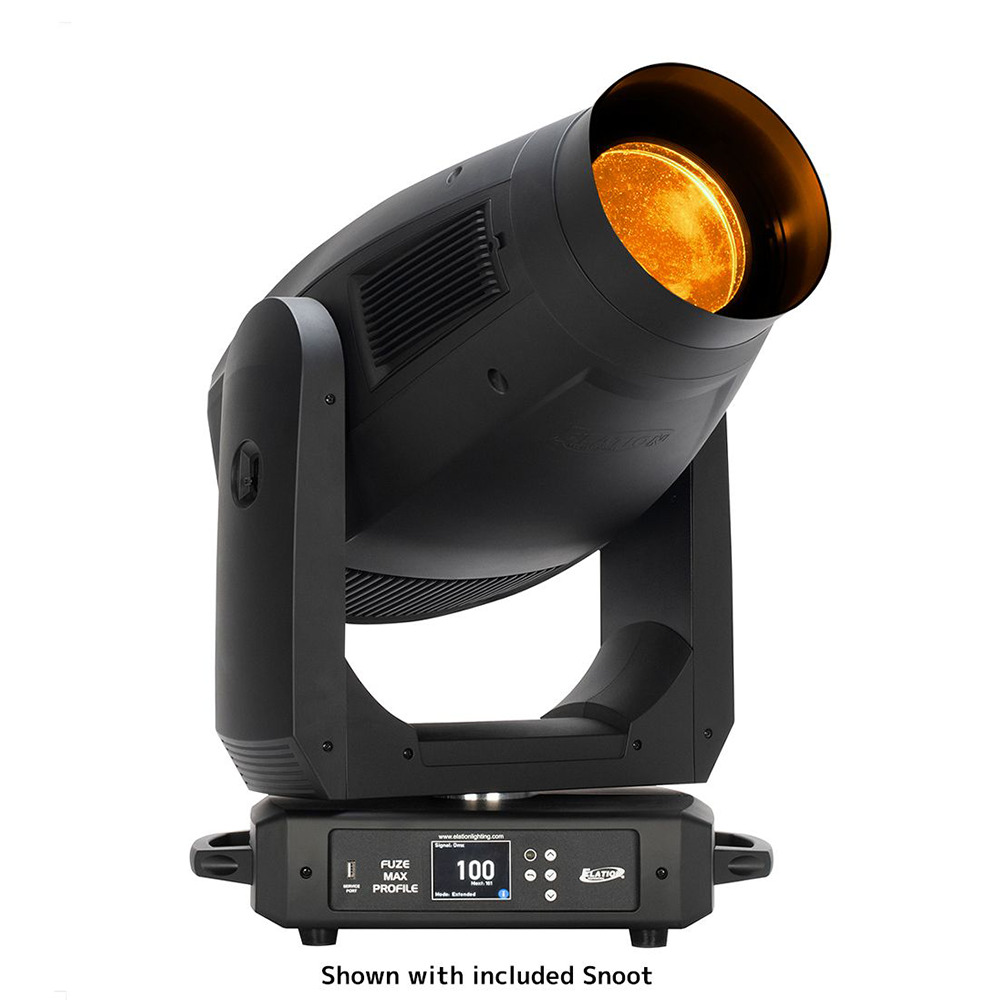

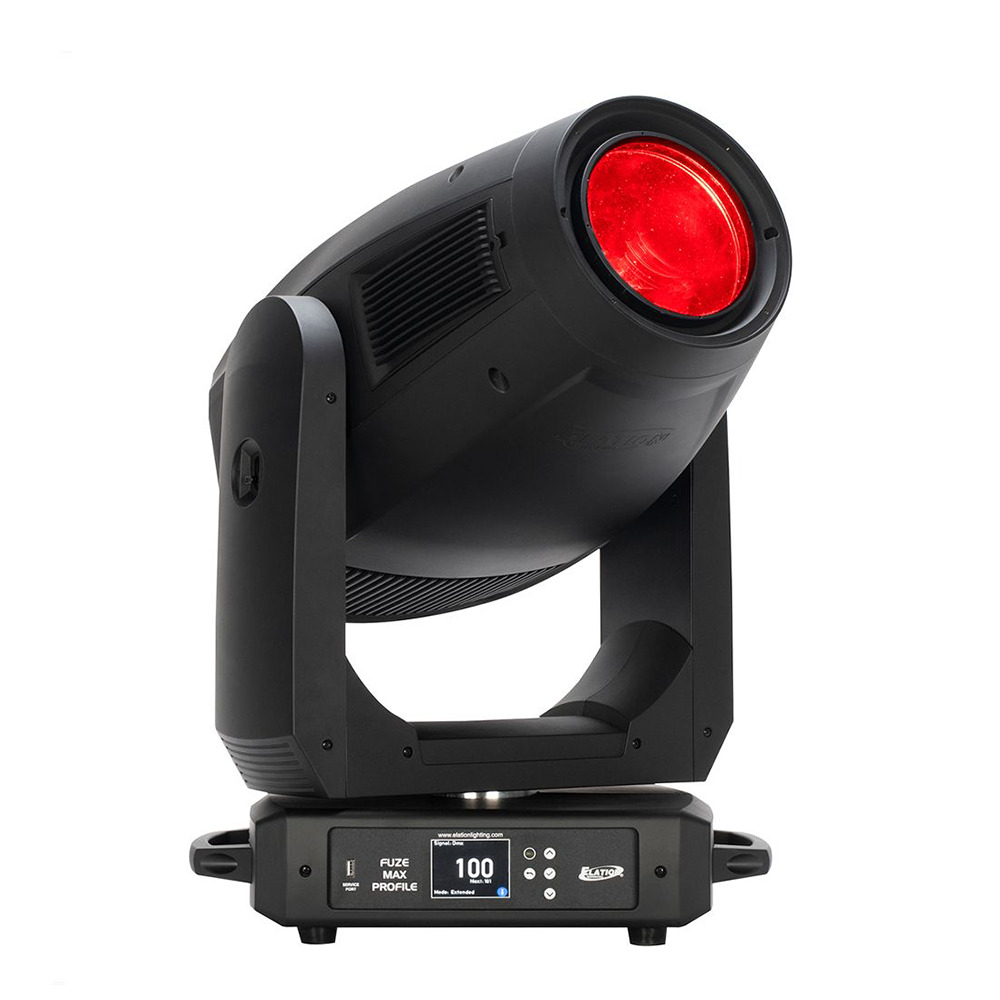

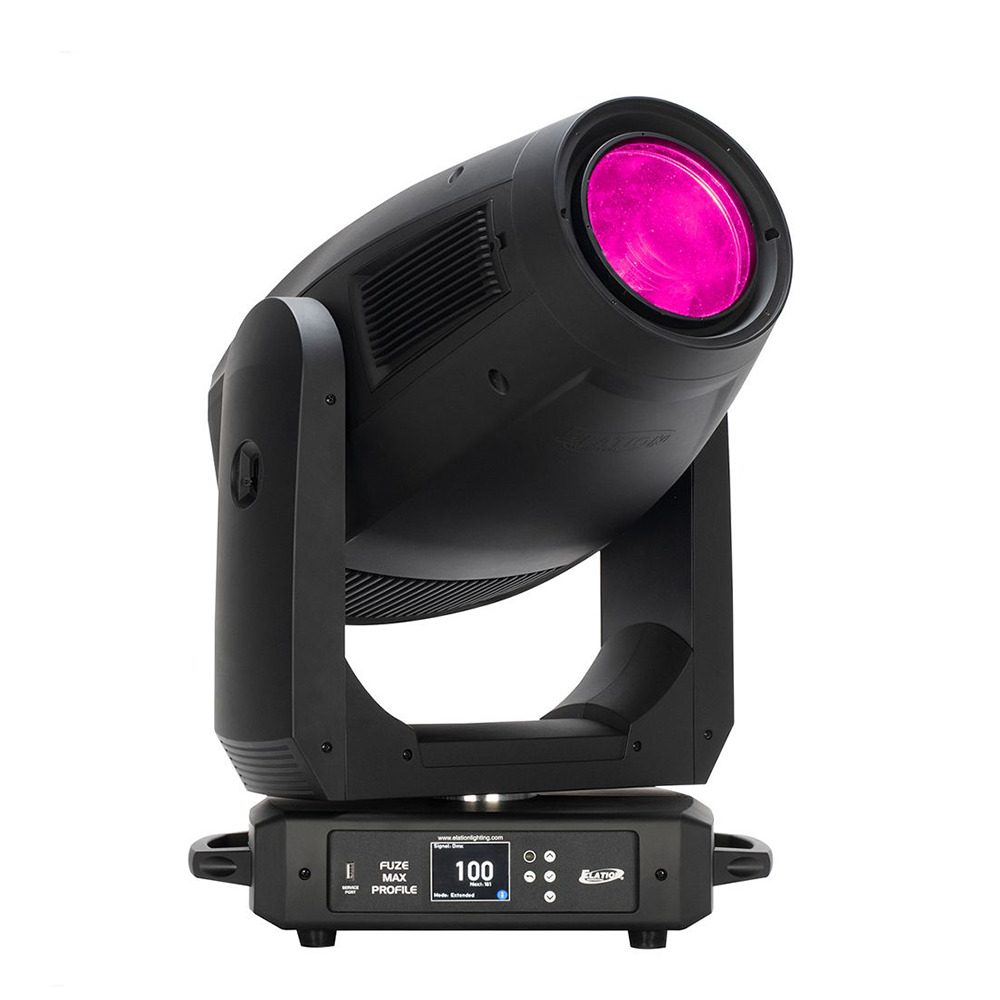

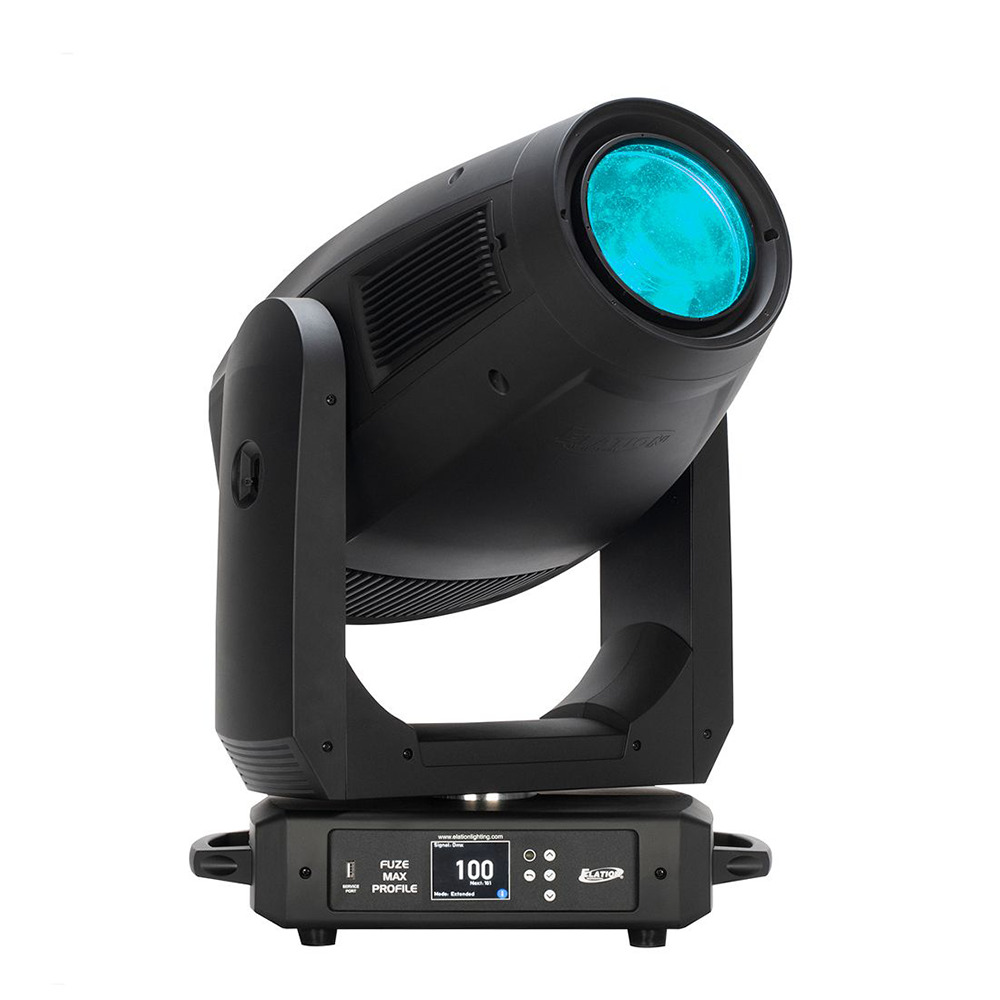

Elation – FUZE MAX PROFILE

Elation

The FUZE MAX PROFILE™ is designed for any application where fully automated framing fixture with outstanding and compelling color range and quality is required. A rotating gobo wheel, fixed gobo wheel, animation wheel, dual frost, prism and iris round out its comprehensive feature set in this quiet and extremely powerful automated framing fixture.

Features

  • Full Spectrum 800W RGBMA LED Engine
  • Precise dynamic whites from 2400 – 8500K
  • Instant color changes, Natural color transitions
  • Rich and intense primary colors
  • Rotating and Fixed Gobos plus Animation Wheel
  • Full Blackout Framing System
  • Iris, Prism, and Dual Frost
  • Wide Zoom Range from 7° to 53°
  • Large 140mm front aperture
SKU: ELA1237000258 Categories: , , , ,

Description

The FUZE MAX PROFILE™ is a full spectrum automated LED framing fixture designed for theater, television and a wide array of other precision lighting applications. The 92 CRI engine utilizes an 800W 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction and dynamic whites while delivering a powerful output of over 21,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.

The FUZE MAX PROFILE is designed for any application where fully automated framing fixture with outstanding and compelling color range and quality is required. A rotating gobo wheel, fixed gobo wheel, animation wheel, dual frost, prism and iris round out its comprehensive feature set in this quiet and extremely powerful automated framing fixture.

Video

Elation Professional – FUZE MAX PROFILE™

The FUZE MAX PROFILE™ is a full spectrum automated LED framing fixture designed for theater, television, and a wide array of other precision lighting applications.

Additional information

Source

800W 6,500K RGBMA LED Engine

30,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.

Photometric Data

21.000 Total Lumen Output

CRI 92

Zoom Range 7° – 53°

Beam Angle 6.6° – 50.3°

Field Angle 7.8° – 55°

Effects

Motorized Zoom

4 Rotating Full Blackout Framing Blades, +/- 60° Index

Dual Variable Frost Filter (Medium/ Wash)

4 Facet Round, 4 Facet Linear Prism

Motorized Iris

Variable 16-bit Dimming Curve Modes

High Speed Electronic Shutter and Strobe

Pan Angle: 540° / 630°

Tilt Angle: 250°

Colour

RGBMA Color Array

CMY Emulation

Variable CCT 2400K – 8500K

Green/Magenta Shift

Virtual Gel Swatch Book

Gobos

1x 6 Rotating / Indexing Interchangeable Glass Gobos

1x 7 Fixed Interchangeable Glass Gobos

Animation Wheel

Control / Connections

4 DMX Channel Modes (RGBMA 40/61) (CMY 38/57)

16-bit Pan, Tilt, and Dimming Control

DMX Adjustable LED Frequency

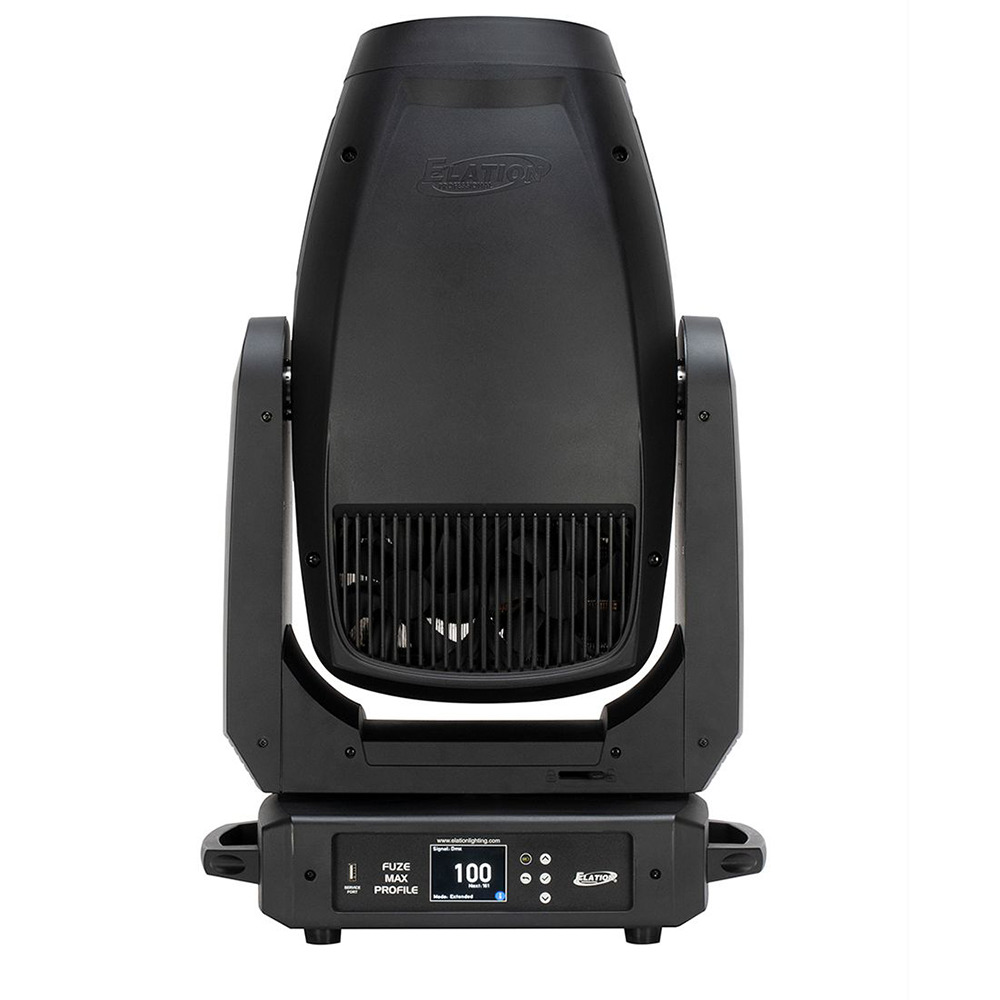

4 Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

16 Bit Resolution Adjustable Movement

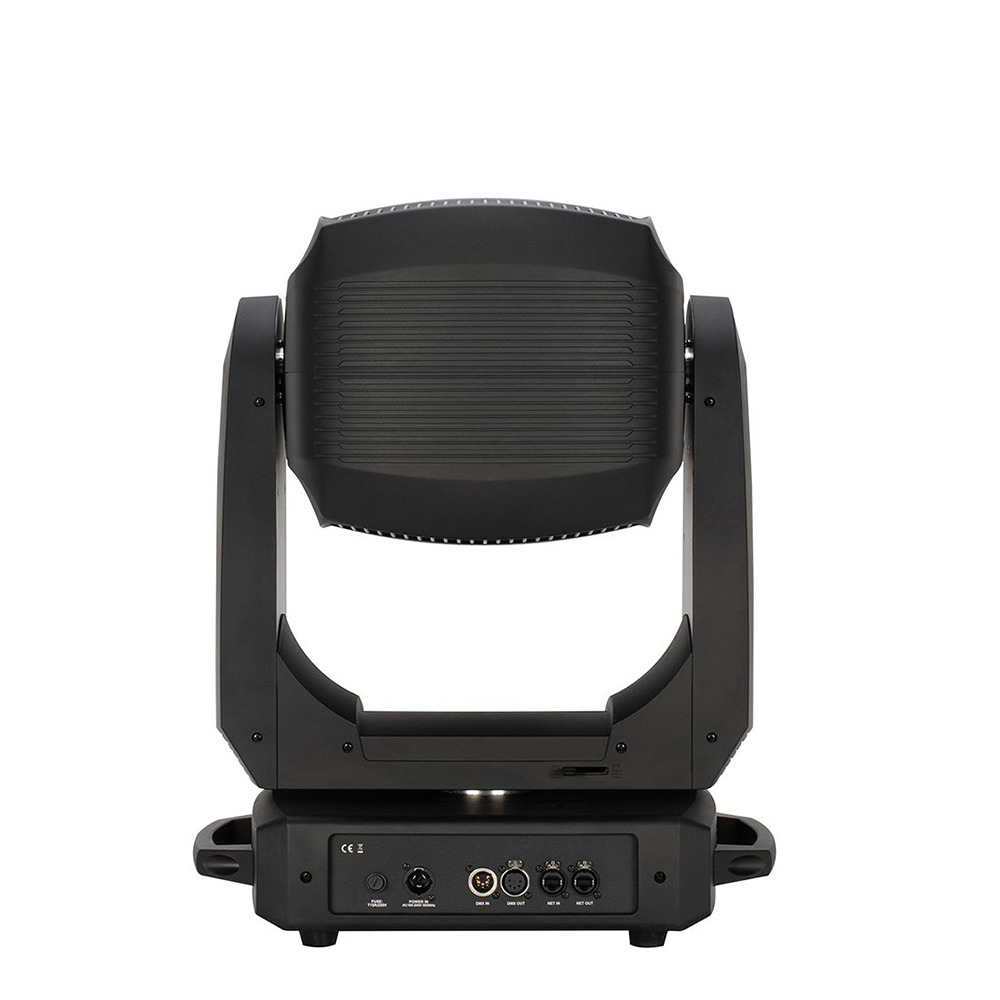

5pin DMX In/Out

IP65 Locking Power In

With Wired Digital Communication Network

Size / Weight

Length: 18.19” (462mm)

Width: 21.26" (540mm)

Width with Snoot: 23.2" (590mm)

Vertical Height: 28.3" (719mm)

Vertical Height with Snoot: 30.4" (771mm)

Center Spacing (no snoot): 26.1in (662mm)

Center Spacing (with snoot): 29.8in (757mm)

Weight: 76.3 lbs. (34.6kg)

Electrical / Thermal

AC 100-240V – 50/60Hz

1126W Max Power Consumption

14°F to 113°F (-10°C to 45°C)

BTU/hr (+/- 10%) 3839.66

INCLUDED ITEMS

Omega Brackets (x2)

IP65 Rated Locking Power Cable

Safety Cable

APPROVALS / RATINGS

CE, cETLus, IP20, FCC

Downloads

Data Sheet Download
User Guide Download
