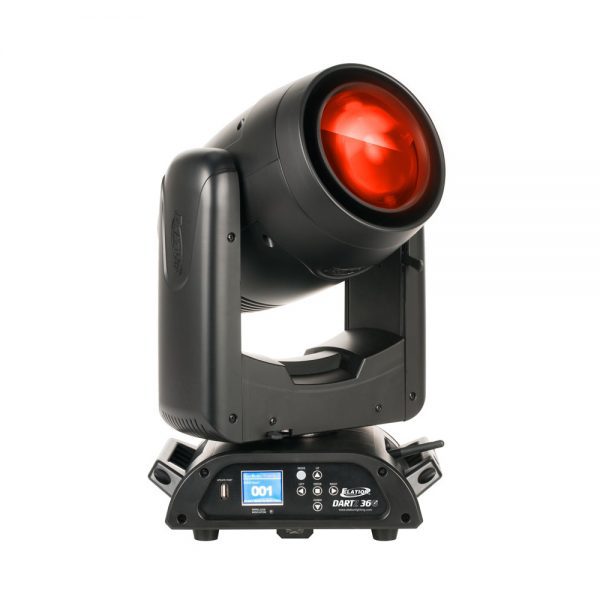

Elation - Dartz 360 Front right of fixture light on redElation - Dartz 360 Front right of fixture light on red

Elation – Dartz 360

Elation

The DARTZ 360™ is a unique, compact, narrow beam luminaire featuring a new patent pending single source 50W RGB LED engine producing an impressive 3° aperture, amazing high output level, and smooth color-mixed effects that can be used in a variety of applications.

SKU: ELA1215200036 Categories: , , , ,

Description

The DARTZ 360™ is a unique, compact, narrow beam luminaire featuring a new patent pending single source 50W RGB LED engine producing an impressive 3° aperture, amazing high output level, and smooth color-mixed effects that can be used in a variety of applications requiring no minimum safe project distance as with typical discharge lamp beam fixtures, fast and precise 16-bit continuous 360° pan and tilt rotation, 14 static-stamped metal gobos, 6-facet linear and 8-facet independent rotating prisms, 0-100% linear frost filter for wash effects, high speed electronic shutter and strobe, electronic dimming and variable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX, RDM (Remote Device Management), Kling-Net, Art-NET, and sACN protocol support, Elation’s E-FLY™ internal wireless DMX transceiver, 5pin XLR, RJ45 ethernet, and Locking Power Cable in/out connections, full color 180° reversible menu display with multi-button control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).

Features

  • Compact Precise 360° Pan/Tilt Moving Beam Luminaire
  • Patent Pending Single Source 50W RGB LED Engine
  • No Minimum Safe Project Distance Like Discharge Fixtures
  • 3° Sharp Aperture with Motorized Focus
  • Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
  • 14 Static-Stamped Metal Gobos
  • 6 Facet Linear and 8 Facet Circular Independent Rotating Prisms
  • 0-100% Linear Frost Filter for Wash Effects
  • High Speed Electronic Shutter and Strobe
  • Electronic Dimming and Variable Dimming Curve Modes
  • DMX, RDM, Kling-Net, Art-NET, and sACN Protocol Support

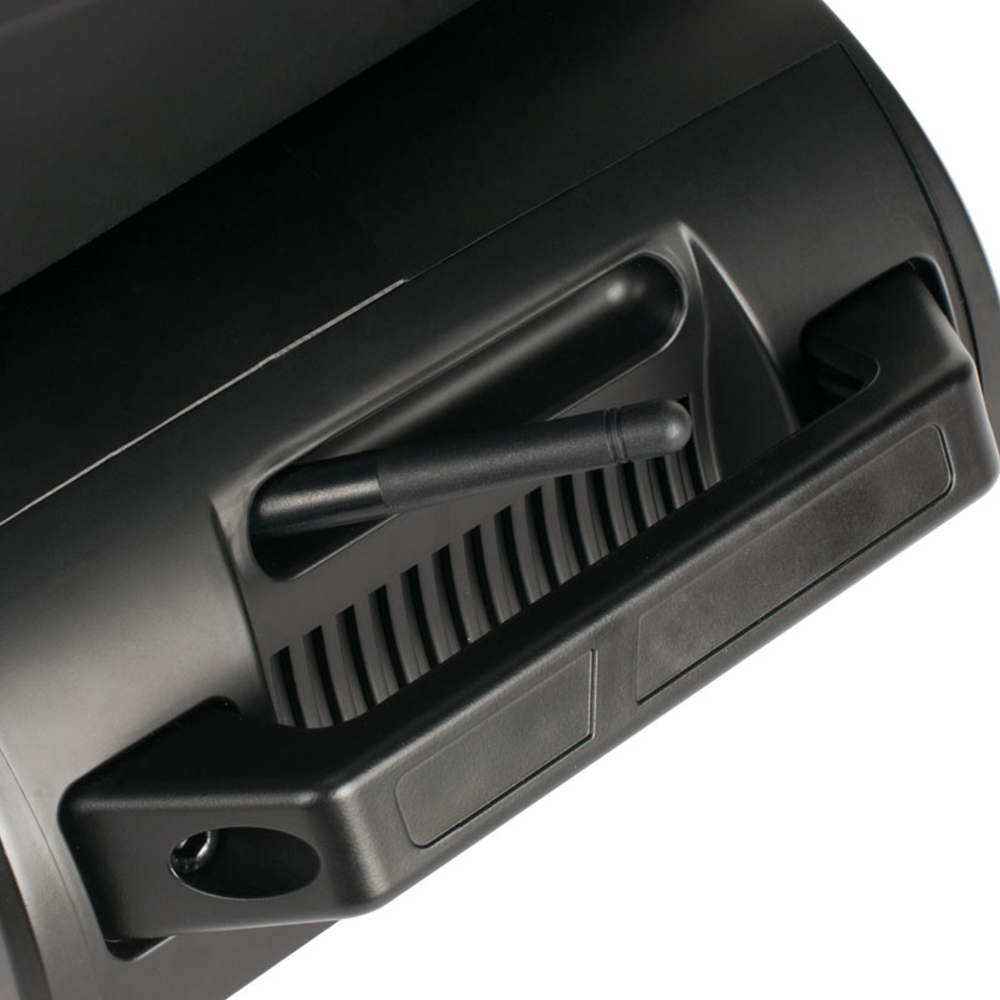

  • Elation’s E-FLY™ Internal Wireless DMX Transceiver
  • Adjustable Refresh Rate Frequency and Gamma Brightness
  • Flicker Free Operation for TV and FILM

Video

Elation Professional – Dartz 360 Lightshow

This lightshow programmed by Frank Schotman in our Europe showroom highlights some of the key features of the new Dartz 360 which will make it’s debut September 17th at PLASA 2017 in London, England.

Additional information

Weight 12.7 kg
Source

Patent Pending 50W RGB LED Engine
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Photometrica Data

29,562 LUX 2,746 FC @ 5m (16.4’) (3° Full ON)
Effects

Motorized Focus
6 and 8 Facet Independent Rotating Prisms
0-100% Linear Frost Filter for Wash Effects
High Speed Electronic Shutter and Strobe
16-Bit Variable Dimming Curve Modes
Adjustable LED Refresh Rate and Gamma Brightness
Colour

RGB Smooth Color Mixing
Gobos

14 Static-Stamped Metal Gobos
Control / Connections

(3) DMX Channel Modes (19 / 22 / 25)
360° Continuous Pan and Tilt 8 / 16 Bit Movement
Adjustable Refresh Rate (900-25,000Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
6 Button Menu Control Panel
Full Color 180° Reversible LCD Menu Display
DMX, RDM, Kling-net, Art-NET and sACN Protocol Support
Elation E-FLY™ Internal Wireless DMX Transceiver

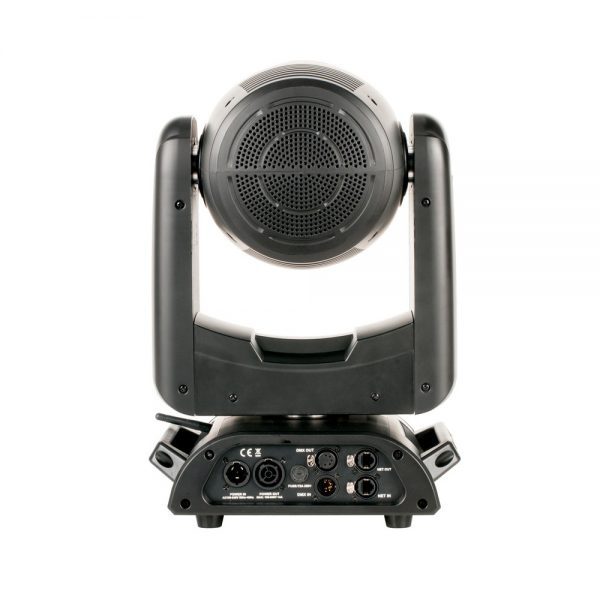

5pin DMX, RJ45 Ethernet In/Out
Locking Power Cable In/Out
With Wired Digital Communication Network
Size / Weight

Length: 284.15mm (11.2 in)
Width: 195.97mm (7.7 in)
Vertical Height: 454.7mm (17.9 in)
Weight: 12.7 kg (28.0 lbs.)
Electrical / Thermal

AC 100-240V 50/60Hz
154W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 525.14
