DPA - 4466 CORE Omnidirectional Headset MicrophoneDPA - 4466 CORE Omnidirectional Headset Microphone

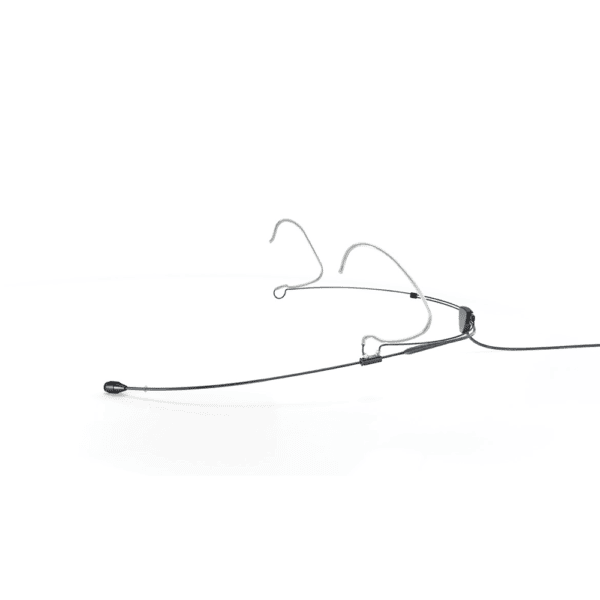

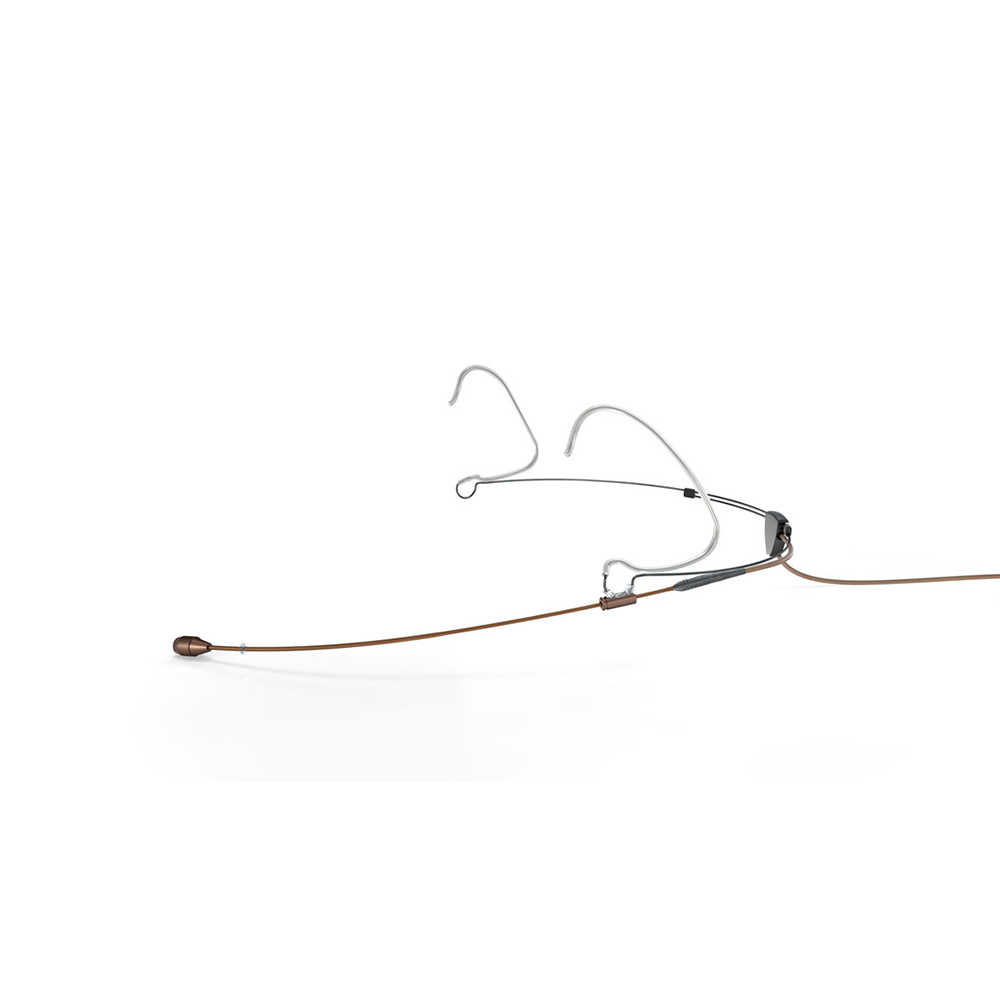

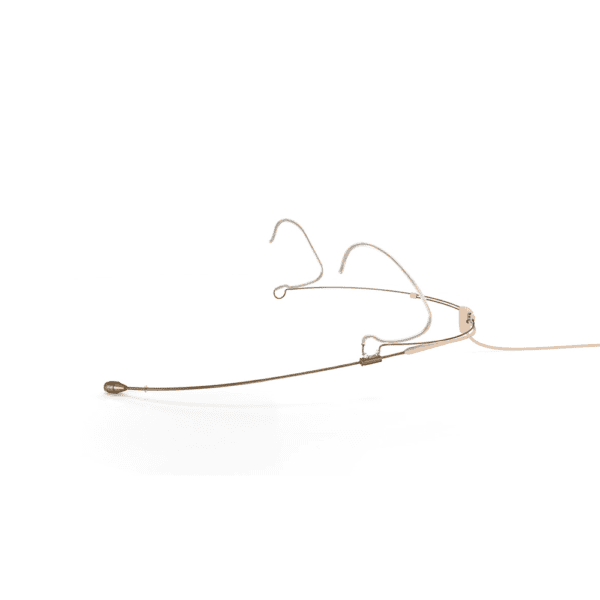

DPA – 4466 CORE Omnidirectional Headset Microphone

DPA Microphones

DPA’s renowned 5 mm capsules with CORE by DPA technology and the Red Dot award-winning headset.

Clear

Description

The 4466 CORE Omnidirectional Headset Microphone combines DPA’s renowned 5 mm capsules with CORE by DPA technology and the Red Dot award-winning headset.

These are the most advanced headset microphone – secure, durable and flexible – for segments including: Theatre, Broadcast, House of Worship and Conferencing.

This omni mic offers clean and transparent sound quality with lots of headroom. The microphone’s sensitivity is 6 mV/Pa. This matches the level of the human voice to the general input sensitivity of most wireless transmitters. When powered correctly, the microphone will be able to handle very high sound pressure levels up to 134 dB SPL so users can both speak and sing into the mic with no hint of distortion. The max SPL handling is an impressive 144 dB.

Features

  • One-size-fits-all – head sizes and shapes
  • Comfortable 3-point grip – above, below, behind the ear
  • Easily adjustable – frame size, boom length, placement
  • 90° adjustable cable guide – keeps cable out of sight
  • Non-reflective PVD surface on headset frame, boom, capsule

Video

W-DMX MicroBox G6

Following the great success of W-DMX BlackBox G6, Wireless Solution has now completed the development of the next product in the G6 range – W-DMX MicroBox G6. With the added features this product aims to make it easier to get going with Wireless DMX in all types of events.

Additional information

Directional pattern

Omnidirectional

Principle of operation

Pressure

Frequency response

20 Hz – 20 kHz

Effective frequency range ±2 dB

Soft boost grid: 40 Hz – 20 kHz, 3 dB soft boost at 8 – 20 kHz. High boost grid: 40 Hz – 20 kHz, 10 dB boost at 12 kHz

Sensitivity, nominal, ±3 dB at 1 kHz

6 mV/Pa; -44 dB re. 1 V/Pa

Equivalent noise level, A-weighted

Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))

Equivalent noise level, ITU-R BS.468-4

Typ. 38 dB (max. 40 dB)

Distortion, THD < 1%

134 dB SPL RMS, 137 dB SPL peak

Dynamic range - CORE

Typ. 111 dB

Max. SPL, THD 10%

144 dB SPL peak

Rated output impedance

30 – 40 Ω

Cable drive capability

Up to 300 m (984 ft) with DAD6001-BC XLR Adapter

Power supply (for full performance)

For wireless systems: Min. 5 V – max. 10 V through DPA adapter
With DAD6001-BC: P48 (Phantom Power). Will work from 12 V

Current consumption

Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

Connector

MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack

Color

Black or beige

Weight

12 g (0.4 oz) incl. Cable and MicroDot connector

Microphone diameter

5.4 mm (0.21 in)

Cable length

1.3 m (4.3 ft)

Cable diameter

1.6 mm (0.06 in)

Polarity

Positively increasing sound pressure produces positive going voltage on MicroDot pin

Temperature range

-40°C to 45°C (-40°F to 113°F)

Relative humidity (RH)

Up to 90%

Downloads

Quick Start Guide Download
User Guide Download
