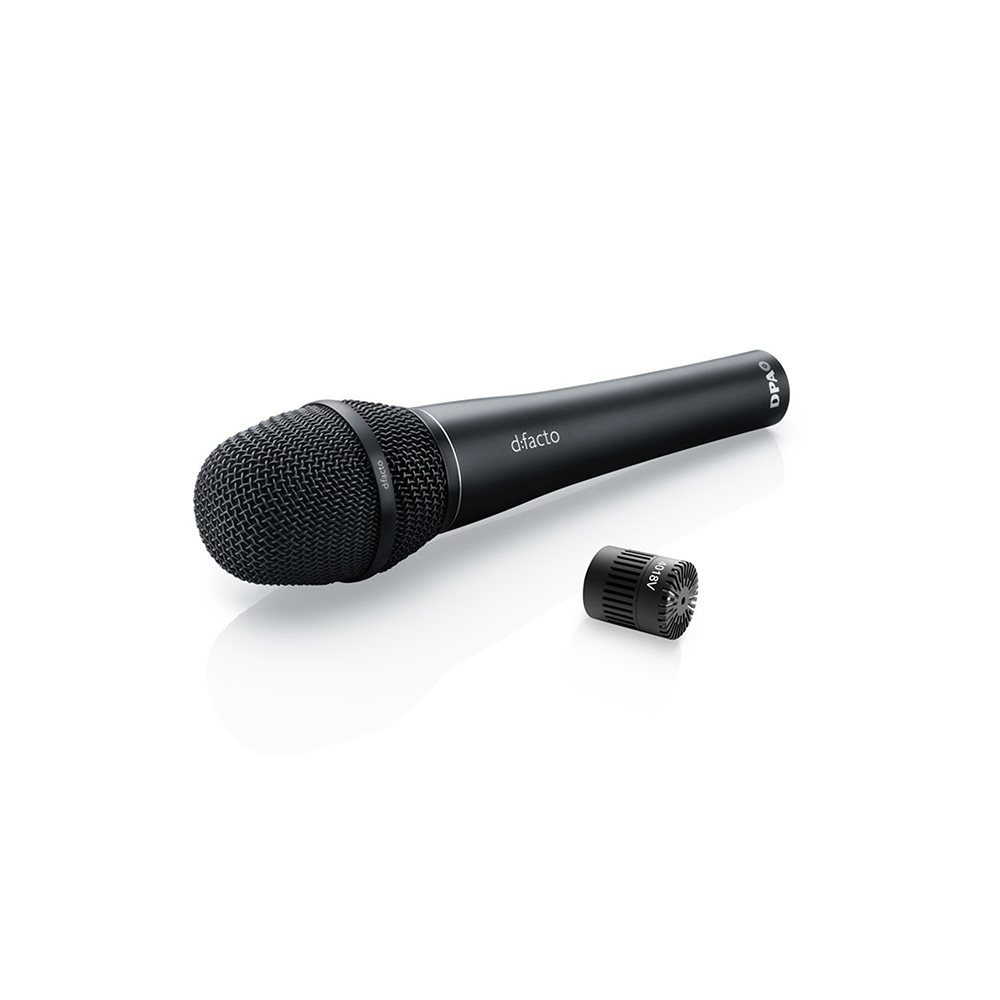

DPA – d:facto™ 4018V Softboost Vocal Microphone

DPA Microphones

The 4018V vocal microphone brings true studio sound to the live stage with excellent sonic reproduction and perfect uniform supercardioid directionality.

Features

  • Extraordinarily natural sound
  • Perfectly uniform supercardioid directionality
  • High separation
  • Extreme SPL handling
  • Low handling noise
  • Sleek design
  • Flexible adapter system fits most professional wireless systems
SKU: N/A Categories: , , ,
Clear

Description

The d:facto™ series brings true studio sound to the live stage and broadcasting studio. This version has a pre-programmed high-end boost has a 3 dB soft boost at 12 kHz. The modular nature of the d:facto™ series allows you to switch the capsule as well as the adapter, making it the most flexible vocal microphone available on the market.

Engineered especially for vocal performances onstage, the d:facto™ holds a supercardioid capsule that is designed to reproduce every nuance of the human voice transparently, consistently and thrillingly.

Additional information

Directional pattern

Supercardioid
Principle of operation

Pressure gradient
Cartridge type

Pre-polarized condenser
Frequency response

20 Hz – 20 kHz
Effective frequency range ±2 dB, at 12 cm (4.7 in)

40 Hz – 16 kHz with 3 dB soft boost at 12 kHz
Sensitivity, nominal, ±2 dB at 1 kHz

5 mV/Pa; -46 dB re. 1 V/Pa
2 mV/Pa; -54 dB re. 1 V/Pa with Adapter for wireless
Equivalent noise level, A-weighted

Typ. 19 dB(A) re. 20 µPa (max. 21 dB(A))
Distortion, THD < 1%

136 dB SPL RMS, 139 dB SPL peak
Dynamic range

Typ. 120 dB
Max. SPL, THD 10%

160 dB SPL peak
Rated output impedance

100 Ω
Cable drive capability

100 m (328 ft)
Output balance principle

Impedance balancing with Active Drive
Common mode rejection ratio (CMRR)

> 50 dB at 1 kHz
Power supply (for full performance)

P48 (Phantom Power)
Current consumption

Max 2.0 mA
Connector

XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: – phase
Weight

309 g (10.9 oz)
Microphone diameter

52 mm (2.05 in)
Capsule diameter

19 mm (0.75 in)
Microphone length

205 mm (8.1 in)
Maximum output voltage, RMS

8 V
Polarity

+V at pin 2 for positive sound pressure
Temperature range

-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)

Up to 90%
Colors

Matte black
