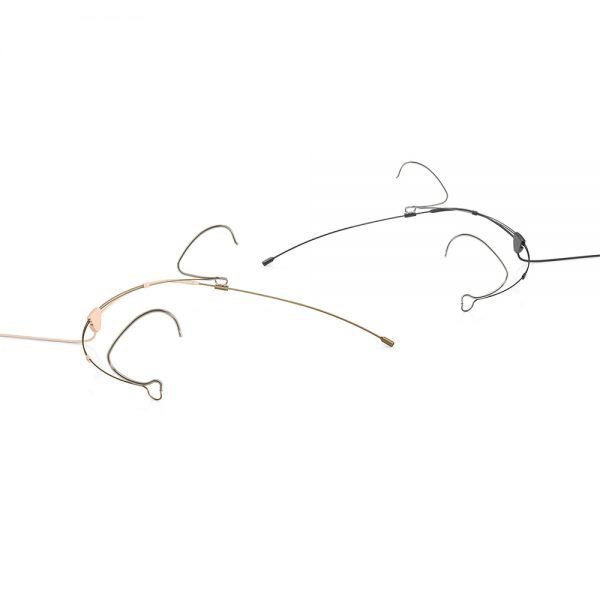

DPA – 6066 Omnidirectional Headset Subminiature Mic

DPA Microphones

The capsule of the 6066 CORE Subminiature Headset is just 3 mm (0.12 in) in diameter, but packs the audio power of larger, award-winning DPA mics. Despite its small size, it is abundant in clarity, consistency and durability – three qualities that truly matter. By shrinking our CORE by DPA technology, we ensure you don’t have to compromise on sound to focus on aesthetics.

Features

  • Amazing 3 mm CORE by DPA capsules technology
  • Renowned DPA sound in a 60% smaller capsule
  • One-size-fits-all, headset fits securely and comfortably
  • 2-way adjustable, non-reflective boom with locking system
  • Unique, comfortable 3-point gripping system above, below and behind the ear
  • New 90° cable management constructed to guide the cable and minimize cable breaks
Clear

Description

The capsule of the 6066 CORE Subminiature Headset is just 3 mm (0.12 in) in diameter, but packs the audio power of larger, award-winning DPA mics. Despite its small size, it is abundant in clarity, consistency and durability – three qualities that truly matter. By shrinking our newly introduced CORE by DPA technology, we ensure you don’t have to compromise on sound to focus on aesthetics.

Beyond this minimized size and maximized sound potential, these mics also sport a completely redesigned, lightweight, one-size-fits-all headset that attaches over the ears for maximum comfort. 3-point ear grips with spring mechanisms help grip below the ears and to the side of the head for added security. A 2-way adjustable boom system (length and height) with an anti-rotate mechanism makes this new headset very easy to fit. A new 90° cable management system safeguards the cable and directs it down the wearer’s back, where it can’t be seen.

Between the sound quality and the comfort, once you try it we’re sure you’ll never want to wear another headset mic solution.

Video

6066 Subminiature Headset – An all-day professional headworn solution

The capsule of the 6066 Subminiature Headset is just 3 mm (0.12 in) in diameter, but packs the audio power of larger, award-winning DPA mics. Despite its small size, it is abundant in clarity, consistency and durability – three qualities that truly matter. By shrinking our newly introduced CORE by DPA technology, we ensure you don’t have to compromise on sound to focus on aesthetics.

Additional information

Directional pattern

Omnidirectional

Principle of operation

Pressure

Frequency response

20 Hz – 20 kHz

Effective frequency range ±2 dB

40 Hz – 20 kHz with 4 dB soft boost at 8 – 20 kHz

Sensitivity, nominal, ±3 dB at 1 kHz

6 mV/Pa; -44 dB re. 1 V/Pa

Equivalent noise level, A-weighted

Typ. 26 dB(A) re. 20 μPa (max. 28 dB(A))

Distortion, THD < 0.5%

122 dB SPL RMS, 125 dB SPL peak

Distortion, THD < 1%

125 dB SPL RMS, 128 dB SPL peak

Dynamic range

Typ. 102 dB

Max. SPL, THD 10%

144 dB SPL peak

Rated output impedance

From MicroLock: 30 – 40 Ω. From DAD9001-BC: 100 Ω

Cable drive capability

Up to 300 m (984 ft) with DAD9001-BC XLR adapter

Power supply (for full performance)

For wireless systems Min. 5 V – max. 10 V through DPA adapter

With DAD6001-BC: P48 (Phantom Power). Will work from 12 V

Current consumption

Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

Connector

MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack

Color

Black, beige or brown

Weight

11 g (0.4 oz) incl. Cable and MicroDot connector

Microphone head size (h x w x d)

3.4 / 8.9 mm (0.13 / 0.35 in)

Capsule diameter

3 mm (0.12 in)

Cable length

1.3 m (4.3 ft)

Polarity

Positively increasing sound pressure produces positive going voltage on MicroDot pin

Relative humidity (RH)

Up to 90%

Temperature range

-40°C to 45°C (-40°F to 113°F)
