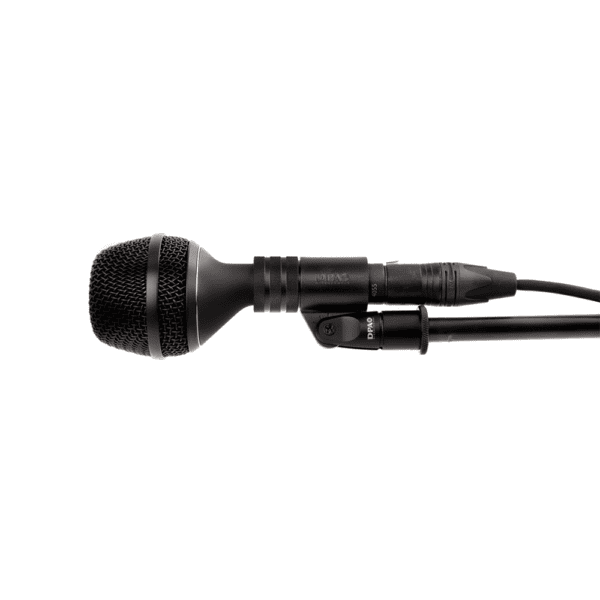

DPA - 4055 Kick Drum Mic Side view in holderDPA - 4055 Kick Drum Mic Side view in holder

DPA – 4055 Kick Drum Mic

DPA Microphones

DPA Preferred Rental Partner
Designed for the unique challenges of live stage performances.

Description

Designed to kick the bass to the next level, the 4055 takes the traditional concept of a kick drum mic and turns it on its head – no more pre-tailored sound – now you can take sound design back into your own hands.

What makes the 4055 stand out from the competition is that it delivers the renowned DPA sound, clarity and linear frequency response, both on axis and off axis. Its low frequency response and dynamics are superb and result in a tight, natural, well-defined sound – the best low-end with detailed mids and highs.

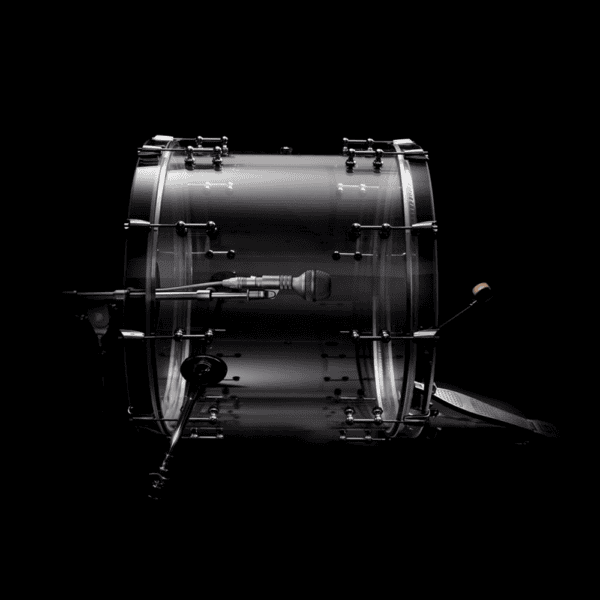

The 4055 is one of the only kick drum mics that is not sonically pre-tailored to fit a traditional sound in a specific genre. Its performance allows a professional sound designer to create the exact sound s/he is listening for – regardless of the music genre. Want more attack? Slide the 4055 into the bass drum and point it directly at the beater. For a super-low-end sound, place the 4055 at the hole, just on the outside of the front head. Here, the level of sub and lows are represented the most.

Not only does the position inside or outside the kick drum give you different sounds but working with the angles of the microphone just outside the hole will deliver nuances of the drum sound. No matter what sound preference you have, the 4055 captures the true sound of a kick drum, whether it is used in classic, jazz, rock or any other genre.

The 4055 is placed in a large, robust housing and there is wind damping foam just in front of the capsule, behind the grille. A specially-designed shock mount also suspends the capsule inside the housing to avoid vibrations from the stage. The shock mount together with the extra wind damping ensures that the 4055 captures only the source.

The 4055 is easy to position, both inside and outside the drum. Its unique asymmetric design makes it quite easy to place the mic through the drum hole without ripping the front resonator skin.

Not just for the kick!

The 4055 is not limited to the kick drum. It works equally well on other instruments, such as electric guitar cabinets, bass and horns. Its flat frequency response and ability to bring the uncolored sound to the next level works well on many instrument types.

Features

  • Picks up the clear, true sound of the kick drum
  • Flat frequency response so you can shape the sound your way
  • Built tough to withstand rough use on the live stage
  • Asymmetric design for easy placement inside or outside

DPA wanted to make this mic easy to position both inside and outside the kick drum. It can even be pointed directly at the beater to get that extra attack (“smash”) from the beater head.

Other mics of this type have a shape that makes it very difficult to place them inside the drum – almost forcing users to do acrobatics to avoid ripping the front resonator skin.

Video

No more pre-tailored sound! Capture the true sound of the bass drum – 4055 Kick Drum Microphone

Designed to kick the bass to the next level, the DPA 4055 takes the traditional concept of a kick drum mic and turns it on its head – no more pre-tailored sound – now you can take sound design back into your own hands.

Due to its asymmetric design, the 4055 can be rotated and the whole construction, including the holder, slides in easily, even into smaller drum skin holes.

Additional information

Directional pattern

Open Cardioid

Principle of operation

Pressure gradient

Cartridge type

Pre-polarized condenser

Frequency response

20 Hz – 20 kHz

Effective frequency range ±2 dB, at 20 cm (7.9 in)

40 Hz – 18 kHz with a 6 dB soft boost at 10 kHz

Sensitivity, nominal, ±2 dB at 1 kHz

2 mV/Pa; -54 dB re. 1 V/Pa

Equivalent noise level, A-weighted

Typ. 27 dB(A) re. 20 µPa (max. 29 dB(A))

Equivalent noise level, ITU-R BS.468-4

Typ. 39 dB (max. 41 dB)

Distortion, THD < 1%

156dB SPL RMS, 159 dB SPL peak

Dynamic range

Typ. 132 dB

Max. SPL, THD 10%

164 dB SPL peak

Rated output impedance

380 Ω

Minimum load impedance

2 kΩ

Cable drive capability

100 m (328 ft)

Output balance principle

Impedance balancing with Active Drive

Common mode rejection ratio (CMRR)

> 55 dB

Power supply (for full performance)

P48 (Phantom Power)

Current consumption

2.0 mA

Connector

XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: – phase

Color

Matte black

Weight

241 g (8.5 oz)

Microphone diameter

57 mm (2.24 in)

Capsule diameter

17 mm (0.67 in)

Microphone length

132 mm (5.19 in)

Maximum output voltage, RMS

9.75 V

Polarity

+V at pin 2 for positive sound pressure

Temperature range

-40°C to 45°C (-40°F to 113°F)

Relative humidity (RH)

Up to 90%
