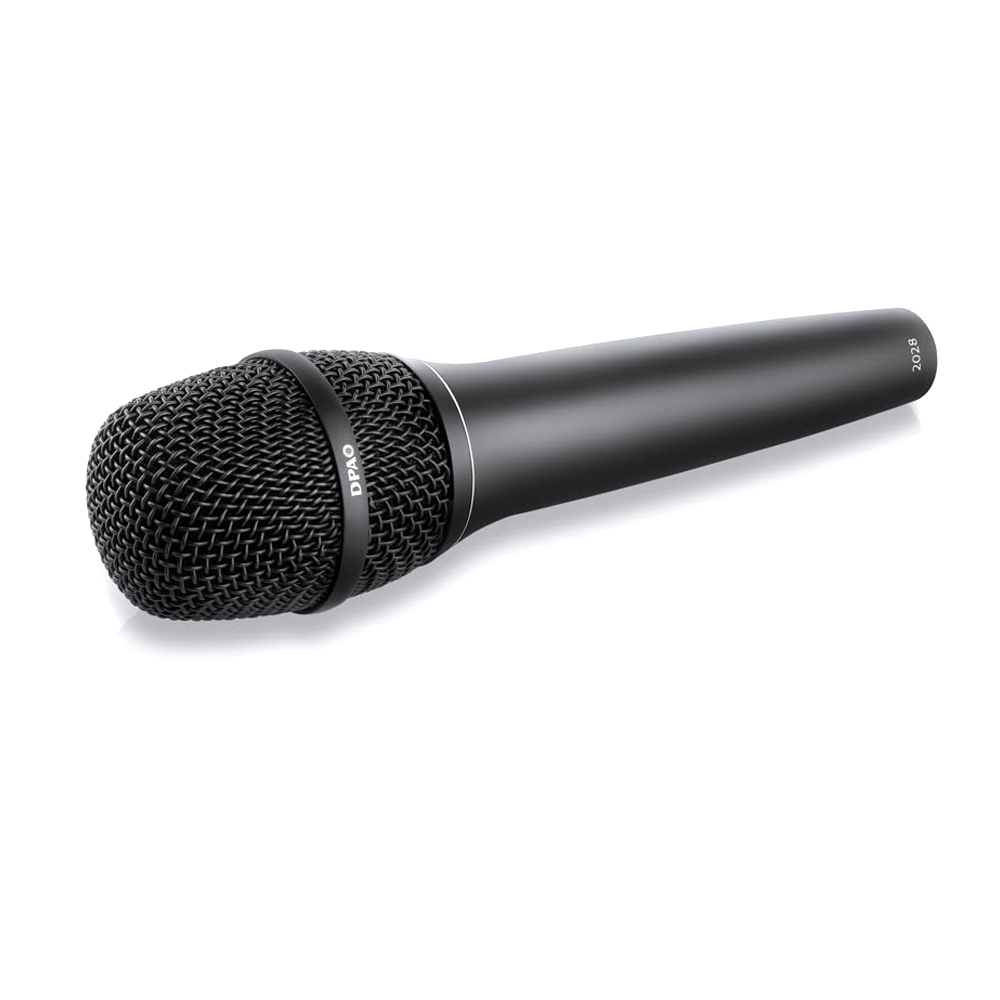

DPA - 2028 Vocal MicrophoneDPA - 2028 Vocal Microphone

DPA – 2028 Microphone

DPA Microphones

DPA Preferred Rental Partner

Designed for the unique challenges of live stage performances.

Clear

Description

This one mic allows you to capture true sound and produce an unforgettable show. Effortlessly. The 2028 Vocal Microphone is designed for the unique challenges of live stage performances. It is a flexible handheld vocal condenser mic, which provides fantastic, transparent vocals to performers from a wide range of markets including live, HoW, broadcast, etc. Use it wired or together with your favorite wireless system, either way, just plug it in and hear the vocals shine like never before.

Durable mechanical construction

The 2028 is an extremely durable microphone. The grille is made of a black chrome finish, which is hard and rugged. In addition, it can be removed for ease of cleaning. The wired version of the 2028 has a handle made of zinc alloy with the same black chrome finish. Overall, the microphone is made with premium materials that can take a beating and will provide years of reliable use.

Uniform supercardioid directionality

The 2028 has a supercardioid capsule with DPA’s famously flat off-axis response. Besides a high gain-before-feedback, this characteristic makes it easier for sound engineers to handle bleed from other instruments at close proximity. The 2028 picks up off-axis sounds in a very natural and attenuated way.

Extreme SPL handling

The 2028 has a dynamic range of 117 dB so the mic easily picks up the peaks – due to the fast transient response of the diaphragm. This makes it easier to place the mic in the mix. In fact, the 2028 can handle the extreme SPL of the most dynamic singer, but with its low self-noise, it also sounds great in the hands of softer singers as well.

Features

  • Durable mechanical construction
  • Reduces feedback issues
  • Uniform supercardioid directionality
  • Extreme SPL (Sound Pressure Level) handling
  • Easy to EQ



Video

2028 Vocal Microphone – Built for life on the road

DPA Microphones’ new handheld vocal microphone was designed to capture shining vocals on the live stage. Use it wired or together with your favorite wireless system, either way, just plug it in and hear the vocals shine like never before. The 2028 was built to withstand the unique challenges of life on tour.

Additional information

Weight 0.278 kg
Directional pattern

Supercardioid

Principle of operation

Pressure gradient

Cartridge type

Pre-polarized condenser

Frequency response

20 Hz – 20 kHz

Effective frequency range ±2 dB, at 12 cm (4.7 in)

100 Hz – 16 kHz. Permanent 3rd order low-cut filter at 80 Hz

Sensitivity, nominal, ±3 dB at 1 kHz

5 mV/Pa; -46 dB re. 1 V/Pa
5 mV/Pa; -54 dB re. 1 V/Pa with Adapter for wireless

Equivalent noise level, A-weighted

Typ. 22 dB(A) re. 20 µPa (max. 23 dB(A))

Distortion, THD < 1%

136 dB SPL RMS, 139 dB SPL peak

Dynamic range

Typ. 117 dB

Max. SPL, THD 10%

160 dB SPL peak

Rated output impedance

150 Ω

Minimum load impedance

1 kΩ

Cable drive capability

100 m (328 ft)

Output balance principle

Impedance balancing with Active Drive

Common mode rejection ratio (CMRR)

> 50 dB at 1 kHz

Power supply (for full performance)

P48 (Phantom Power)

Current consumption

Max 2.5 mA

Connector

XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: – phase

Color

Matte black

Weight

286 g (10.1 oz)

Microphone diameter

48 mm (1.9 in)

Capsule diameter

19 mm (0.75 in)

Microphone length

188 mm (7.4 in)

Maximum output voltage, RMS

9 Vrms; 19 dBV; 28 dBu

Polarity

+V at pin 2 for positive sound pressure

Temperature range

-40°C to 45°C (-40°F to 113°F)

Relative humidity (RH)

Up to 90 %

Downloads

User Guide Download
