DPA - 2015 Compact Wide Cardioid Microphone in stand clipDPA - 2015 Compact Wide Cardioid Microphone in stand clip

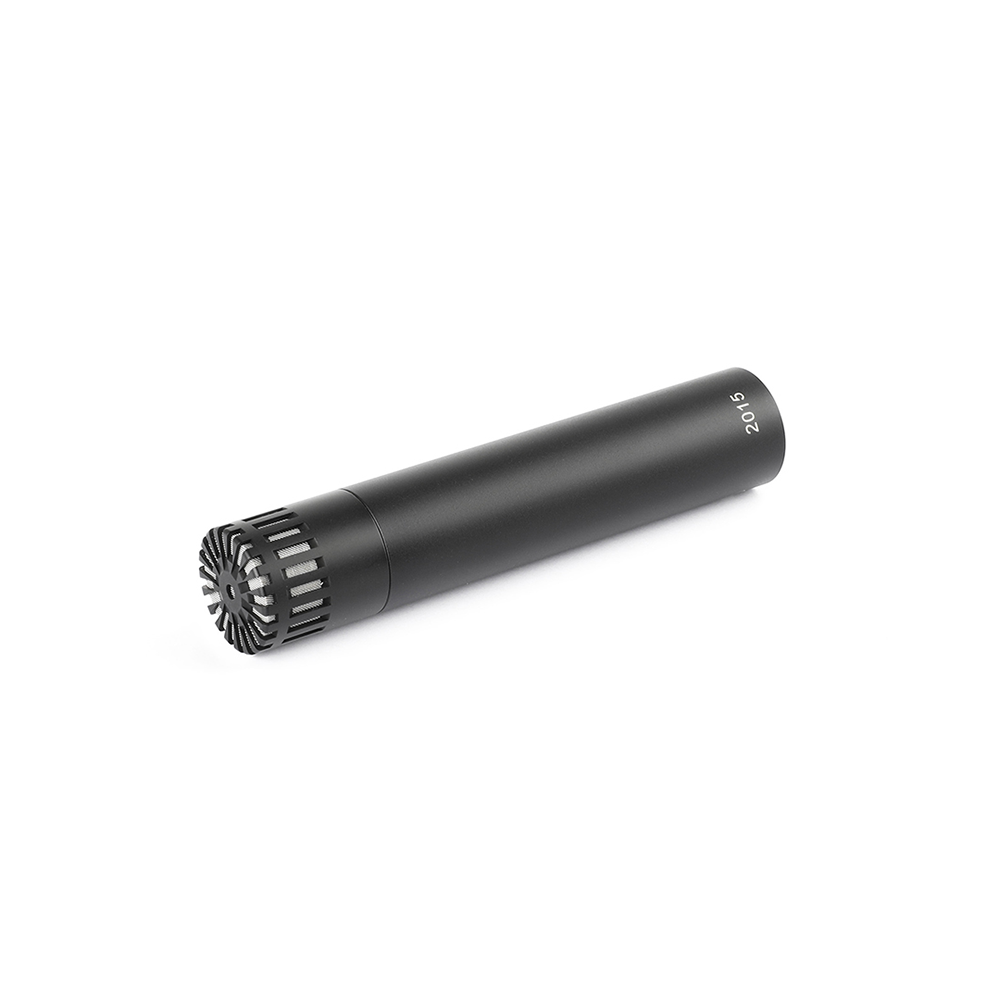

DPA – 2015 Compact Wide Cardioid Microphone

DPA Microphones

DPA Preferred Rental Partner

Overhead mics for ambient pick up on the live stage

Clear

Description

The 2015 Compact Wide Cardioid Microphone is for ambient pick up of a drum kit or other instrument groups.

Features

  • Durable, reinforced construction
  • Uniform wide cardioid directionality
  • Spacious sound due to a wide cardioid pick-up pattern
  • Natural and precise sound reproduction
  • Compact design for unobtrusive placement on stage

In a live situation when a conventional cardioid pattern isn’t quite open enough, choose a pair of 2015 Compact Wide Cardioids. They work ideally as overheads to capture a balanced sound of the entire group of instruments, like a drum kit.

Also, when recording instrument groups with complex radiation patterns, the wide cardioid (also known as hemispheric, subcardioid or hypocardioid) design covers a greater sound angle and is an excellent choice.

Durable, reinforced construction

The 2015 is constructed to withstand rough handling on a hectic live stage. It has a thicker, more robust body construction of brass that is very durable and known for its corrosion resistance and tolerance against metal fatigue. In addition to the heavy-duty materials used, the surfaces of the mic handle and grille are treated with a protective black chrome finish, which ensures more graceful ageing.

Uniform cardioid directionality

The 2015 has a wide cardioid capsule with DPA’s famously flat off-axis response. Besides a high gain-before-feedback, this characteristic makes it easier for sound engineers to handle bleed from other instruments at close proximity. The 2015 picks up off-axis sounds in a very natural and attenuated way.

Key applications

  • Overheads on drums
  • Grand piano, away or close to the strings
  • Horn groups
  • Vibraphones
  • Xylophones
  • Large marimbas
  • Other large instruments

Additional information

Directional pattern

Wide cardioid

Principle of operation

Pressure gradient

Cartridge type

Pressure gradient

Frequency response

20 Hz – 20 kHz

Effective frequency range

40 Hz to 18 kHz at 30 cm (11.8 in)

Sensitivity, nominal, ±2 dB at 1 kHz

12 mV/Pa; -37.7 dB re. 1 V/Pa

Equivalent noise level, A-weighted

Typ. 18 dB(A) re 20 µPa (max. 20 dB(A))

Distortion, THD < 1%

147 dB SPL (150 dB SPL peak)

Dynamic range

Typ. 132 dB

Max. SPL, THD 10%

150 dB SPL (153 dB SPL peak)

Switchable attenuator, filters etc.

–

Rated output impedance

60

Minimum load impedance

2 k

Cable drive capability

100 m (328 ft)

Output balance principle

Impedance balancing with Active Drive

Common mode rejection ratio (CMRR)

> 60 dB

Power supply (for full performance)

P48 (Phantom Power)

Current consumption

0.7 mA

Connector

XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: – phase

Color

Matte black

Weight

83 g (2.9 oz)

Microphone diameter

19 mm (0.75 in)

Capsule diameter

17 mm (0.67 in)

Microphone length

94 mm (3.7 in)

Maximum output voltage, RMS

8.7 V (21 dBu)

Polarity

+V at pin 2 for positive sound pressure

Temperature range

40°C to 45°C (-40°F to 113°F)

Relative humidity (RH)

Up to 90%

Sensitivity selection tolerance (at 1 kHz)

±1.5 dB
