Doughty – Twenty Clamp Black (T58400)

Doughty

Fully TUV approved, cast aluminium luminaire clamp able to accept both M10 and M12 fixings. For pipe diameters of 48 – 51mm.

Description

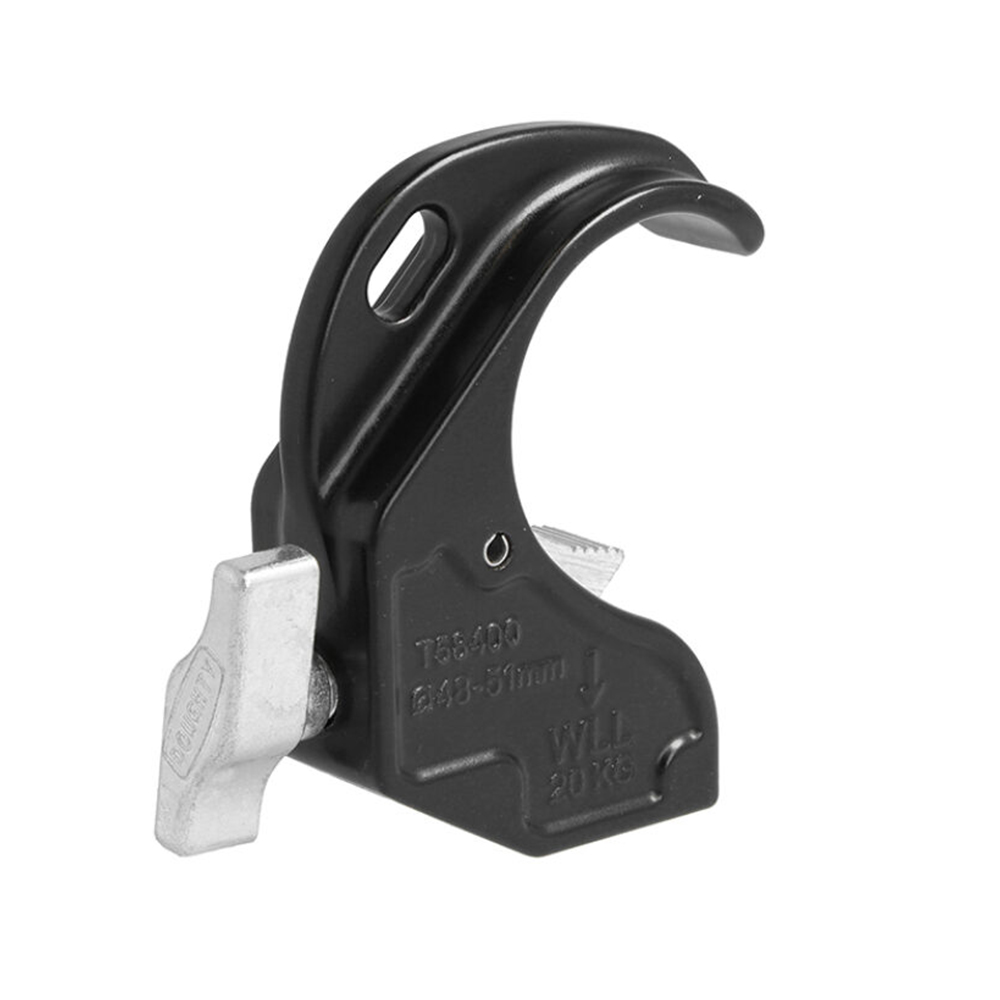

An innovative pressure die cast aluminium clamp that is suitable for 48mm to 51mm diameter tubes. It has a WLL of 20Kg and is 28mm wide. Slotted to hold captive an M10 nut or bolt head. Ideal for use with lightweight lanterns on trussing as it will not damage the cords. The perfect replacement for old style steel hook clamps.
Available in powder coated black.

Additional information

Weight 0.28 kg
WLL

20Kg

Tube Diameter

48-51mm

Finish

Black

Clamp Width

28mm

Downloads

Data Sheet Download
