Doughty – TV Quick Clamp (T57236)

Doughty

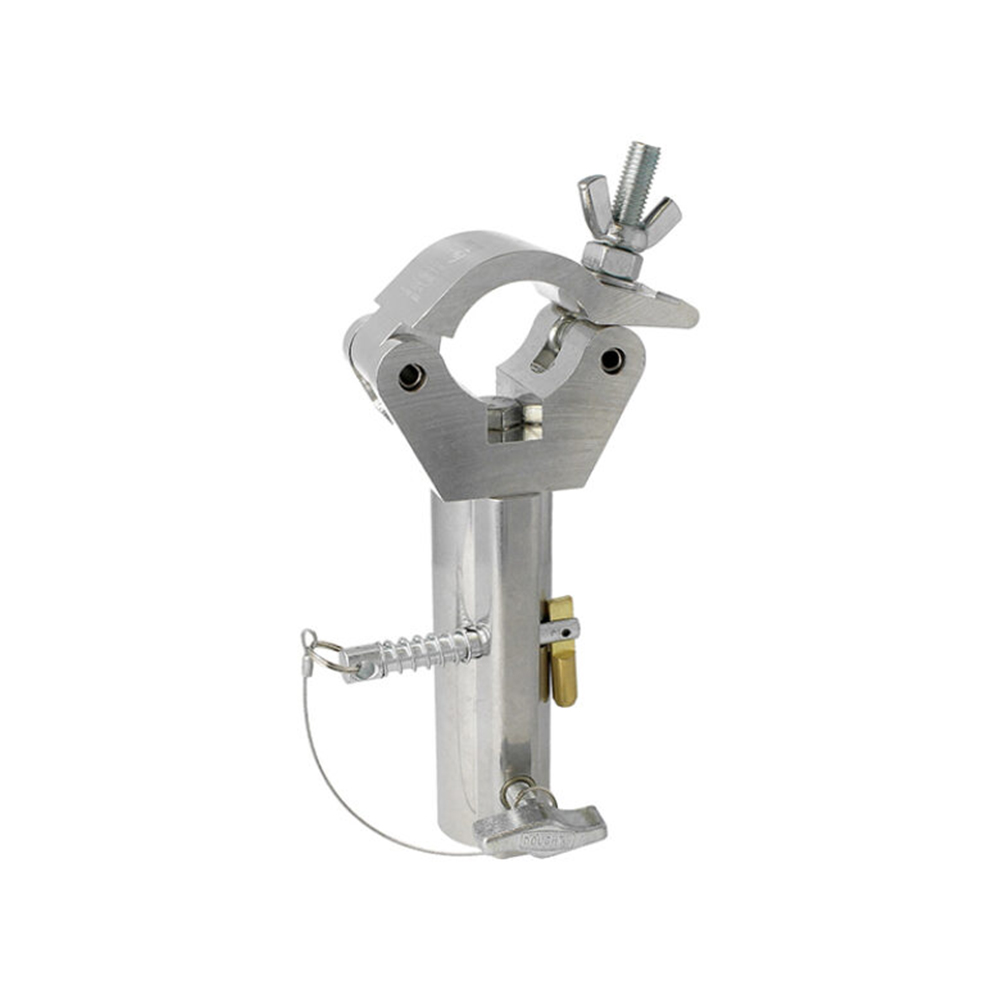

Doughty TV Quick trigger clamp, high tensile aluminium coupler attached to a 29mm receiver. Available in black or polished.

SKU: DOUT57235/DOUT57236 Categories: , , , , , , ,
Clear

Description

A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm diameter tubes and is 50mm (1.97″) wide, factory fitted with a 29mm (1.14″) Spigot receiver designed to accept a 28mm (1.10″) diameter spigot. Supplied with lynch pin for secondary locking allowing 360 degree rotation, this clamp is designed predominantly for use in the TV/Film industry and is often used with Drop Arms and Pantographs. Available in polished silver or powder coated black.

TÜV APPROVED

Additional information

Weight 1.22 kg
WLL

200Kg
Tube Diameters

48mm – 51mm (1.89” – 2.01”)
Clamp Width

50mm (1.97")

Downloads

Data Sheet Download
