Doughty - TV Clamp T57223 SilverDoughty - TV Clamp T57223 Silver

Doughty – TV Clamp (T57224)

Doughty

High tensile aluminium half coupler for tube diameters of 48-51mm with attached 29mm receiver. Available in black and raw for use in film, TV and entertainment.

Clear

Description

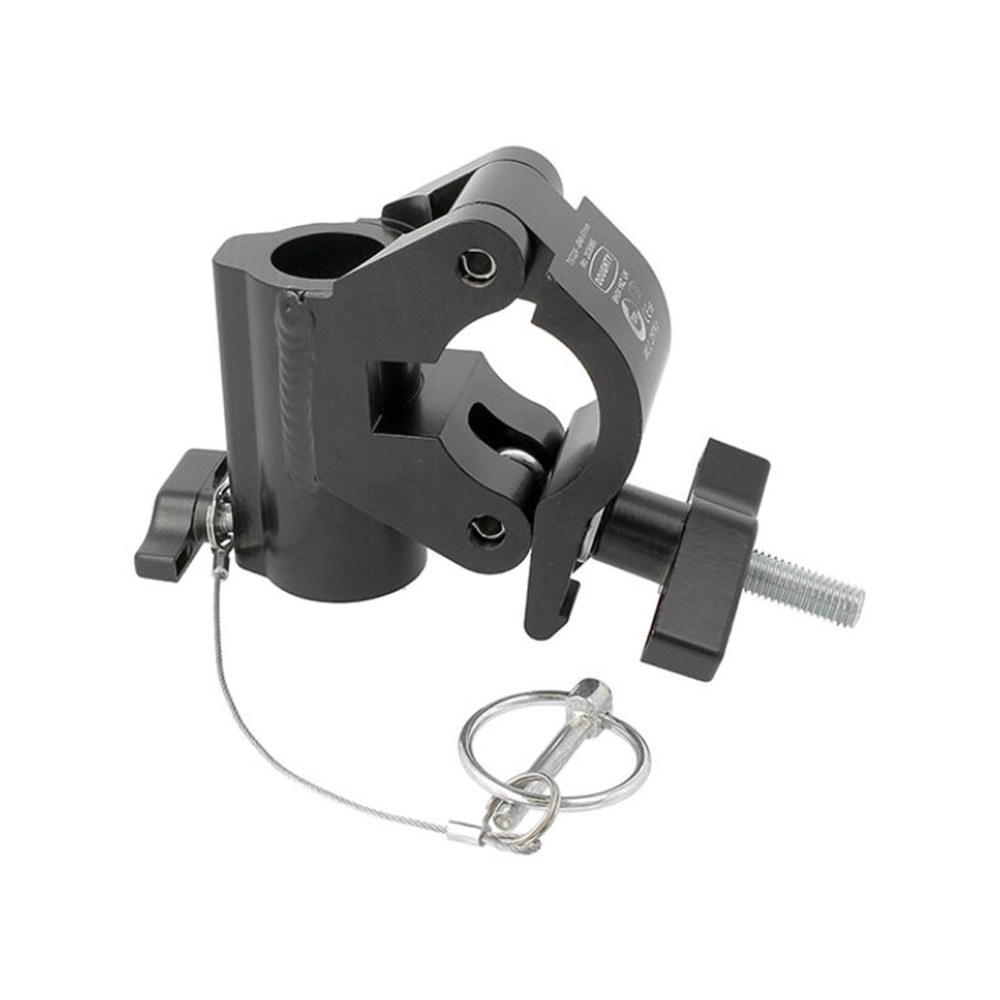

A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes and is 50mm (1.97″) wide cleverly designed to accept a 28mm (1.10″) diameter spigot. Supplied with lynch pin for secondary locking, this clamp is designed predominantly for use in the TV/Film industry and is used with Drop Arms and Pantographs. Available in polished silver or powder coated black.

Additional information

Weight 0.93 kg
WLL

250Kg

Tube Diameters

48mm – 51mm (1.89” – 2.01”)

Clamp Width

50mm (1.97")
