Doughty - Swivel Coupler T57110 RawDoughty - Swivel Coupler T57110 Raw

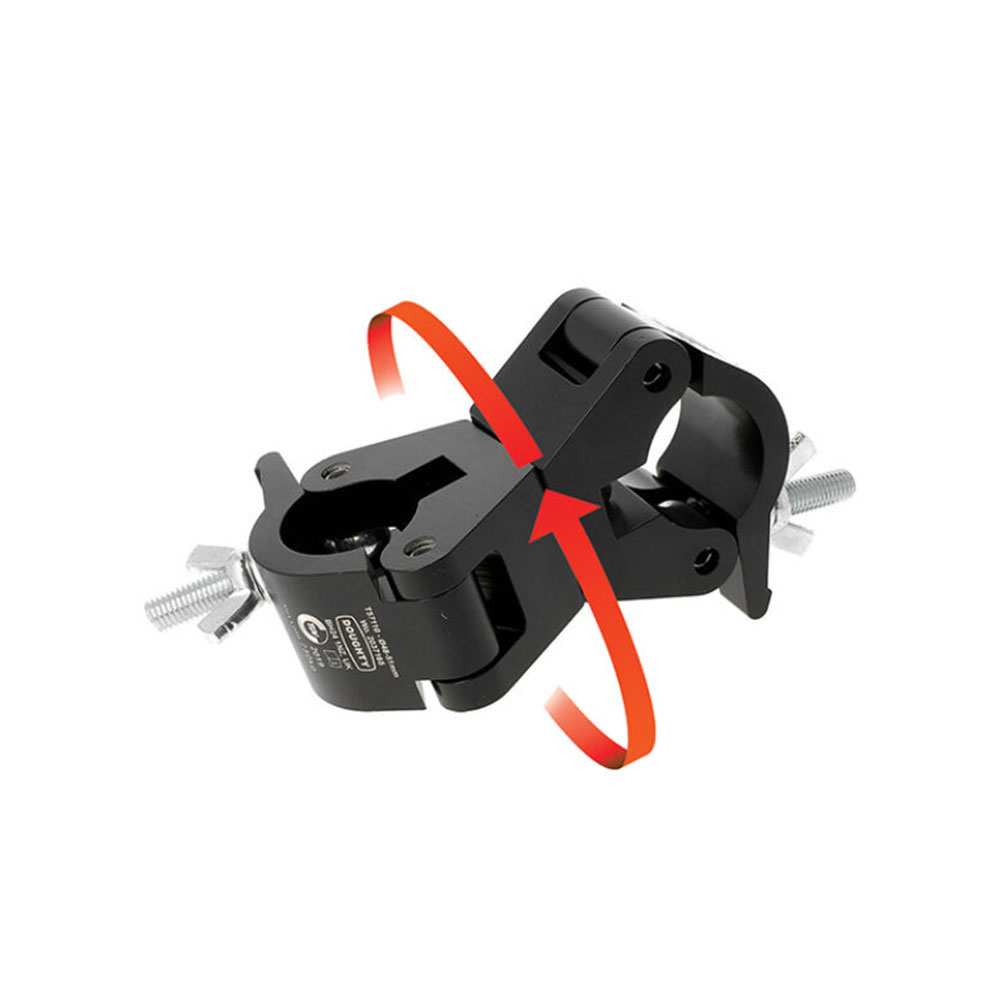

Doughty – Swivel Coupler (T57110)

Doughty

Clamp with 360° of rotation for bar diameters of 48 – 51mm. Made from tough high tensile aluminium extrusion and available in black and polished.

SKU: DOUT57100/DOUT57110 Categories: , , , , , , ,
Clear

Description

The industry standard swivel coupler, consists of a pair of high tensile extruded aluminium clamps back to back and designed to swivel 360 degrees, that are suitable for 48mm to 51mm (1.89” – 2.01”) diameter tubes. It has a WLL of 750Kg and uses a pair of 50mm (1.97″) wide clamps. Ideal for trussing as it will not damage the cords.

Available in polished silver or powder coated black.

Additional information

Weight 1.33 kg
WWL

750 Kg
Tube Diameters

48mm – 51mm (1.89” – 2.01”)
Clamp Width

50mm (1.97")
Approval

TÜV Approved

Downloads

Data Sheet Download
