Doughty - Standard Side Entry Clamp T58782 BlackDoughty - Standard Side Entry Clamp T58782 Black

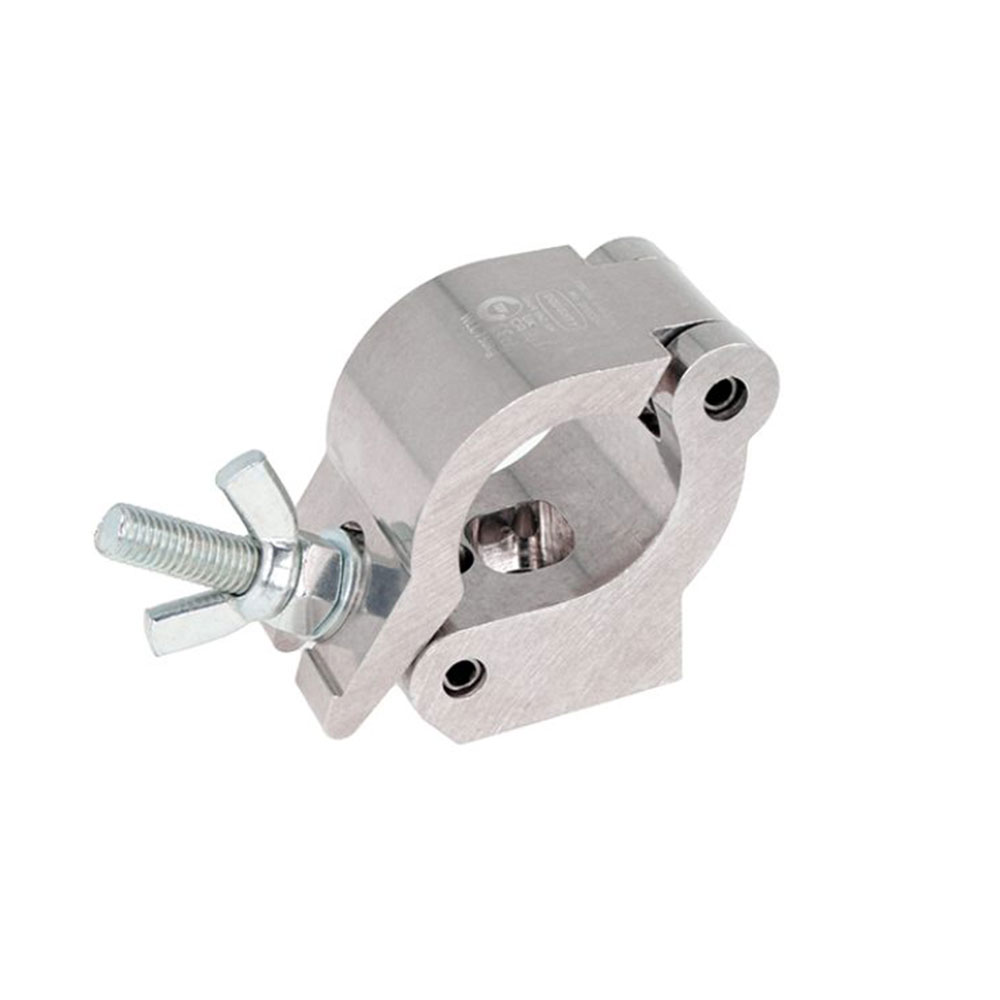

Doughty – Standard Side Entry Clamp (T58782)

Doughty

Clamp with angled jaw fixing, ideal for hanging fixtures where height is limited. For tubes from 48 – 51mm available in black or polished.

SKU: DOUT58780/DOUT58782 Categories: , , , , , , ,
Clear

Description

A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm diameter tubes. It has a WLL of 750Kg and is 50mm wide. Slotted to hold captive an M12 nut or bolt head, it is ideal for where height is at a premium and a clamp that fully encompasses the tube is required. Suitable for cross bracing and suspensions where a firm fixing is required and a claw clamp is not appropriate. Available in polished silver or powder coated black.

Additional information

Weight 0.56 kg
WLL

750 Kg

Tube Diameters

48 to 51mm

Clamp Width

50mm

Fixings

M12 Hole

Downloads

Data Sheet Download
