Doughty - Slimline Quick Trigger TV Clamp T58340 RawDoughty - Slimline Quick Trigger TV Clamp T58340 Raw

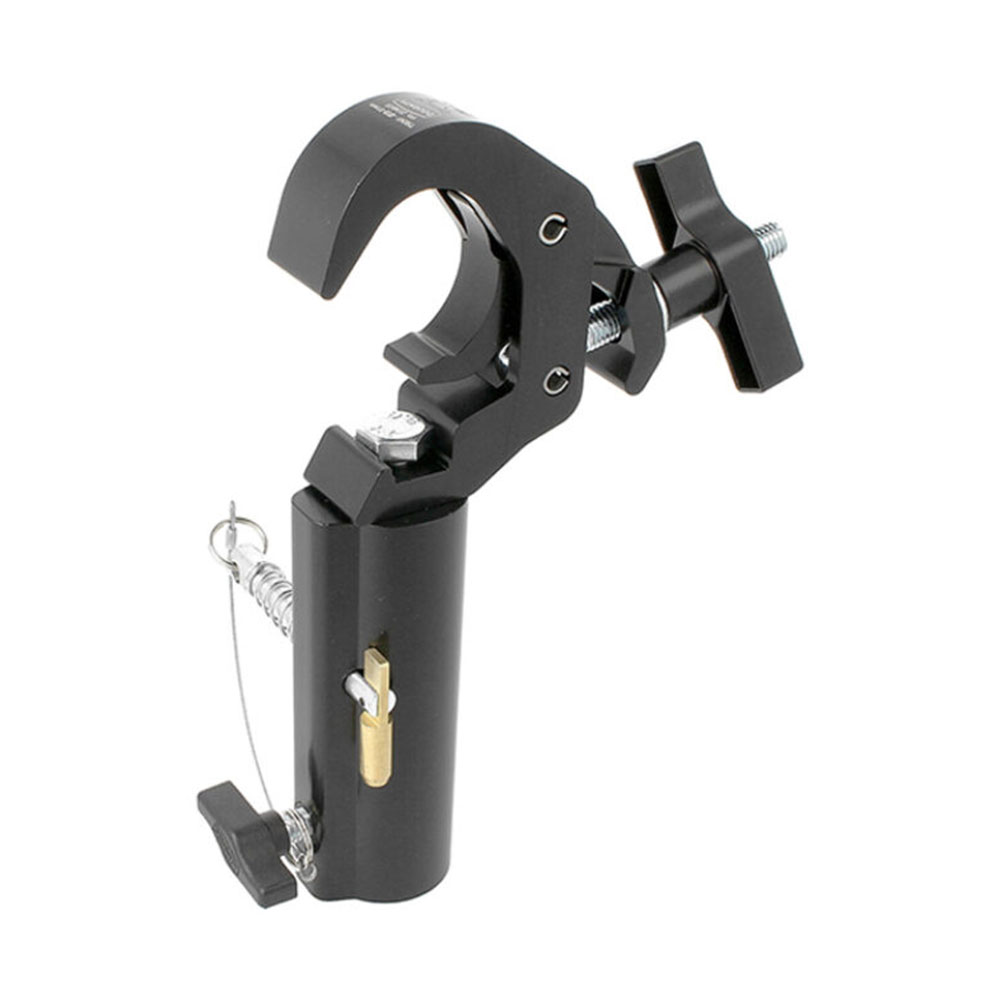

Doughty – Slimline Quick Trigger TV Clamp (T58341)

Doughty

Slimline quick trigger clamp attached to a 29mm receiver available in black or polished. Quick and easy to use, a great choice for TV and film studios.

SKU: DOUT58340/DOUT58341 Categories: , , , , , ,
Clear

Description

A high tensile extruded aluminium quick trigger clamp that is suitable for 38mm to 51mm diameter tubes. It has a WLL of 100Kg and is 30mm wide factory, fitted with a 29mm Spigot receiver designed to accept a 28mm diameter spigot. Supplied with lynch pin for secondary locking allowing 360 degree rotation, this clamp is designed predominantly for use in the TV/Film industry and is often used with Drop Arms and Pantographs. Available in polished silver or powder coated black.

TÜV APPROVED

Additional information

Weight 0.89 kg
WLL

100 Kg
Tube Diameters

38 to 51mm
Clamp Width

30mm
Spigot Diameter

16mm

Downloads

Data Sheet Download
