Doughty - Slimline Hook Clamp T58010 RawDoughty - Slimline Hook Clamp T58010 Raw

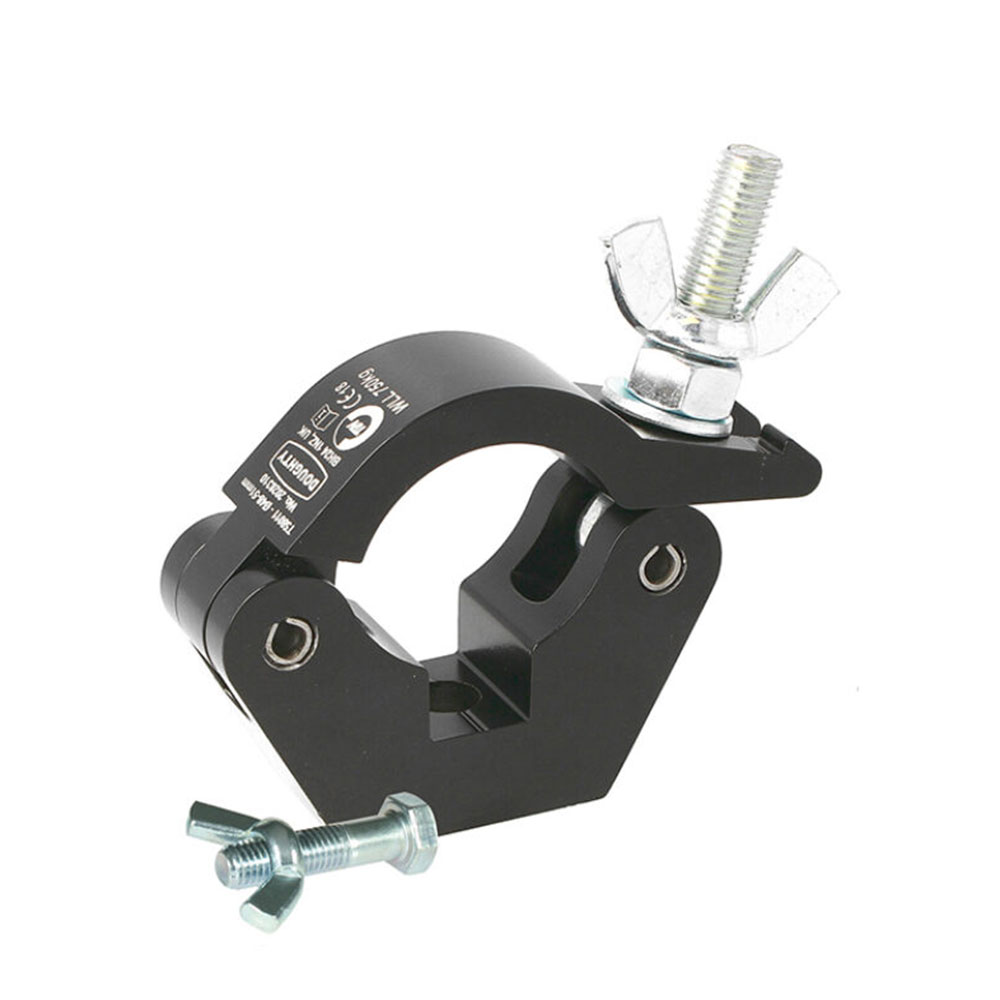

Doughty – Slimline Hook Clamp (T58011)

Doughty

Supplied with chunky M12 hardware and made from high tensile aluminium the hook clamp coupler is a great choice for large luminaries.

SKU: DOUT58010/DOUT58011 Categories: , , , , , , ,
Clear

Description

The industry standard slimline half coupler. A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes. It has a WLL of 750Kg and is 30mm (1.18″) wide. Slotted to hold captive an M12 nut or bolt head and supplied with an M12 X 50 bolt and wing nut. Ideal for trussing as it will not damage the cords. Available in polished silver or powder coated black.

TÜV APPROVED

Additional information

Weight 0.5 kg
WLL

750 Kg

Tube Diameters

48mm – 51mm (1.89” – 2.01”)

Clamp Width

30mm

Fixings

M12 Wing Nut & Bolt

Downloads

Data Sheet Download
