Doughty - Quick Trigger Hook Clamp T58205 SilverDoughty - Quick Trigger Hook Clamp T58205 Silver

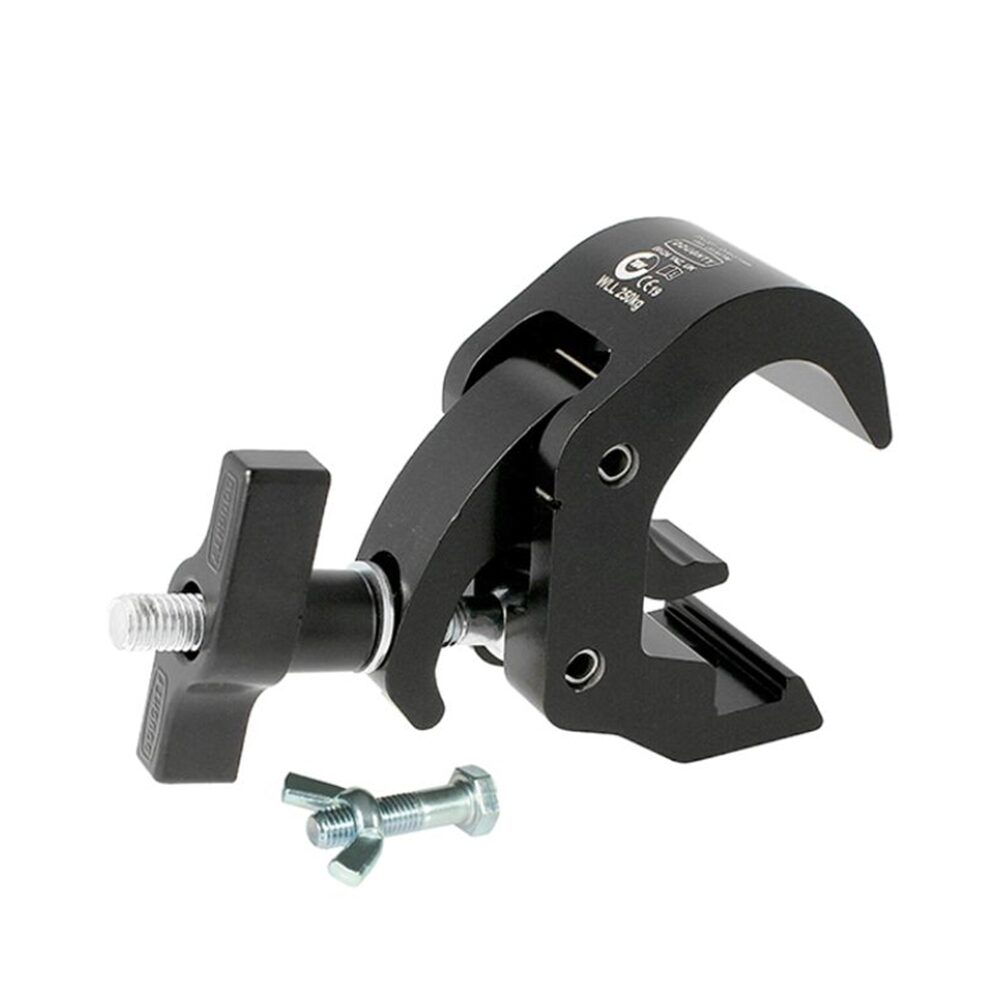

Doughty – Quick Trigger Hook Clamp T58205/T58206

Doughty

Quick trigger hook clamp with large easy grip handle for a secure grip on tube diameters of 38 – 51mm, available in polished or black.

Clear

Description

A high tensile extruded aluminium quick trigger clamp that is suitable for 38mm to 51mm diameter tubes. It has a WLL of 250Kg and is 50mm wide. Slotted to hold captive an M10 or M12 nut or bolt head and supplied with an M12 X 45 bolt and wing nut. Ideal for hanging large moving heads with trussing as it will not damage the cords. Available in polished silver or powder coated black.

Additional information

Weight 0.84 kg
WLL

250Kg

Tube Diameter

38-51mm

Clamp Width

50mm

Downloads

Data Sheet Download
