Doughty - Lightweight Hook Clamp T58106 BlackDoughty - Lightweight Hook Clamp T58106 Black

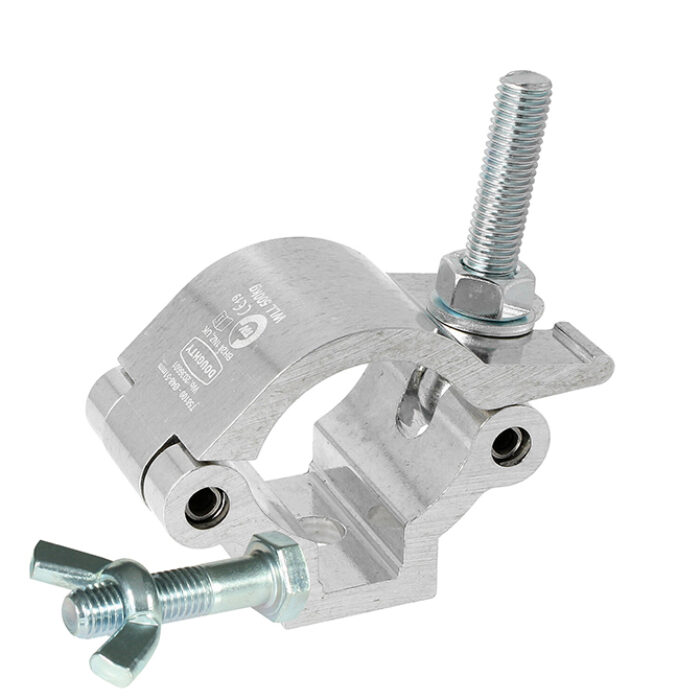

Doughty – Lightweight Hook Clamp (T58106)

Doughty

Light weight half couple made from high tensile aluminium with M12 bolt and wing nut. For tube diameters of 48 – 51mm available in black or polished.

SKU: DOUT58105/DOUT58106 Categories: , , , , , , ,
Clear

Description

A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm diameter tubes. It has a WLL of 500Kg and is 50mm wide. Slotted to hold captive an M10 or an M12 nut or bolt head and supplied with an M12 X 50 bolt and wing nut. Ideal for trussing as it will not damage the cords. Available in polished silver or powder coated black.

TÜV APPROVED

Additional information

Weight 0.42 kg
WLL

500 Kg
Tube Diameters

48 to 51mm
Clamp Width

50mm

Downloads

Data Sheet Download
