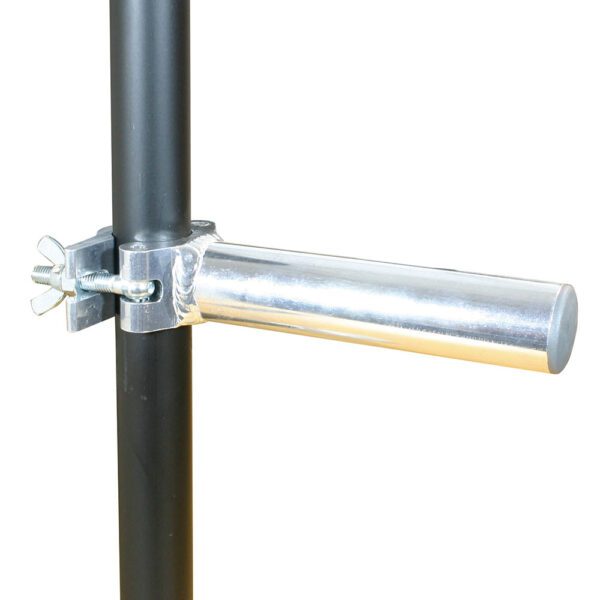

polished boom arm attached to vertical scaffpolished boom arm attached to vertical scaff

Doughty – Boom Arms Polished (T57310)

Doughty

Half coupler boom arm with a 48mm tube diameter, available in various lengths from 250mm – 1000mm.

SKU: N/A Categories: ,
Clear

Description

A range of aluminium Boom Arms available in four sizes. They consist of a length of 48mm aluminium tube welded to a low profile high tensile extruded aluminium half coupler suitable for 48mm to 51mm diameter tube. Ideal for outrigging lanterns from vertical truss or tube.

WLL:

250mm – 100 Kg

500mm – 50 Kg

750mm – 37 Kg

1000mm – 25 Kg

Video

Boom Arm – Manufacture

Boom Arm

A range of boom arms used to suspended items from vertical tubes/truss.

Additional information

Weight N/A
WLL

250mm – 100 Kg
500mm – 50 Kg
750mm – 37 Kg
1000mm – 25 Kg

Note: Be careful of orientation – see downloads for data sheet
Tube Diameter

48mm – 51mm (1.89” – 2.01”)
Finish

Silver
Clamp Width

50mm (1.97")

Downloads

Data Sheet Download
