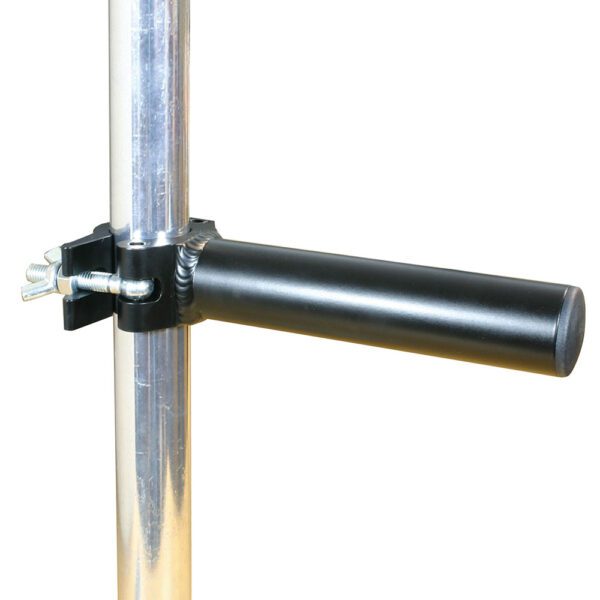

Doughty Boom Arms in Black attached to vertical scaff barDoughty Boom Arms in Black attached to vertical scaff bar

Doughty – Boom Arms Black (T57311)

Doughty

48mm diameter boom arm attached to half coupler available in a range of lengths from 250-1000mm in black.

SKU: N/A Categories: ,
Clear

Description

A range of aluminium Boom Arms available in four sizes. They consist of a length of 48mm aluminium tube welded to a low profile high tensile extruded aluminium half coupler suitable for 48mm to 51mm diameter tube. Ideal for outrigging lanterns from vertical truss or tube.

TÜV APPROVED

SWL:

250mm – 100 Kg

500mm – 50 Kg

750mm – 37 Kg

1000mm – 25 Kg

Note: Be careful of orientation – see Data Sheet

Additional information

Weight N/A
WLL

250mm – 100 Kg
500mm – 50 Kg
750mm – 37 Kg
1000mm – 25 Kg
Tube Diameter

48-51mm
Finish

Black
Clamp Width

50mm

Downloads

Data Sheet Download
