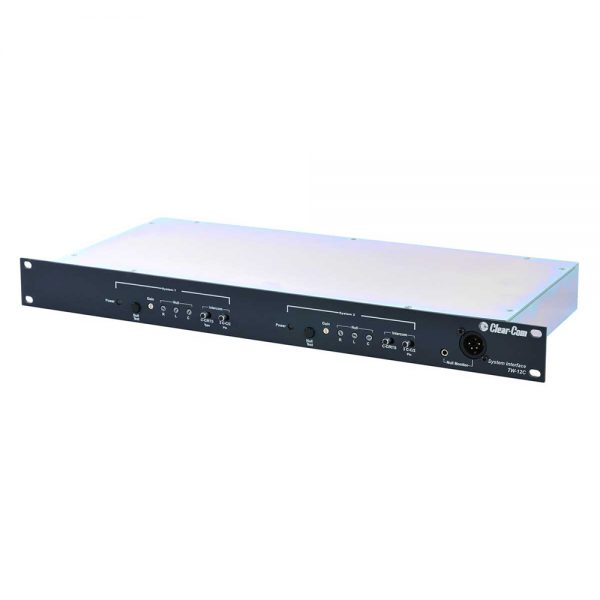

Clearcom – TW-12C

Clearcom

Clear-Com/RTS System Interface

SKU: CLETW-12C Categories: , , , ,

Description

Two identical 2-wire-to-4-wire hybrid networks break the ground loops that occur when two systems are run from separate power sources.

Built-in setup tone and range of null adjustment controls lets users quickly set up the panel and allow adjustments while the system is operating.

Feature Quick View

  • Clear-Com/RTS System Interface
  • System isolation for: Clear-Com to Clear-Com, Clear-Com to RTS, RTS to RTS
  • Eliminates grounding problems between intercom systems
  • Matches gains between systems
  • Passes through and translates signaling
  • Hybrid nulling up to 40 dB
  • Built-in setup tone
  • Powered directly from connected intercom system

Additional information

Weight 2.56 kg
Line Characteristics

Max Level Before Clipping : >=3dBu Impedance: >=10KΩ
Signaling

Receive: =11VDC
RTS Format

Line Characteristics Max Level Before Clipping : >=5dBu Impedance: >=10KΩ
General Characteristics

Frequency Response: Partyline – Partyline: 200-8KHz
Signaling Tone

Send frequency: 20kHz ±100Hz Receive frequency: 20kHz ±500Hz Send level: >=-6dBu Receive level: <=-25dBu
Distortion

Partyline – Partyline: <=0.2%
Max Gain

Clear-Com – RTS: >=9dB Clear-Com – Clear-Com: >=4dB RTS – Clear-Com: >=-1dB RTS – RTS: >=4dB
Min Gain

Clear-Com – RTS: <=1dB Clear-Com – Clear-Com: <=-4dB RTS – Clear-Com: <=-9dB
Power Requirements

Input Voltage Range: 20-30VDC Input Current (average): <=50mA
Dimensions

1.75 x 19 x 7.25 (HxWxD) (45 x 483 x 185 mm)
