Clearcom – RS-701

Clearcom

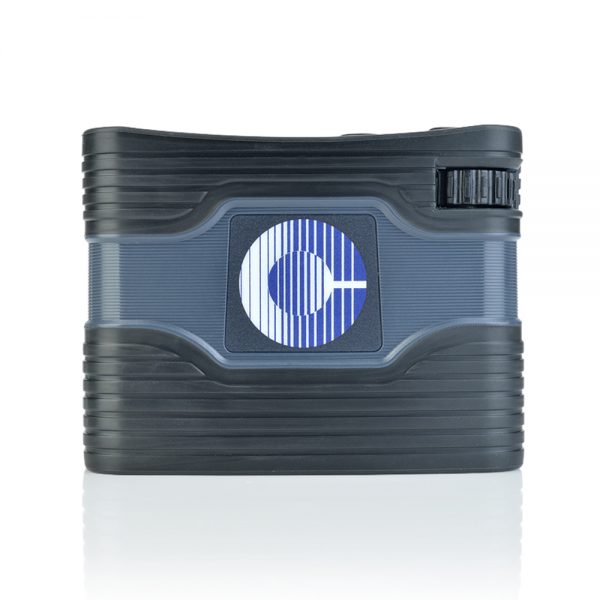

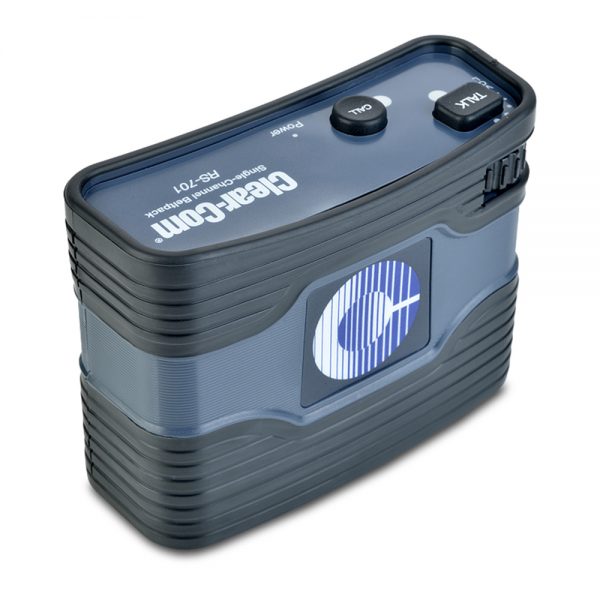

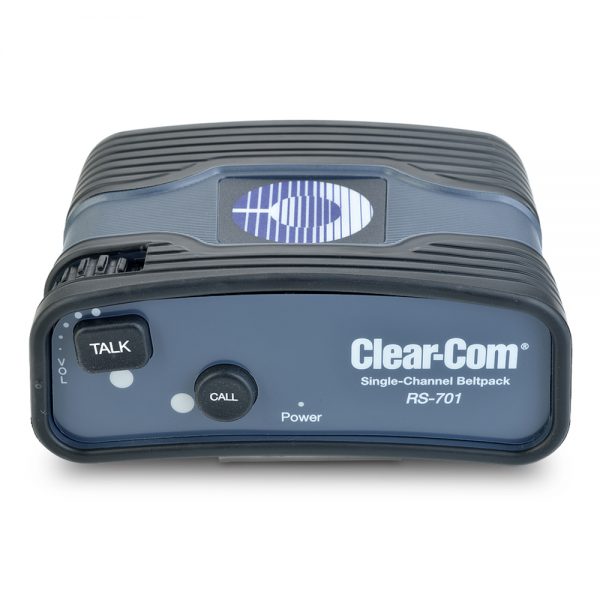

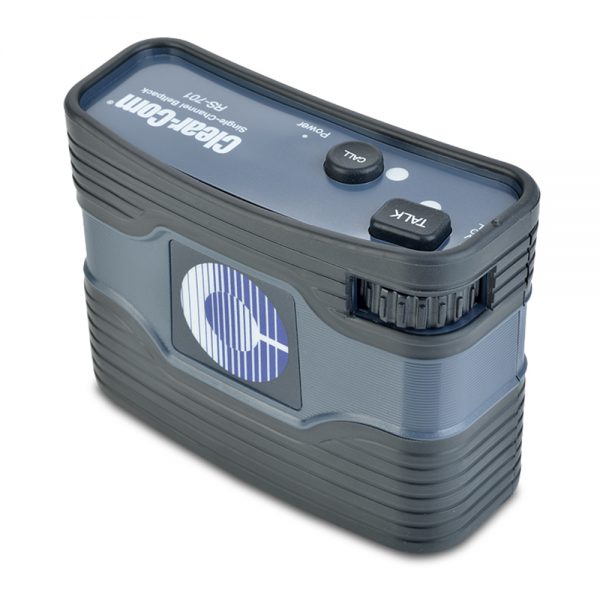

Single-Channel Beltpack with XLR-3 Connector

SKU: CLERS-701 Categories: , , , ,

Description

A concealed DIP switch panel on the back of the beltpack allows users to easily adjust control features such as switching between headset types, setting volume levels for headphones, adjusting overall volume settings, enabling LED signals, or adjusting the functions of the Call and Talk keys

No matter what Clear-Com Partyline system, these beltpacks are fully compatible with current and previous Clear-Com analog partyline systems.

Colorful LEDs on the top of the beltpack tells users if the beltpack is powered, if the microphone is active or if the beltpack is receiving a Call signal.

Designed after the durable RS-500 Series, these rugged, light-weight beltpacks can withstand the inevitable drop or tumble of everyday production environments.

Feature Quick View

  • Single-Channel Beltpack with XLR-3 Connector
  • Visual LED indicators on top of keypad
  • Tactile buttons for Call and Talk
  • Recessed rotary controls for Volume with end stops
  • Concealed, programmable DIP switches
  • Fully compatible with current and previous Clear-Com analog partyline systems
  • Low operating current for more beltpack daisy-chaining
  • Rugged and strong construction
  • “Clear-Com Sound” for intelligible audio

Additional information

Weight 0.3 kg
Microphone Pre-Amplifier

Mic to Line (without limiter acting) Frequency Response: 280 – 15k Hz ± 3dB Microphone output to line – Audio Level (-50dBm Electret input): -9dBm Microphone output to line – Distortion: 65dB
Headphone Pre-Amplifier

Frequency Response – Line to Headphone: 150 – 20k Hz ± 3dB Headphone input from line – Audio Level (-9dBm Electret input): 3.5dBm Headphone input from line – Distortion: 50dB Earphone to Mic – Crosstalk: >80dB Sidetone – Adjustment Range (-80db mic input): >45dB
Keypad Indicators

Power: Green LED Talk: Green LED Call: Orange LED
Connectors

Intercom Line: (2) 3-pin XLR–M–F Ch. 1 2-Wire
Intercom Channel

Pin 1: Common Pin 2: PL Power (+28VDC) Pin 3: Line (Audio) Headset: 4-pin XLR–M
Headset Connector

Pin 1: Mic – (Mic Common) Pin 2: Mic + Pin 3: Spkr- Pin 4: Spkr+ (and 0.5*VCC DC, supply between Pin 4 and Pin 1)
Power

Input Voltage Range: 12-30 VDC Input Current (Idle): <=12mA Input Current (Max): <=28mA
Call Voltage

16.5 VDC Minimum Voltage Needed: 3.3V
Environmental

32˚F – 158˚F (0˚C – 70˚C)
Dimensions

3.4 x 4.5 x 1.7 in (HxWxD) (86 x 114 x 43 mm)

Downloads

Spec Sheet Download
Quick Start Guide Download
