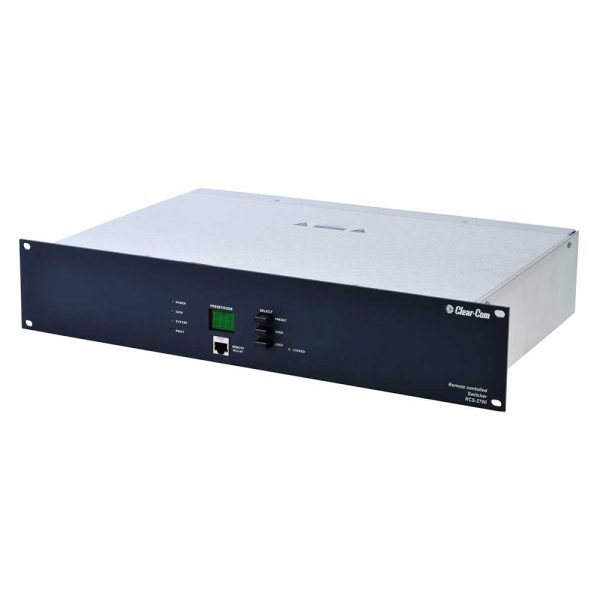

Clearcom – RCS-2700

Clearcom

8-Source x 24-Destination Programmable Assignment Panel

SKU: CLERCS-2700 Categories: , , , ,

Description

Remotely switch partyline assignments for medium to large systems with sources from a partyline interface or matrix system to a beltpack or other interface channel.

Configure program assignments with a virtual panel on your PC in real-time, when connected, or offline, by saving pre-set information in non-volatile memory.

Feature Quick View

  • Expandable up to 15 sources x 72 destinations
  • 8-Source x 24-Destination Programmable Assignment Panel
  • Stores 14 presets in non-volatile memory
  • Multiple systems can be controlled from the same PC
  • Latching relays keep current draw extremely low
  • TW compatible
  • Front panel security lockout
  • Easy-to-wire Euro-terminal blocks for rear panel connections
  • External contact closure input for remote preset selection

Additional information

Weight 2.5 kg
Audio

Partyline Intercom: 20 – 20KHz (passive switching)
Crosstalk

<-70 dB
Frequency Response

Port-Port: 20Hz – 20KHz
Power Requirements

Input Voltage: 27-33 VDC Input Current (max)p; <= 80mA
Dimensions

3.5 x 19 x 10.75 in (HxWxD) (89 x 483 x 273 mm)
Sizes

Single frame, 1×2, 2×1, 2×2, 1×3, 2×3
RCS-WIN hardware requirements

Pentium I or better 16 MB RAM, 12 MB Hard Disk Space Monitor: 800 X 600 Minimum Resolution
RS-232 Data

Baud rate: 19.2 Kbps Start Bits: 1 start bit Stop Bits: 1 stop bit Parity: no parity
Switching Matrix Latching Relays

Switching Current: <=2A
Euro-block pins for:

Sources Source expansions Source power Destinations Destination power RCS power Source 8 continuation Data links Matrix/contact closure
Environmental

32˚ to 122˚ F (0˚ to 50˚ C)
