Description
In the event of a short circuit or current overload, the exclusive Intelligent Fault/Overload Sensing (IFOS) will dynamically increase the time period before attempting another reset until the fault or overload is corrected, therefore extending the life of the unit. There is no need to disconnect stations for the power supply to reset.

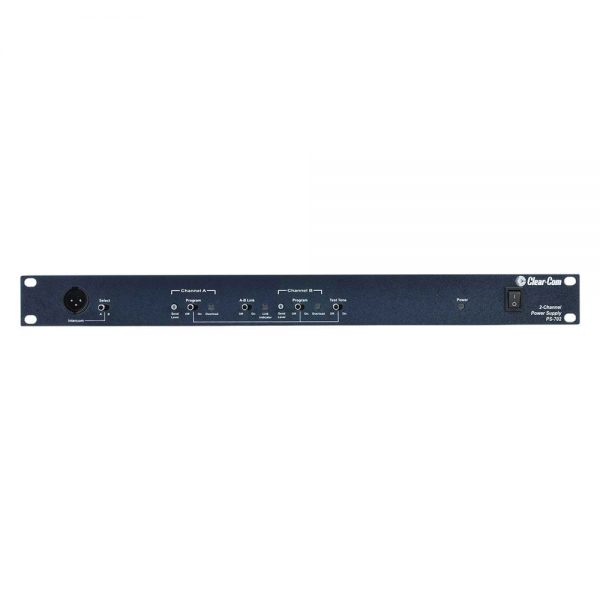

With the intercom line jack on the front of the panel, users can easily switch between channels and set individual channel levels when needed.
Two or more units can be connected in parallel in order to increase system capacity or provide a redundant backup in case of power faults or overloads.
Feature Quick View
- 2-Channel 2 Amp Power Supply
- Provides up to 2 amps at 30 Volts
- Supports up to 40 beltpacks, 10 speaker stations, or 12 headset stations
- Full current capacity can be divided between the two channels
- Exclusive Intelligent Fault/Overload Sensing (IFOS) for system reset
- A+B Link switch for single-channel operation
- Built-in test tone generator for set up and diagnostics
- UL listed and CE certified
- Line and load regulated
- Short-circuit protected
