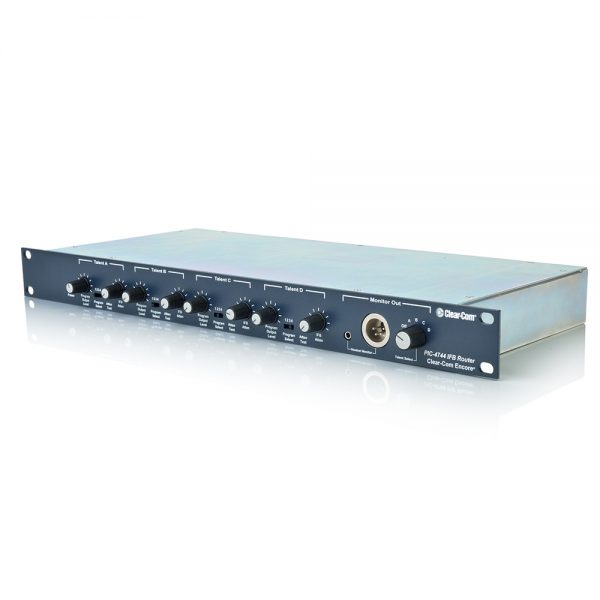

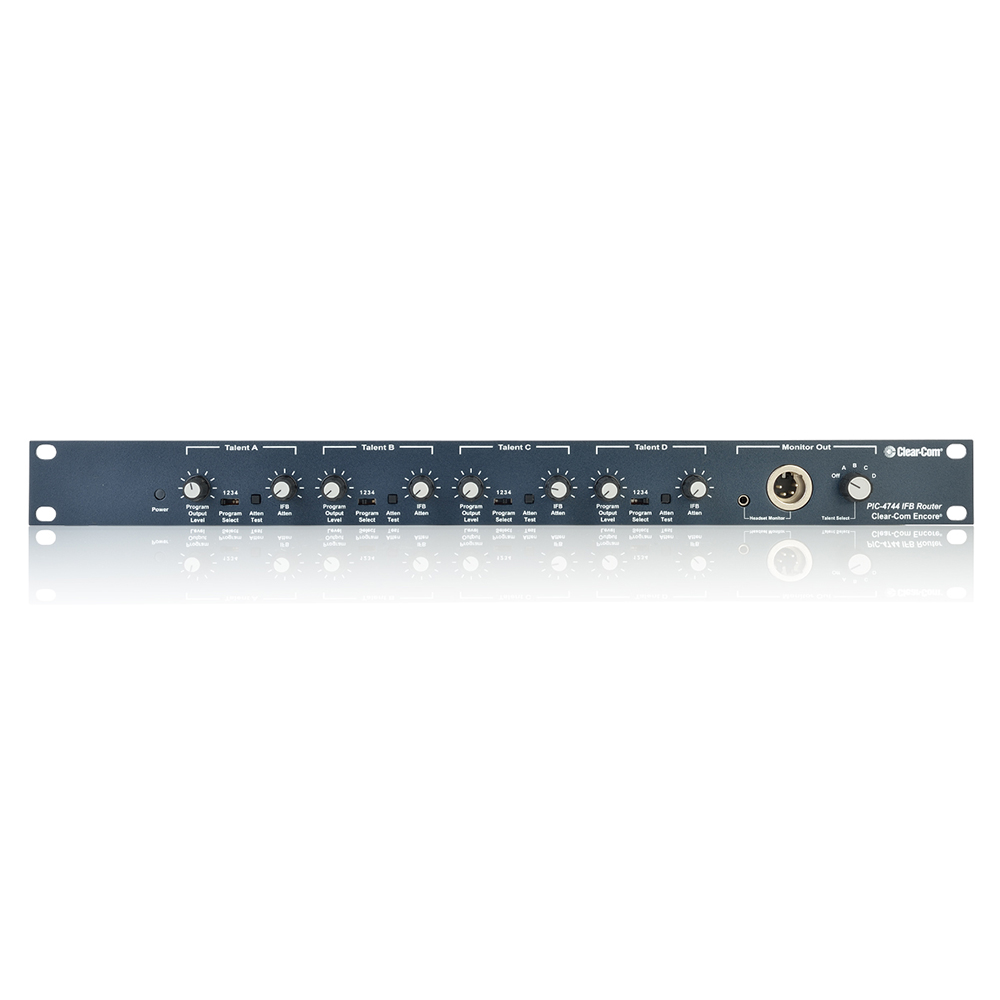

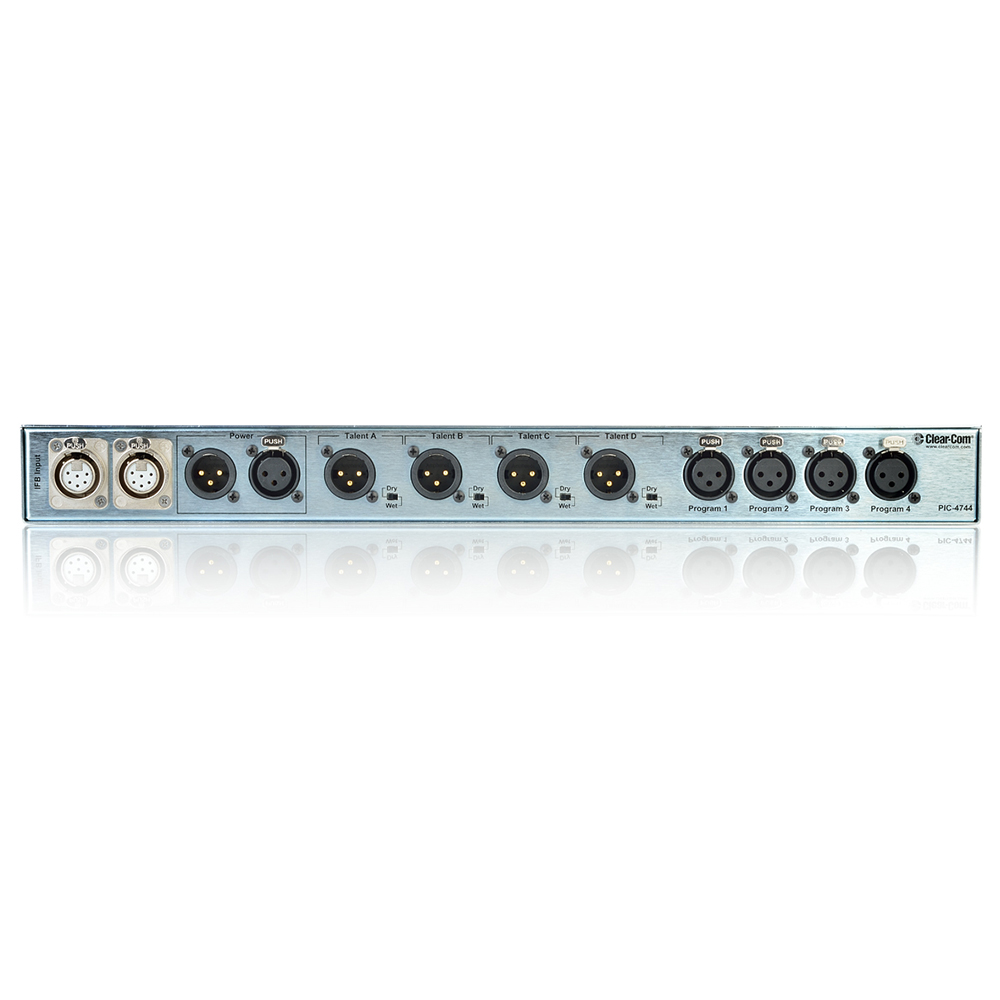

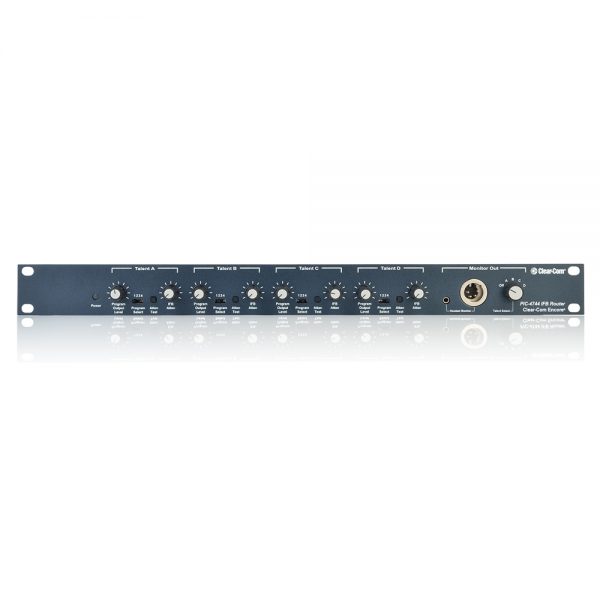

Clearcom – PIC-4744

Clearcom

Program Interrupt and IFB Router

SKU: CLEPIC-4744 Categories: , , , ,

Description

Allows talent to monitor the ongoing program while permitting directors and producers to interrupt or dip the program audio with cues or instructions.

Feature Quick View

  • Program Interrupt and IFB Router
  • Four separate Program channels and Talent channels
  • Wet/Dry switch to access 3rd party wireless IFB, console input, recording devices, etc.
  • Program attenuation individually adjustable for each talent output
  • Tally lights indicate IFB channels in use
  • All IFB button simultaneously access all IFB channels
  • Powered by the intercom line

Additional information

Weight 2.6 kg
Program Line Input

Maximum Level before Clipping: >= 20dBu Input Impedance: >= 5KΩ

Audio

Output Level for Talent: Clear-Com Partyline Output Level for Talent: Clear-Com Partyline Level (approx. -10dBu) PGM Source Adjustable Range: +20dBu Attenuation Adjustable Range: 50dBu

Frequency Response

Panel Input – Talent: 200 – 18KHz +3dB

Max Distortion

Program Input – Talent: <= 0.1%

Noise

Program Input – Talent: < -85dBu

Power

Input Voltage Range: 20-30 VDC Input Current: <= 90mA

Environmental

32˚F – +122˚F (0˚C – +50˚C)

Dimensions

1.75 x 19 x 7.5 in (WxHxD) (44 x 483x 190 mm)
