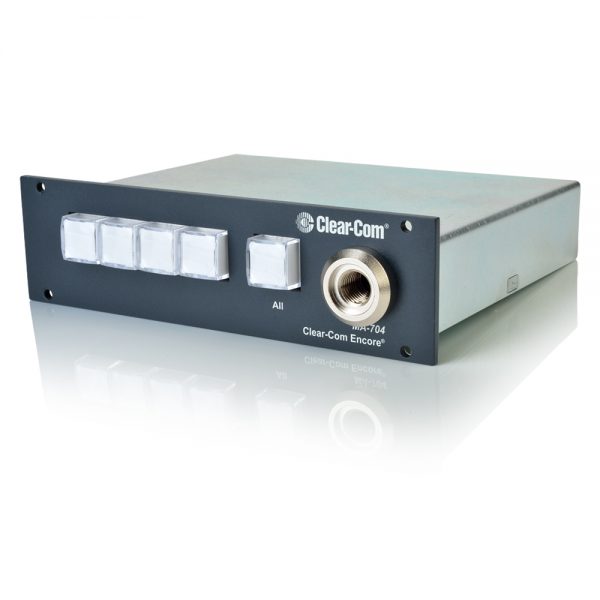

Clearcom – MA-704

Clearcom

Program Interrupt and IFB Master Control and Access Station

SKU: CLEMA-704 Categories: , , , ,

Description

Allows talent to monitor the ongoing program while permitting directors and producers to interrupt or dip the program audio with cues or instructions.

Feature Quick View

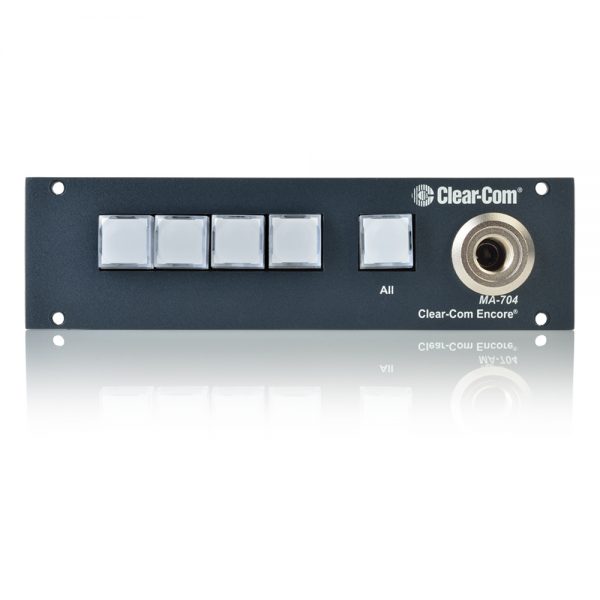

  • Program Interrupt and IFB Master Control and Access Station
  • Four Talent channels
  • All IFB button simultaneously access all Talent channels
  • Tally lights indicate IFB channels in use

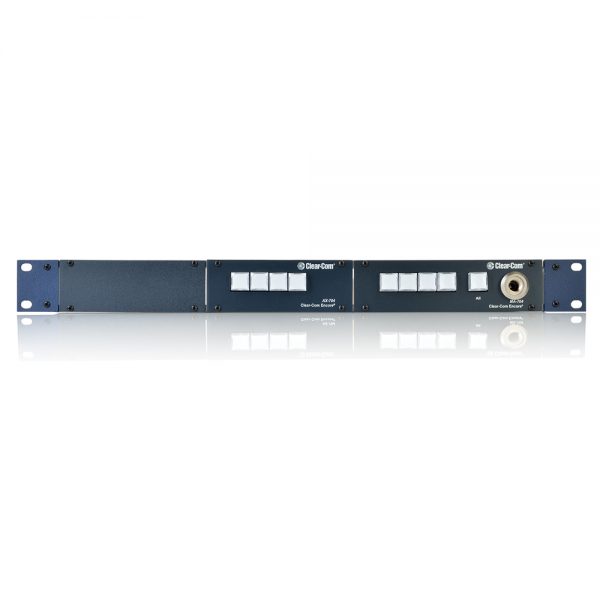

  • Optional rack mount kit for up to 12 talent access buttons in a 1RU
  • Powered by the intercom line

Additional information

Weight 0.78 kg
Panel Microphone Input

Input Type: Electret Input Impedance: >=2KΩ Mic Limiter Threshold: 0dB ± 3dB Mic Limiter Range: >= 15dB
Frequency Response

Panel Mic – Talent: 200 – 18KHz ± 3dB Extension Line – Talent: 200 – 18KHz ± 3dB
Max Distortion

Panel Mic – Talent: <= 0.5% Extension Line – Talent: <= 0.1%
Noise

Panel Mic – Talent: < -65dBu Extension Line – Talent: < -85dBu
Max Gain

Panel Mic – Talent: <= 40dB Program Input – Talent: <= -45dB
Power

Input Voltage Range: 20-30 VDC Input Current (Idle):<= 140mA Input Current (Max):<= 180mA
Environmental

32˚F – +122˚F (0˚C – +50˚C)
Dimensions

1.75 x6.3 x 5.5 in (HxWxD) (44 x 160 x 140 mm)
