Description
Feature Quick View
- 2-Port Portable Unit for Linking 4-wire with GPIO audio
- Intercom-over-IP: routing intercom and audio signals over IP networks
- Connect up to 6 LQ devices together over LAN, WAN, Internet
- Remotely connect up to 8 IVC-32-HX or E-IPA-HX ports per device
- Connects with matrix intercom systems, analog telephone circuits, two-way radio gateways and audio consoles
- Supports up to 8 Agent-IC clients per LQ device (license required)
- Supports up to 8 SIP client connections per LQ device (license required)
- Connects to HelixNet via HLI-ET2 over LAN or WAN
- Add up to 24 ports of audio I/O per HelixNet Main Station by connecting to LQ Series
- 4-wire ports support data and audio for Clear-Com Eclipse and Drake 4000 panels
- Adjustable bandwidth on a per port basis

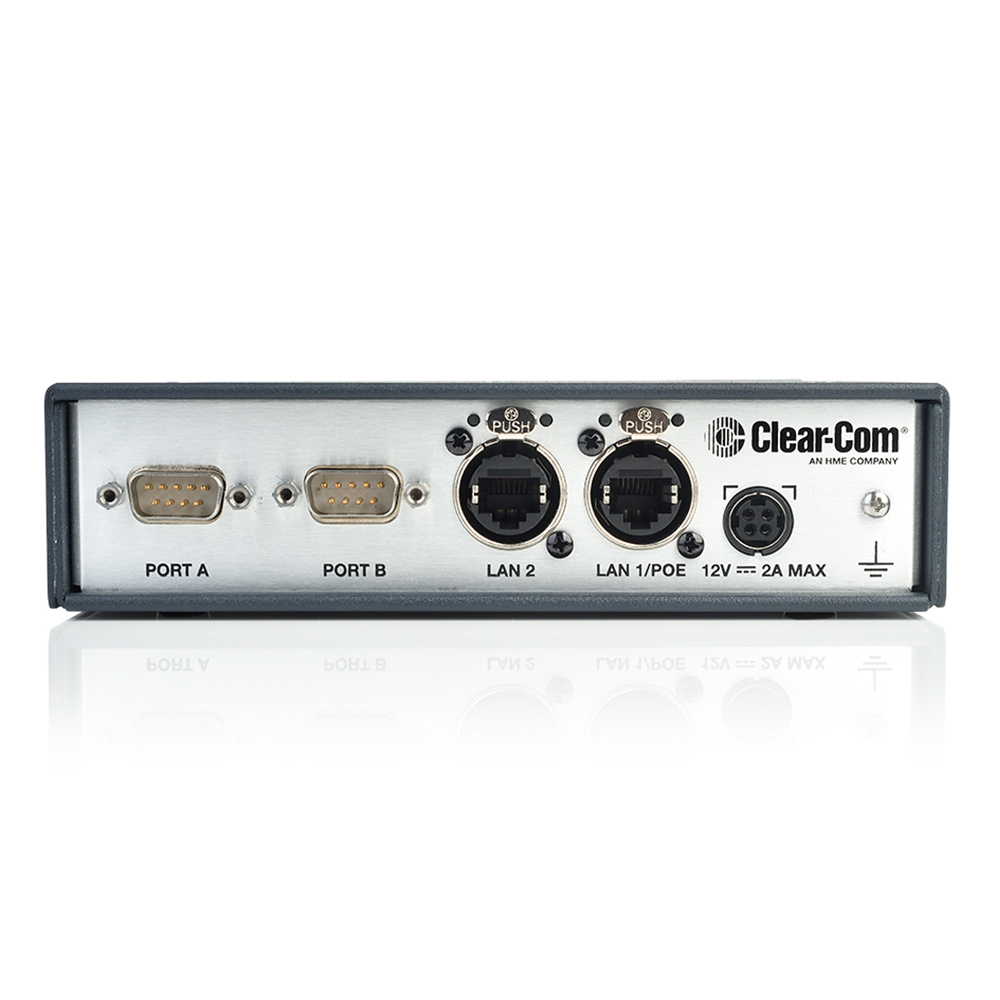

- Connectors: Network/LAN: EtherCON/RJ45 (female); 4-wire with GPIO Audio I/O: 9-way D-type (male)
- Network-friendly OPUS Codec
- Browser-based Core Configuration Manager application
- Networked Control Events for multi-unicast one-to-many routing
Video
LQ Series IP Interfaces
The LQ Series are compact interface devices for linking 2-wire and/or 4-wire intercom systems over IP networks. It’s the easy to use, cost-effective alternative for connecting visiting systems or ad hoc users. Linking simplified.
