Description

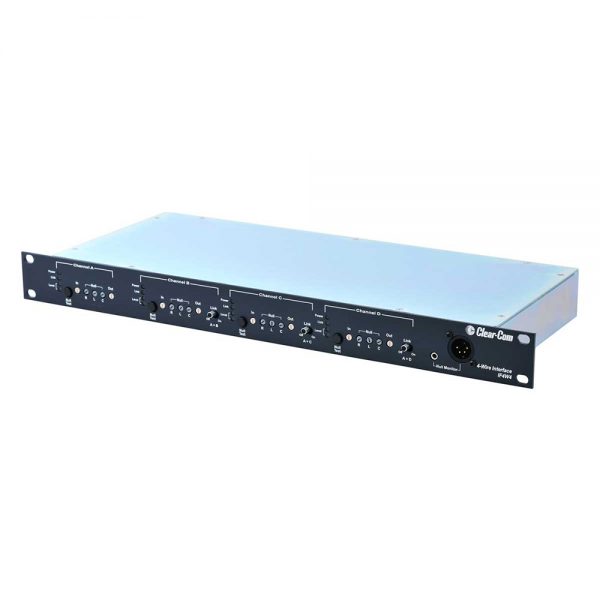

Front panel controls allows quick adjustments to parameters for each interface module, optimizing the interface between the 4-wire device and the partyline.

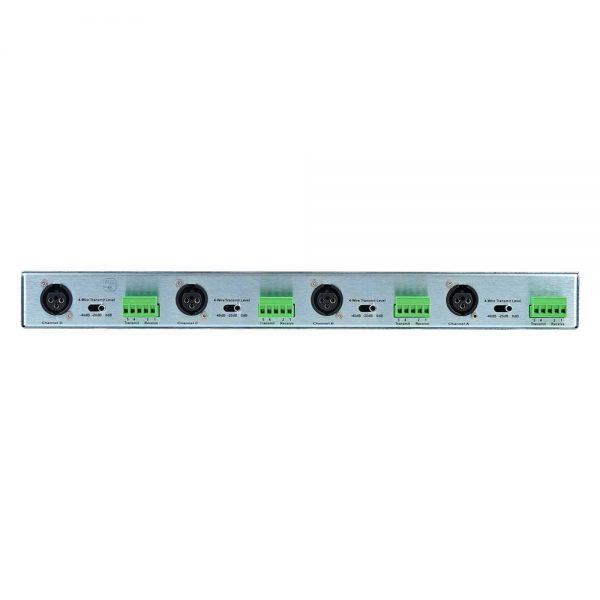

The terminal block provides a pair of connections for both transmit and receive signals with the XLR-3M connector providing the link between the interface and the Clear-Com intercom line. The test jack on the front panel has a built-in oscillator to quickly null the transmit/receive hybrid.
Feature Quick View
- 4-Channel 4-Wire to Partyline Interface
- Interfaces TV cameras, 2-way radios, fiber circuits and other 4-wire devices to Clear-Com partyline
- Individual Transmit Receive and Null controls
- Transmit output switchable between mic and line level
- Built-in test jack and oscillator for quick nulling
- Selective partyline capability
- Accepts balanced or unbalanced 4-wire input
- Transformer isolated
- Terminal block and XLR connectors for each interface
- Powered by the intercom line
