Clearcom – HMS-4X

Clearcom

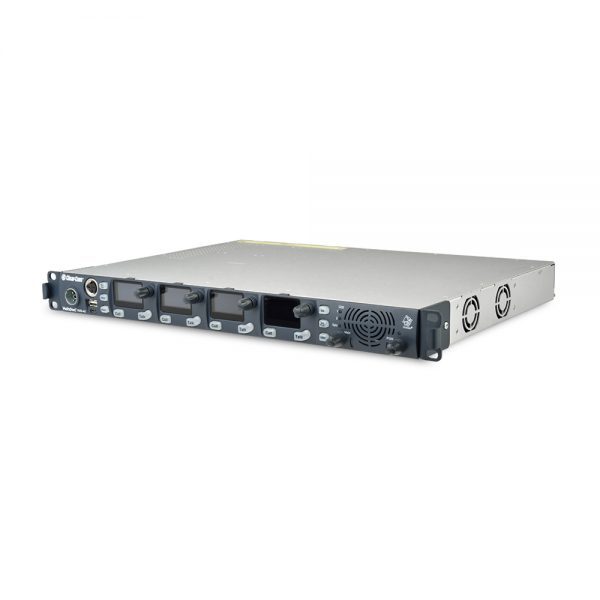

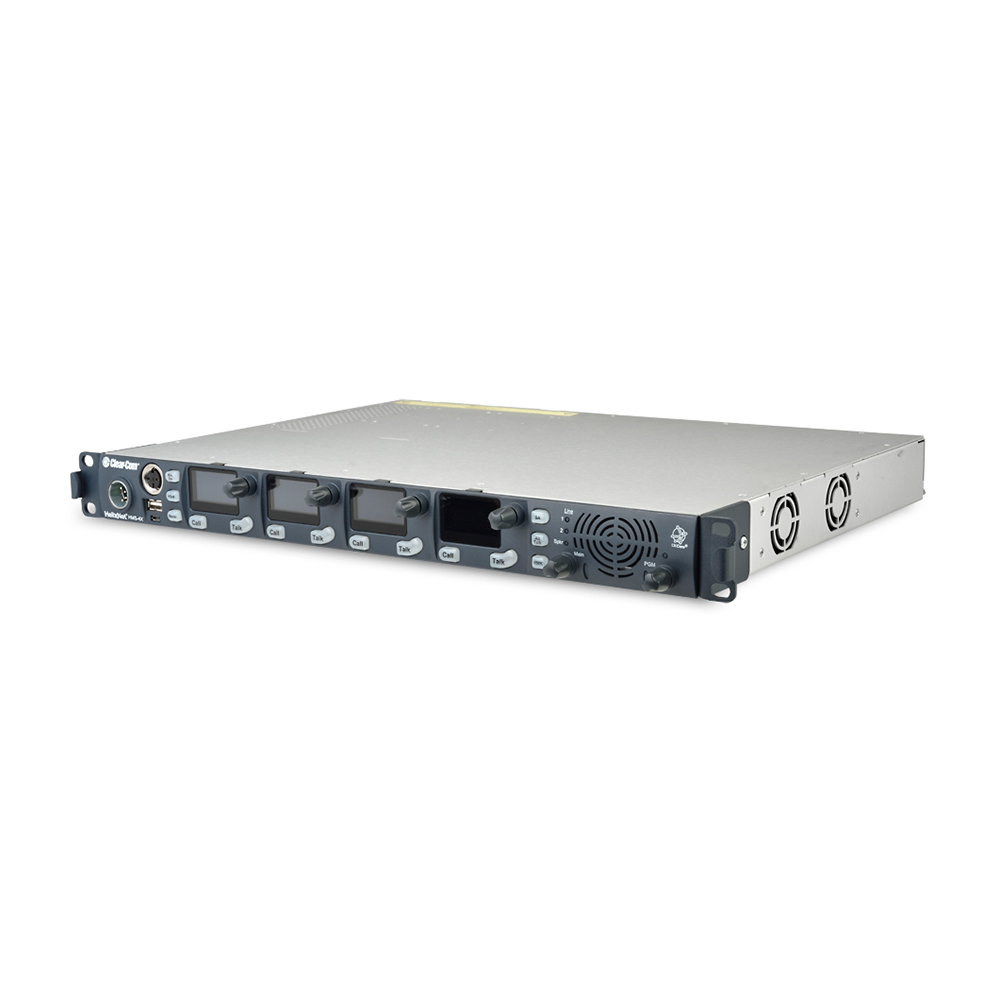

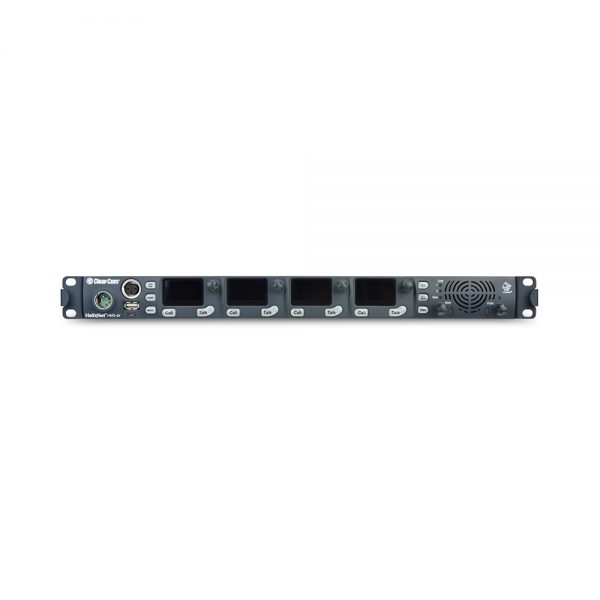

4-Channel 1RU Digital Main Station

SKU: CLEHMS-4X Categories: , , ,

Description

Feature Quick View

  • 4-Channel 1RU Digital Main Station
  • Up to 64 endpoints supported on one system (stations/ports)
  • Add up to 24 ports of audio I/O per Main Station by connecting to LQ Series
  • Up to 3 main stations and 3 LQ-R Series devices can be linked over LAN and WAN
  • Quickly connect Agent-IC mobile clients with existing HelixNet users via LQ Series
  • SIP/VoIP calling from HelixNet via LQ Series
  • Core Configuration Manager (CCM) browser-based tool (with software v3.0 or higher)
  • Plug-and-go installation with hardwire auto-discovery
  • USB-A and USB Micro-AB ports
  • Built-in expansion ports for optional interface modules (Ethernet, Fiber, 2-wire, 4-wire)
  • Program input
  • Remote Mic Kill on all connected devices
  • Speaker and Program controls
  • GPIO-DB-25 (4 Opto-Iso GPI, 4 GPO Relays)



Video

Turn HelixNet Main Stations into Expansion Panels (Instructional)

Did you know that you can use a HelixNet Main Station as an expansion panel? This instructional video shows you how to set up your HMS-4X to act as an expansion panel for a host Main Station.

Additional information

Weight 2.65 kg
Linking

Up to three Main Stations may be linked using any combination of HLI-ET2 Ethernet or HLI-FBS Fiber modules. Up to 3 LQ-R Series devices can be linked using the HLI-ET2 module. All linking is via IP over LAN/WAN connections.
Channels

12 or 24 intercom channels. One local and any networked program audio feeds (Assignable to intercom channels)

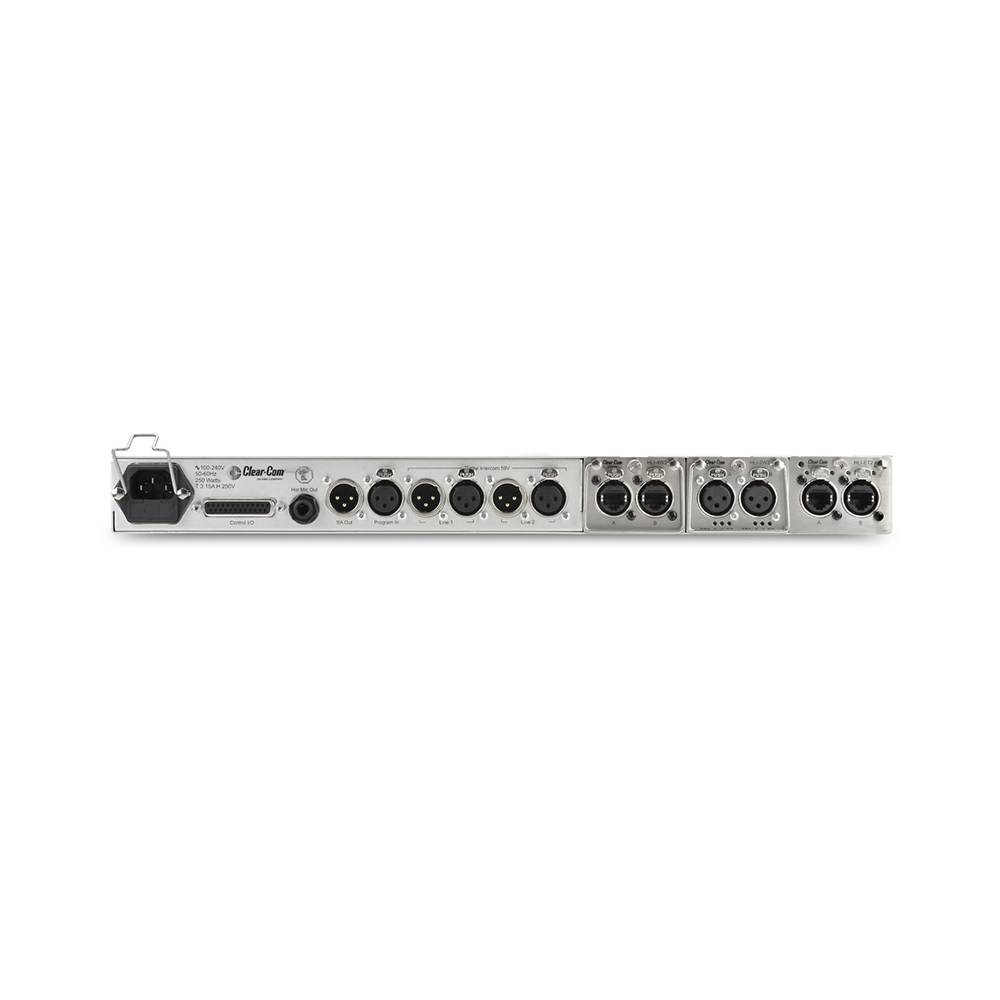

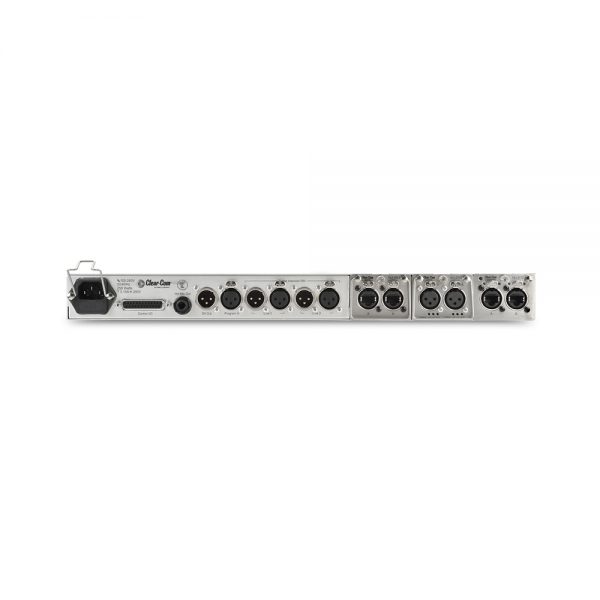

Connectors

Intercom Line: (2) 3-pin XLR–M, (2) 3-pin XLR–F Headset: 4-pin XLR–M USB: Type A & Micro AB Program: 3-pin XLR–F SA (Stage Announce): 3-pin XLR–M Hot Mic/IFB Interface: 1/4” (0.64cm) phone jack GPI: 25 way D-type female (4 Opto-Iso GPI, 4 GPO Relays)
Microphone Pre-amplifier

Headset Mic Impedance: 200Ω (Dynamic) Headset Mic Voltage: 1.7V (Electret selectable) Limiter: +23dB The following is specified for a route to four-wire output at 0dBu out: Mic Gain: 60dB (Dynamic), 45dB (Electret) Frequency Response: 200Hz – 10kHz ±3dB Contoured for Intelligibility Distortion: <0.2% THD @ 1kHz Noise: <-55dBu (Dynamic), <-65dBu (Electret)
Headphone Amplifier

Load Impedance: >32Ω Output Level: +12dBu before clipping Sidetone: -12dBu (selectable) The following is specified for a route from a four-wire input at 0dBu in: Max Gain: 0dB Frequency Response: 40Hz – 10kHz ±3dB Distortion: <0.1% THD @ 1kHz Noise: <-65dBu Headphone Limiter: 0dBu (selectable)
Loudspeaker Amplifier

Load Impedance: 8Ω Output Level: +18dBu before clipping The following is specified for a route from a four-wire input at 0dBu in: Max Gain: 18dB Frequency Response: 200Hz – 10kHz ±3dB Distortion: <0.1% THD @ 1kHz Noise: <-50dBu
Program Line Input

Maximum Level Before Clipping: +18dBu Nominal Input Level: 0dBu (selectable) Input Impedance: >= 10KΩ The following is specified for a route to four-wire output at 0dBu out: Frequency Response: 20Hz – 10kHz ±3dB Distortion: <0.2% THD @ 1kHz Noise: <-65dBu
Stage Announce Input

Maximum Level Before Clipping: +18dBu Nominal Output Level: 0dBu (selectable) Output Impedance: <= 100Ω The following is specified for a route from a dynamic headset: Frequency Response: 300Hz – 12kHz ±3dB Distortion: <0.1% THD @ 1kHz Noise: <-55dBu
Hot Mic Input

Maximum Level Before Clipping: +12dBu Nominal Output Level: 0dBu (selectable) Output Impedance: <= 100Ω The following is specified for a route from a dynamic headset: Frequency Response: 300Hz – 12kHz ±3dB Distortion: <0.2% THD @ 1kHz Noise: <-55dBu
Main Power

Input Voltage Range: 100 – 240VAC Input Frequency Range: 50 – 60Hz Input Power: <= 250VAC Output Voltage: +/-29VDC ± 1V Output Currentper Channel: 1.5A (continuous) Power Connector: IEC60320-1-C14
Environmental

32º – +104ºF (0 – +40ºC) 90% relative humidity
Dimensions

1.75 x 19 x 13 in (HxWxD) (44 x 483 x 320 mm)
