Description
Feature Quick View

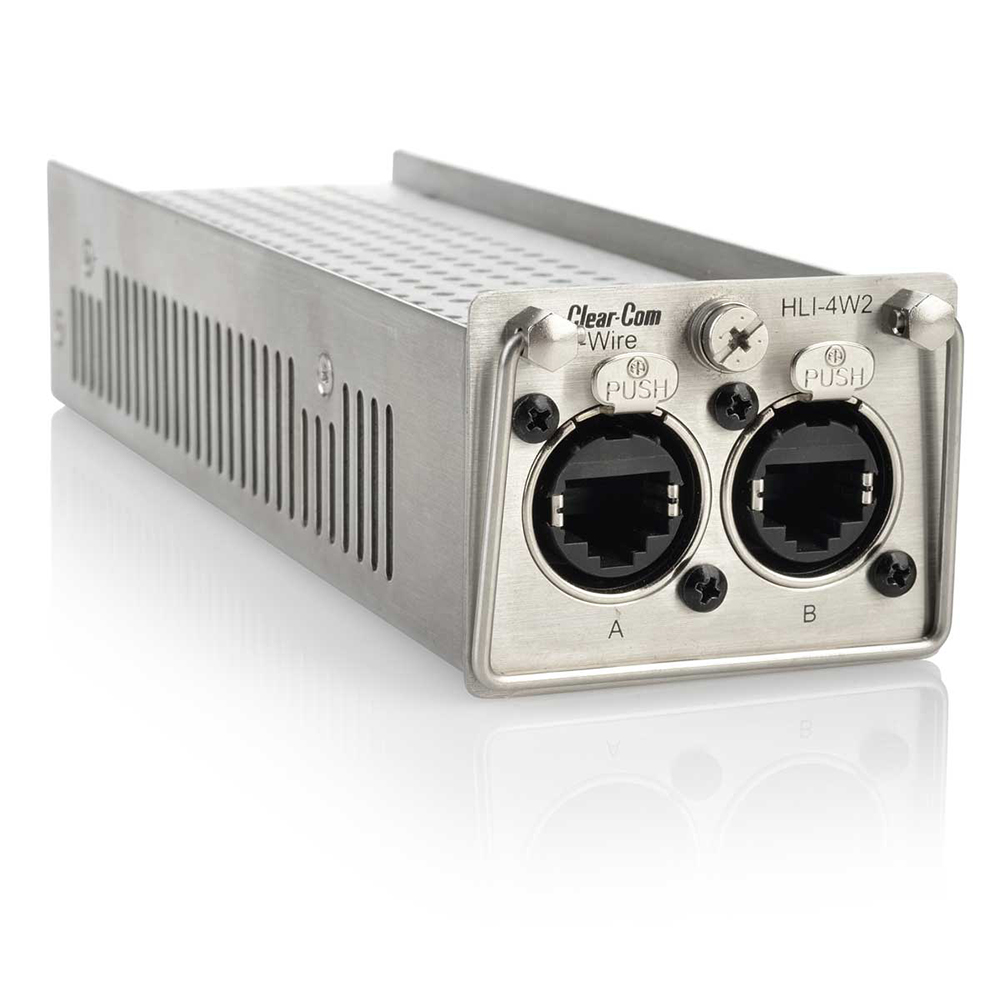

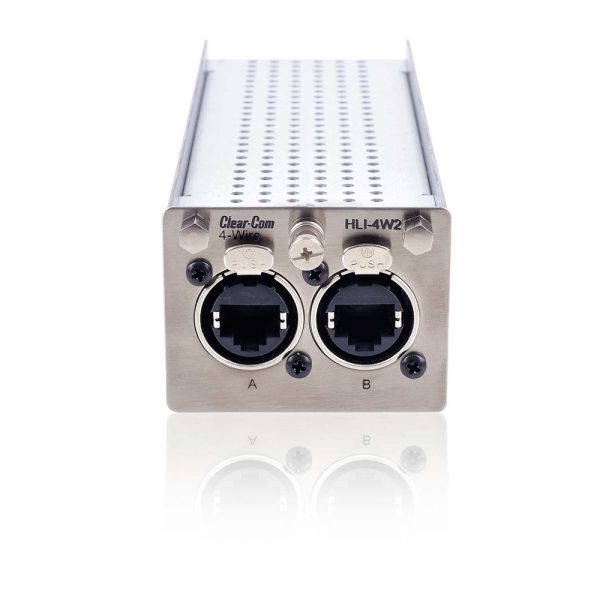

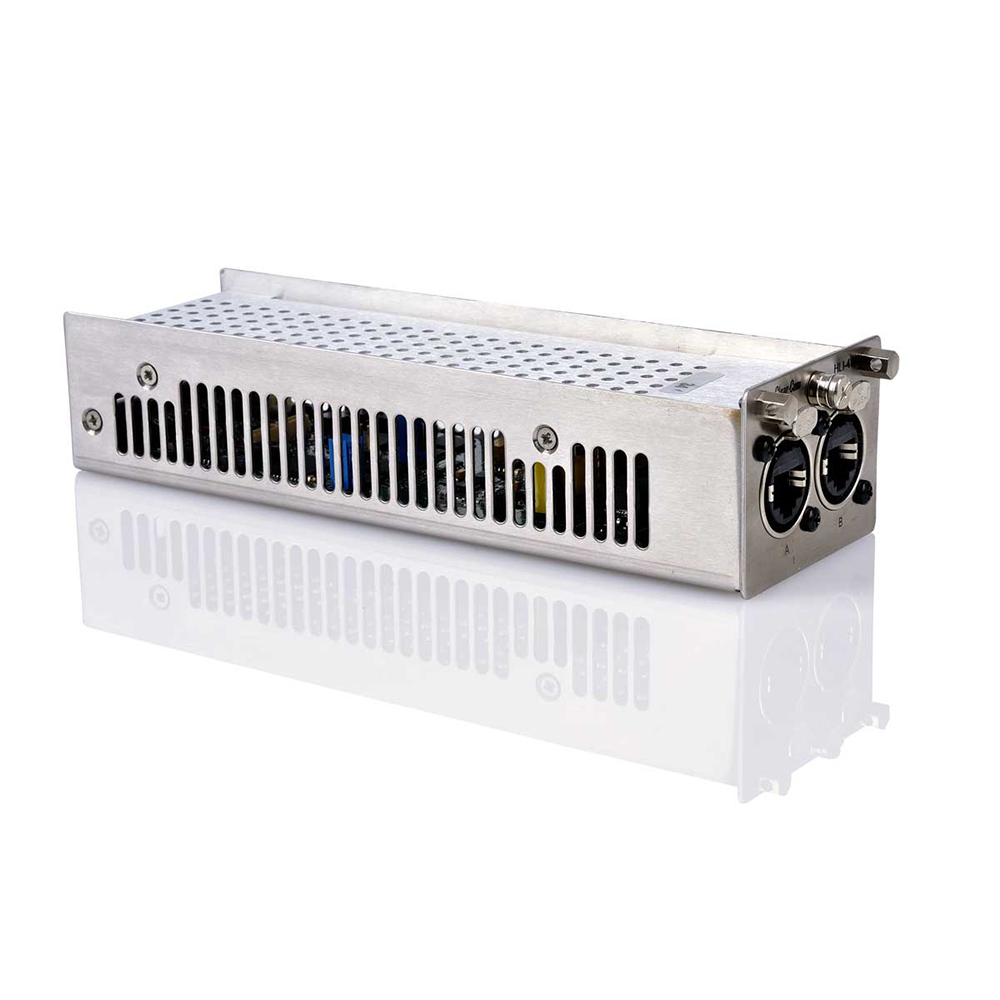

- 4-Wire Interface Module
- Matrix port, camera and telephone circuit assignment from HMS-4X main station
- Two RJ45 connectors per module
Add items to your Wish List to send to our team for pricing. We respond to enquiries within one working day.
Additional information
| Weight | 0.38 kg |
|---|---|
| Connectors | Intercom Line: (2) RJ-45 (Ethercon) |
| 4-wire Option Module Inputs | Maximum Level Before Clipping: 18dBu Nominal Input Level: 0dBu (selectable) Input Impedance: >= 10KΩ The following specified for a route to four-wire input at 0dBu in: Frequency Response: 20 Hz – 10 kHz ±3dB Distortion: <0.2% THD @ 1kHz Noise: <-65dBu 4-wire Option Module Inputs Maximum Level Before Clipping: 18dBu Nominal Input Level: 0dBu (selectable) Input Impedance: <= 100Ω The following specified for a route to four-wire input at 0dBu in: Frequency Response: 300 Hz – 12 kHz ±3dB Distortion: <0.1% THD @ 1kHz Noise: <-55dBu |
| Dimensions | 2.24 x 7.36 x 1.54 in (HxWxD) (57 x 187 x 39 mm) |
