Description
Feature Quick View

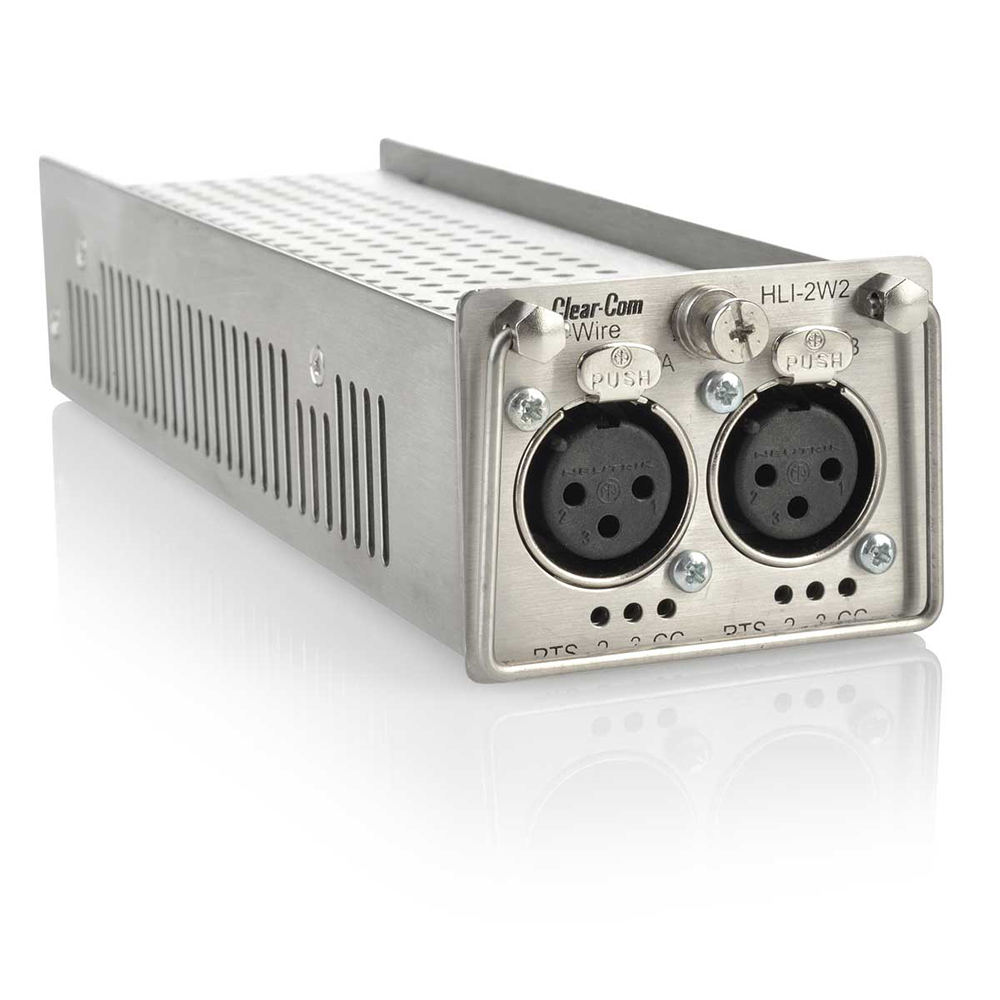

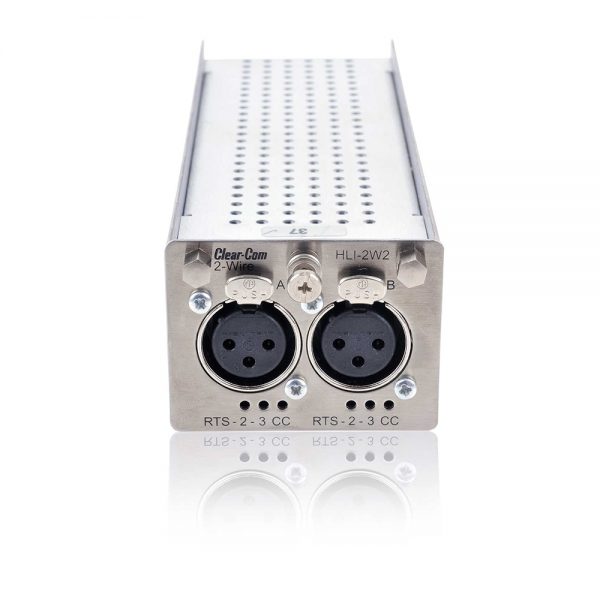

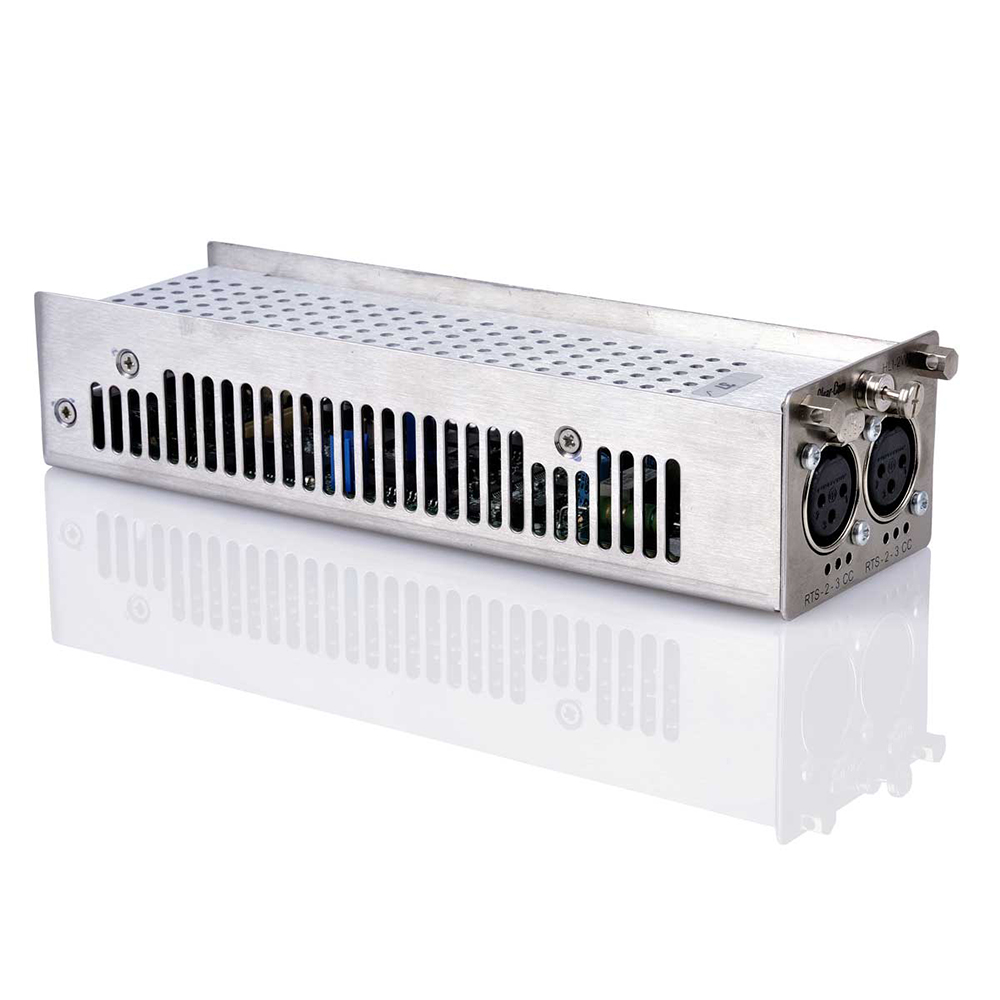

- 2-Wire Interface Module
- Clear-Com/RTS assignment from HMS-4X main station
- Two 3-pin XLR-F connectors per module
Add items to your Wish List to send to our team for pricing. We respond to enquiries within one working day.
Additional information
| Weight | 0.83 kg |
|---|---|
| Connectors | Intercom Line: (2) 3-pin XLR–F |
| Partyline | Maximum Level Before Clipping: 6dBu Nominal Input Level: -18dBu (C-C), -12dBu (RTS) Input Impedance: >= 10KΩ bridging The following specified for a route to four-wire input at 0dBu in: Frequency Response: 100 Hz – 10 kHz ±3dB Distortion: <0.2% THD @ 1kHz Noise: <-55dBu The following specified for a route from a four-wire output at 0dBu out: Frequency Response: 40 Hz – 10 kHz ±3dB Distortion: <0.2% THD @ 1 kHz Noise: <-75dBu Auto-nulling and Echo Cancellation RTS/Clear-Com Selectable Termination: External Power: 30V max external |
| Dimensions | 2.24 x 7.36 x 1.54 in (HxWxD) (57 x 187 x 39 mm) |
Downloads
| Spec Sheet | Download |
|---|
