Description
Distributed transceivers allow FreeSpeak II wireless beltpack users to freely roam inside or outside of a facility while staying constantly connected. This is achieved through the Cellular Roaming capability between distributed Transceivers. Up to 50 Transceivers in the US or up to 64 Transceivers in EU countries can be connected to an E-IPA-HX card via copper or fiber over an AES67 compliant network to form an expansive wireless network for continuous communication. Each powered Transceiver can create a coverage zone of up to 300 feet (indoor) or up to 800 feet (outdoor).
IP-53 rated for wet weather or dusty conditions making them ideal for outdoor productions.
Feature Quick View

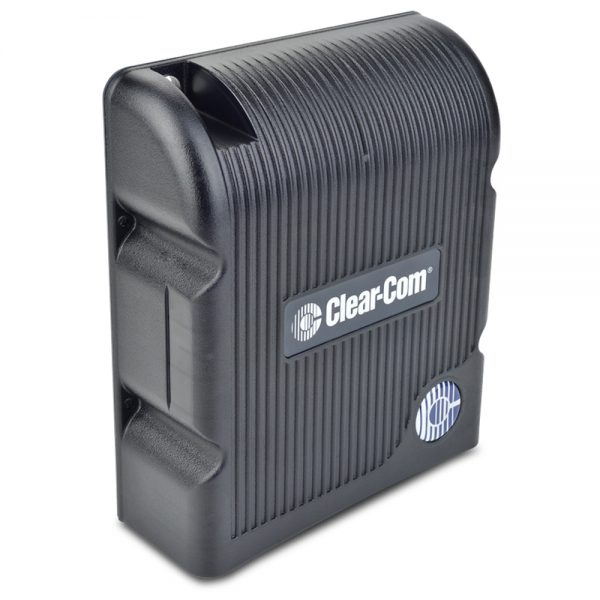

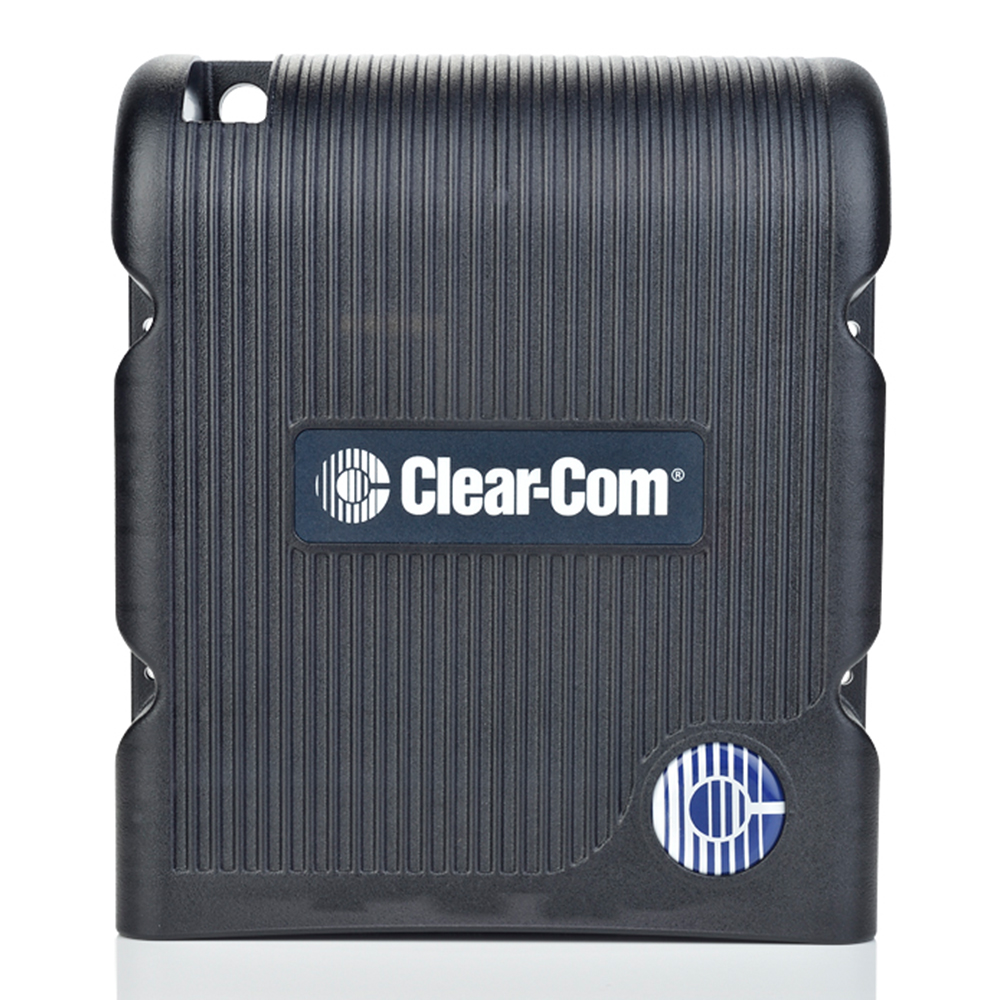

- FSII 1.9GHz IP Transceiver
- For use with FreeSpeak II 1.9GHz only
- Requires E-IPA-HX card and an Eclipse HX frame (not available for FSII-BASE-II)
- Operates over IP on an AES67 compatible network
- Supports 10 FSII 1.9GHz beltpacks per transceiver
- Supports up to 64 transceivers on an Eclipse HX matrix system

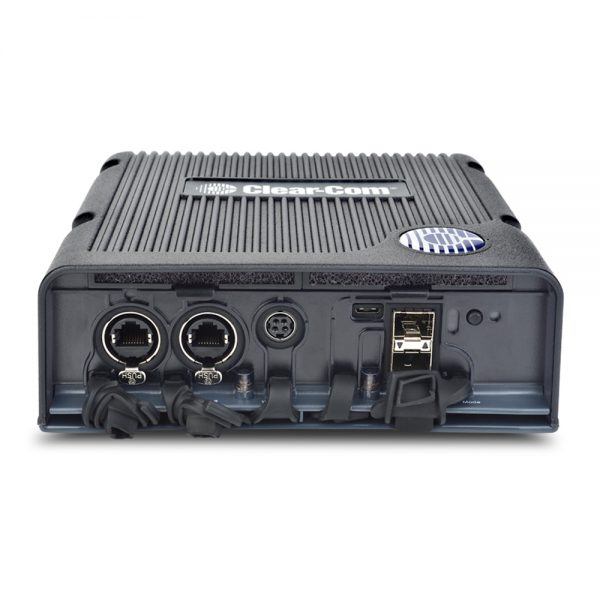

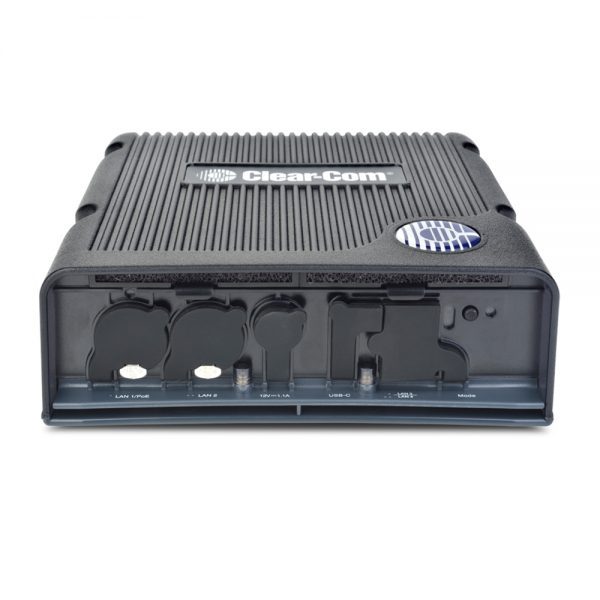

- Ethercon RJ45 network connections (2)
- High speed fiber SFP cages (2)
- Power-over-Ethernet (PoE) up to 300 ft (90m)
- Green LED status indicator on top and bottom

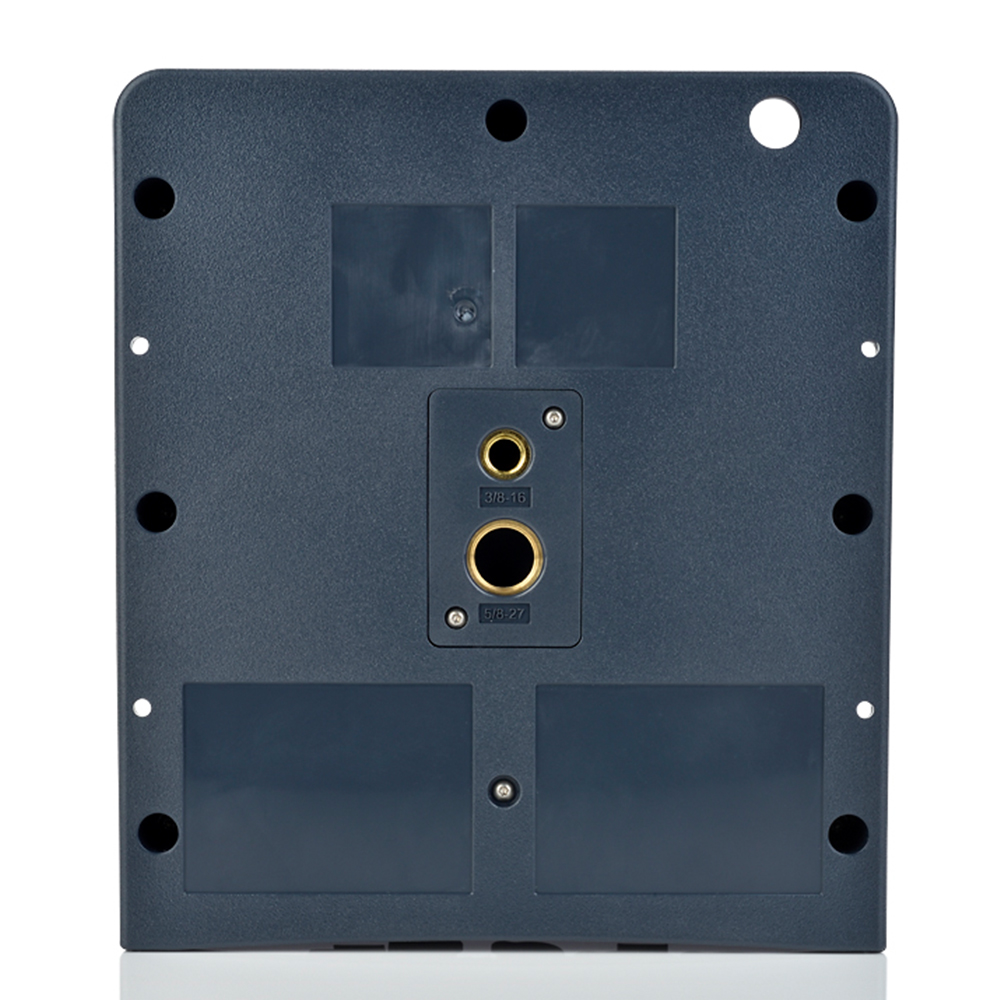

- Mic stand or wall mount orientation (metric and imperial threads)
- IP-53 rating for wet and dry conditions
