Clearcom – FSII-BP19

Clearcom

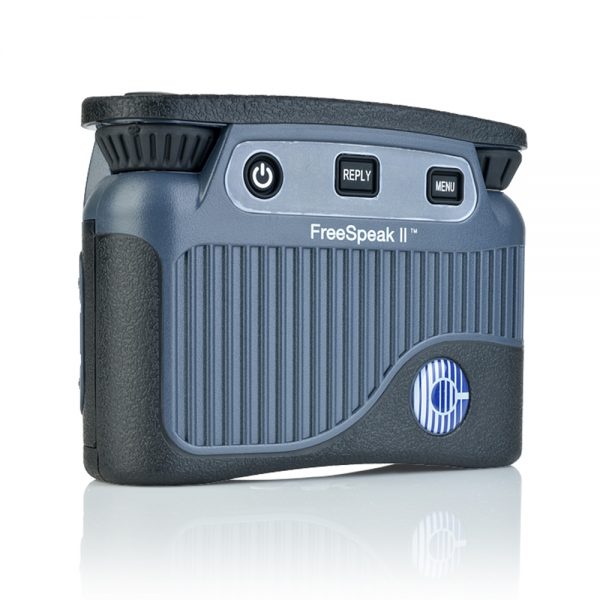

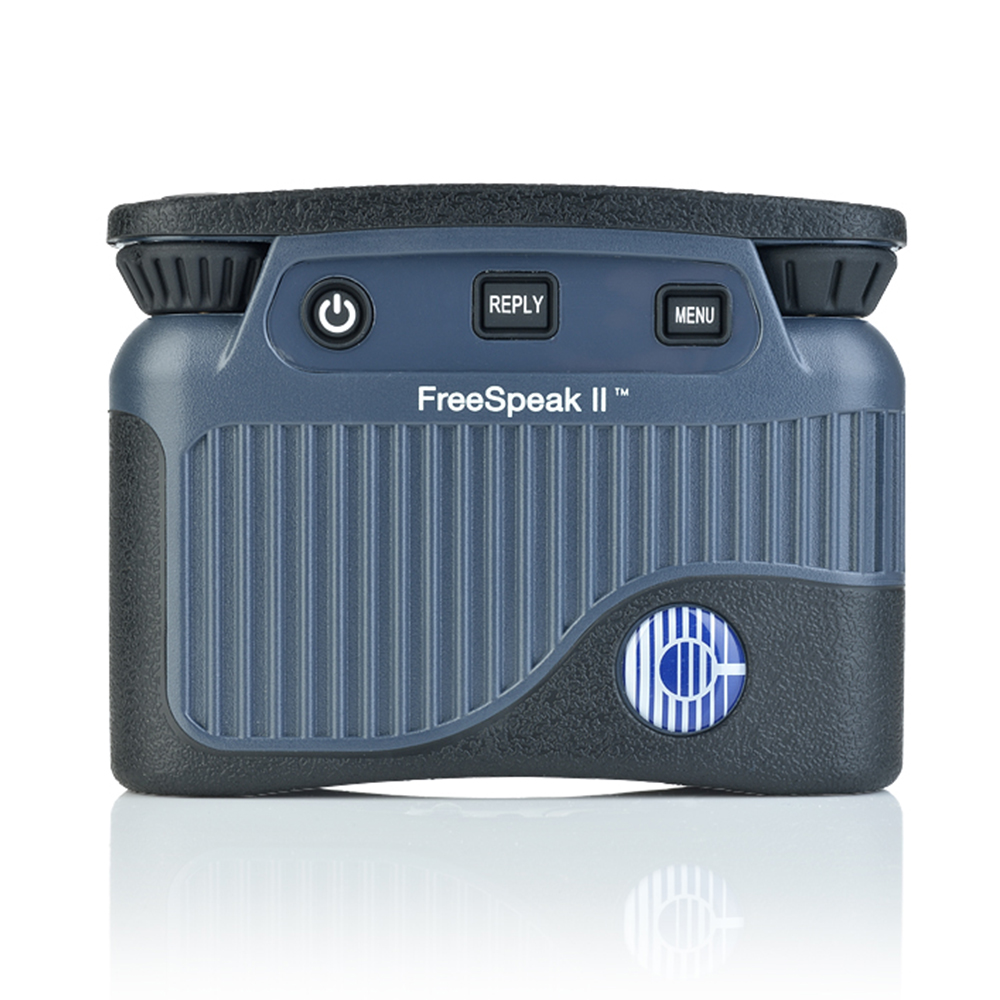

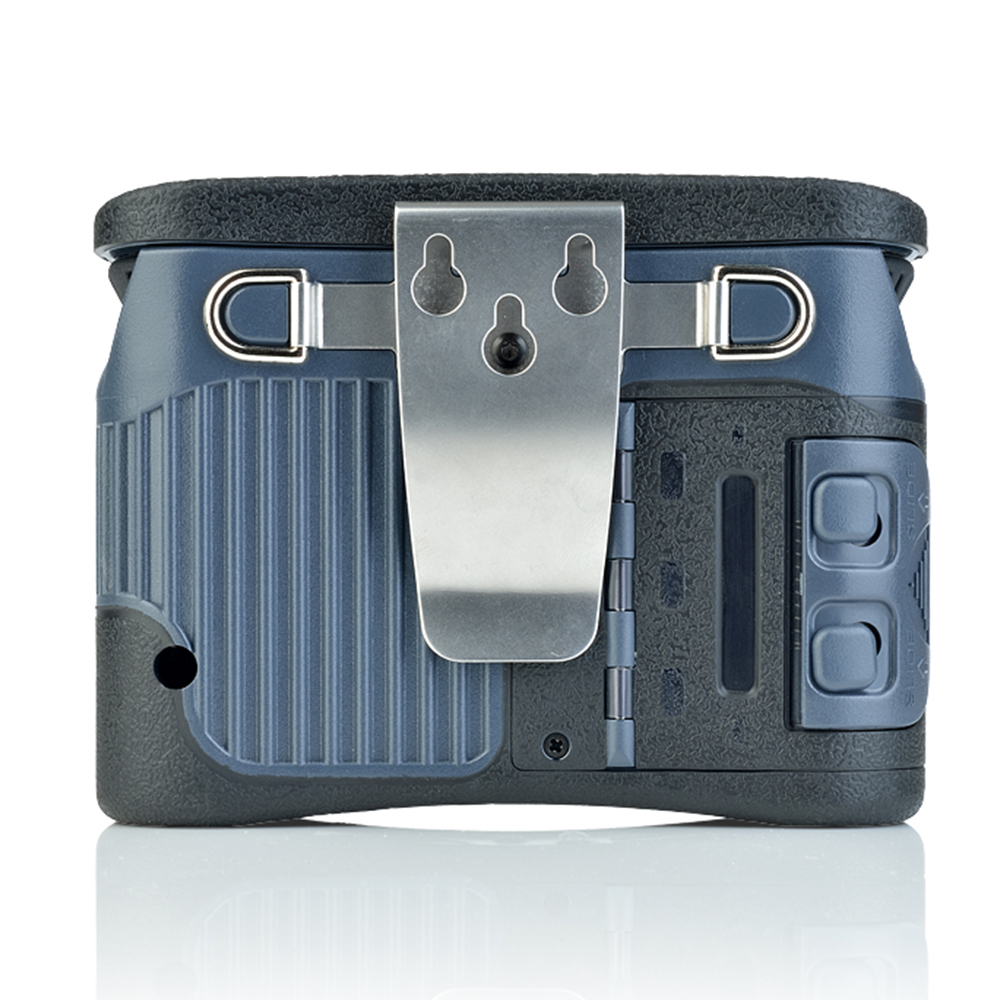

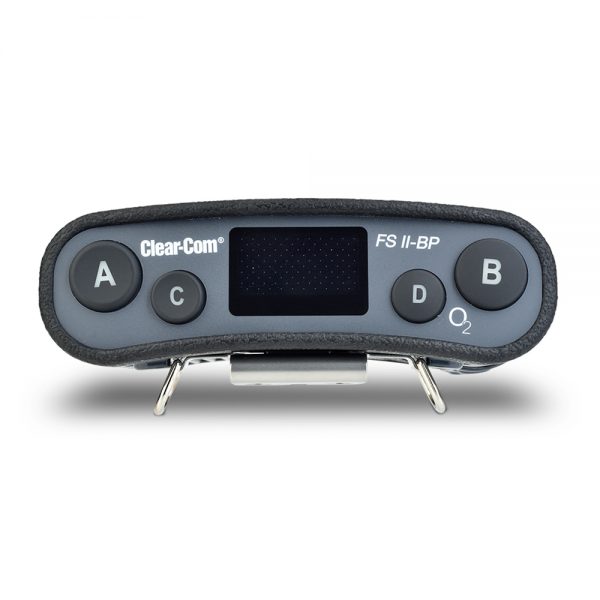

FreeSpeak II 1.9GHz Wireless Beltpack

SKU: CLEFSII-BP19 Categories: , , ,

Description

IP-53 rated for wet weather or dusty conditions making them ideal for outdoor productions. For better grip and protection, the beltpack has a rubberized overmold to protect from the most rugged environments.

Featuring the “Clear-Com Sound”, the digital beltpack operates in the 200Hz-7.5kHz audio band high audio quality and reduction to the strain on the user’s ears after extended usage.

18+ hours of battery life for continuous talk-time with the BAT60 Li-Ion battery. 6-9 hours of battery life with three AA cells. USB charging port is available on the beltpack for recharging and continuous powered transmissions.

Proven cellular auto roaming technology for dependable and continuous communication without the worry of fading or losing connection.

Feature Quick View

  • FreeSpeak II 1.9GHz Wireless Beltpack
  • Operates in the 1.88-1.93GHz DECT frequency band (frequency allocation varies by country)
  • Simple 2-channel partyline operation to 5-channel intercom on the same beltpack
  • 7kHz audio wide band
  • Encoder Volume Swap between A&C and B&D
  • “Listen Again” message replay
  • Typical indoor range: 300 ft (90m), outdoor range: 800 ft (240m)
  • Over-the-air beltpack registration
  • 18+ hour battery life or USB port for continuous operation
  • IP-53 rating for wet and dusty conditions
  • Built-in flashlight

Additional information

Weight 0.4 kg
Audio

Audio Bandwidth: 200Hz-7.5KHz No. of Full-Duplex Audio Paths: Up to 5 with individual level control (2 dedicated rotaries, 3 with menu), 2 controls and a main volume Mode of Operation: Full duplex on all routes Level/Talk Controls: 4 pushbuttons, a reply button and 2 rotary controls Enter/Answer-Back Button: 1
Radio

Frequency Spectrum: 1.88-1.93MHz for EU and US cellular auto roaming technology (frequency allocation varies by country) Modulation: GFSK, TDMA frame 10ms Full and Long slot Output Power: (EU/Russia) 10dBm average, (US) 18-20dBm Range: Typical indoor range 300ft (90m), outdoor range 800ft (240m) Battery: Li-Ion or 3 AA alkaline cells Battery Charging: Drop-in charger (AC60) or local USB Battery Life: 18+ hours with Li-Ion; 9 hours with 3 x Alkaline AA cells Headset Connector: 4-pin male, Clear-Com standard, options for 5-pin female and 7-pin male with PTT Microphone Type: Electret and Dynamic, selectable in beltpack menu Headset Limiter: Selectable from beltpack menu
Environmental

IP-53 water and dust resistance Operating: 32º-125ºF (0º-50ºC) Storage: 32º-150ºF (0º-70ºC) Humidity: Between 20% and 90%, Non-Condensing
Dimensions

Tapered design at largest points 3.75 x 5 x 1.5 in (HxWxD) (97 x 130 x 45 mm)
