Clearcom – FSII-Base-II-5

Clearcom

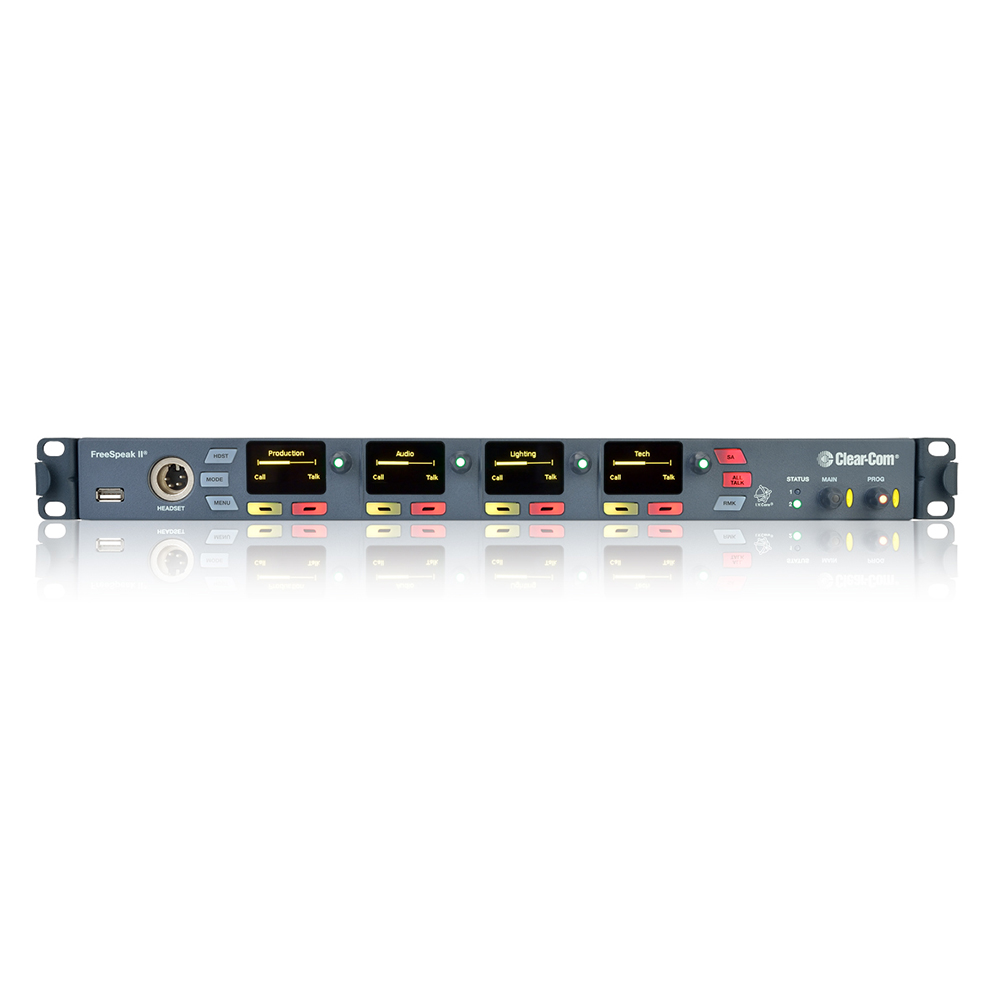

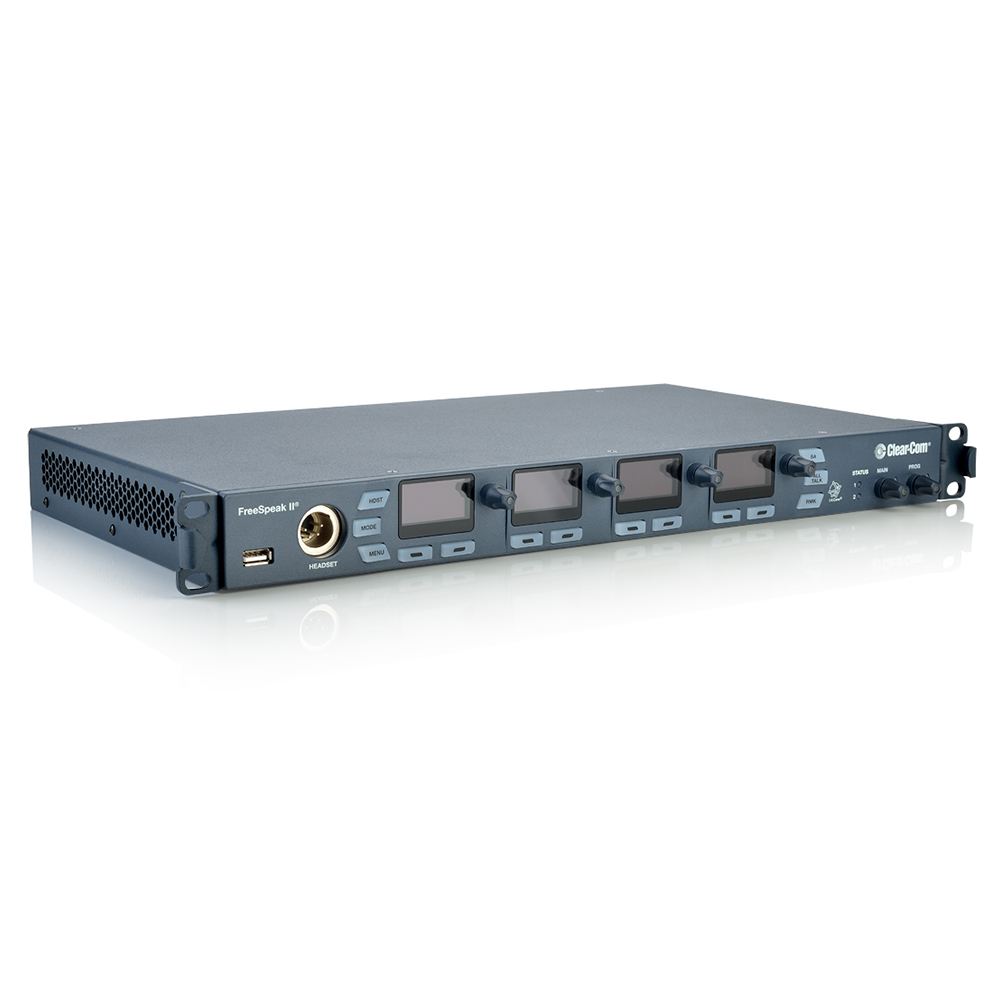

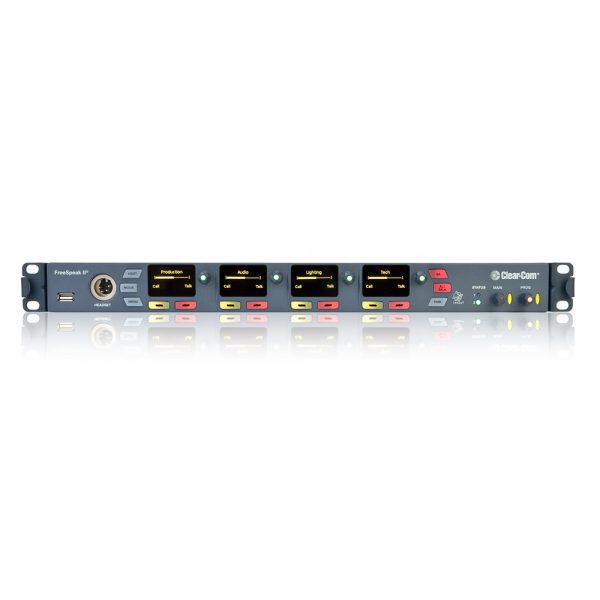

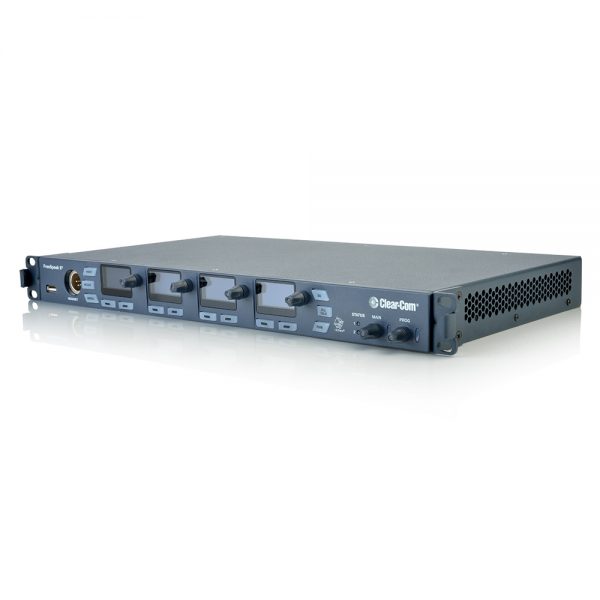

FreeSpeak II-BASE-II-5 Digital Wireless Base Station

SKU: CLEFSII-Base-II-5 Categories: , , ,

Description

Dual-frequency operation in one single base station maximizes intercom investment and provides flexible deployment options. Intelligently mix 1.9GHz and 2.4GHz system components for an expanded system.

The FreeSpeak II-Base-II-5 offers three different modes: Base Station for digital signal transmission; a headset master station for operators to communicate with anyone wired or wireless on the system; and an intuitive menu user interface for configuring setup and making real-time system changes.

Robust base station supports up to 5 full-duplex wireless beltpacks and covers a large production area with 10 transceivers and two transceiver splitters spanning up to 3,200 feet away from the base station.With the built-in fiber connection, each fiber transceiver module can further extend coverage to a maximum distance of 60,000 feet (or 20,000 meters) away from the base station via the SFP fiber slot.

Four 2-wire ports and four 4-wire ports allow the base station to directly connect with industry-standard analog partyline and 4-wire audio devices, respectively, without the need of additional interfacing required.

Feature Quick View

  • FreeSpeak II-BASE-II-5 Digital Wireless Base Station
  • Supports both 1.9GHz and 2.4GHz FSII beltpacks on a single base station
  • Routing and configuration of up to 5 FreeSpeak II beltpacks
  • Four 2-wire ports with call signal, auto nulling (Clear-Com and RTS)
  • Supports 2 transceivers natively and up to 10 transceivers via FSII splitter
  • Multi-mode user interface has monitoring, setup and main station modes with assignable soft keys
  • Matrix and partyline configurations support up to 12 channels and/or groups
  • GPIOs allow assignment to trigger cue lights, tally or radios
  • DECT Sync ports for optimizing co-located systems
  • RF Audio Filter improves system performance in harsh RF environments
  • Browser-based Core Configuration Manager (CCM) with InSite for real-time statistics, beltpack and transceiver diagnostics, and functionality such as Remote Mic Kill
  • Text messaging from CCM to wireless beltpacks

Additional information

Weight 2.5 kg
Technical Specifications

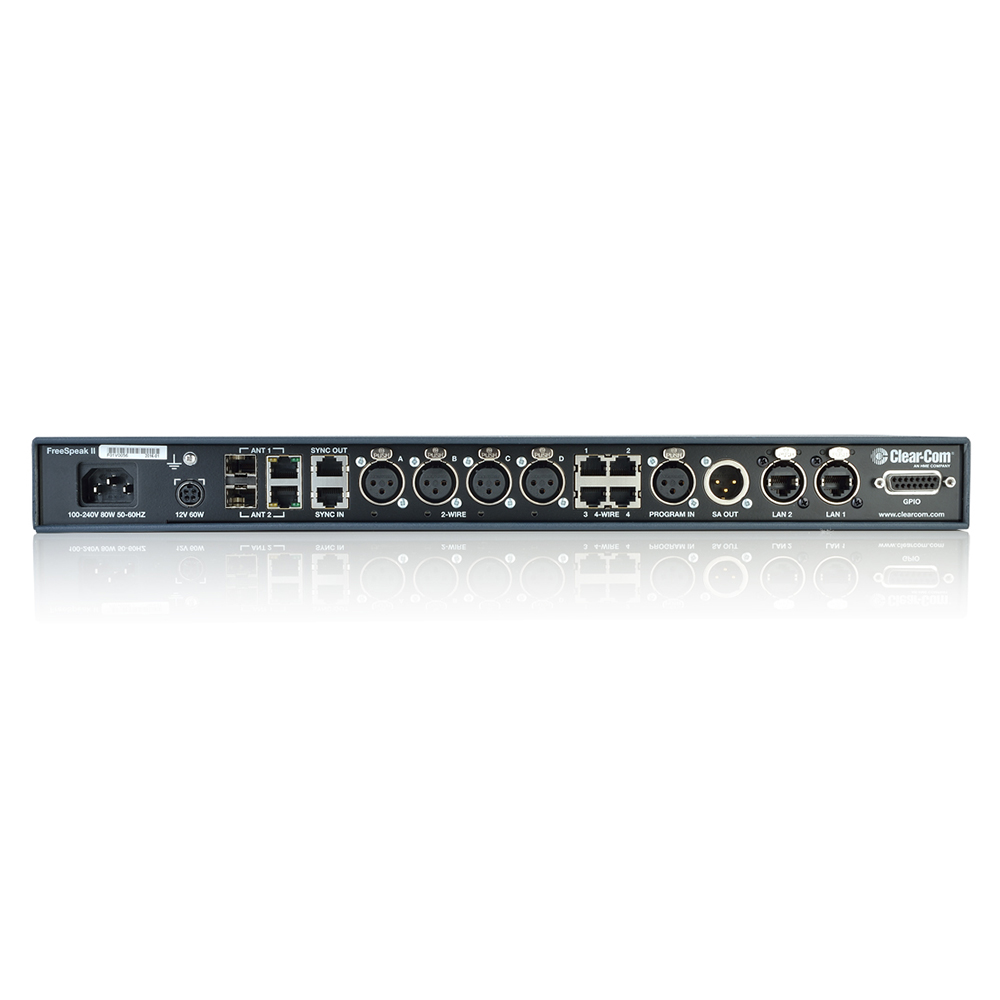

Base-to-Beltpack Frequency Response: 100Hz – 7.1kHz No. of Beltpacks per Base Station: 5 No. of Transceiver/ Antennas Supported by Base: 10 No. of Active Transceiver Ports: 2, one port can remotely power up to 1 FSII splitter or 1 FSII transceiver PC Programming Port: 2 LAN RJ45 Relay Port: DB15, supports one relay assigned to the SA out Partyline A ,B,C,D (each): XLR-3F, on/off termination switch, Clear-Com and RTS compatible Partyline Power On/Off: A/B, C/D paired Partyline Output Voltage: 26 – 28VDC, 800mA per pair (A/B or C/D) Four-Wire/Matrix Connection: 4 RJ-45 Program Input: XLR-3F, transformer isolated, line-level input Stage Announce Output: XLR-3M, transformer isolated, line-level output Front Panel Headset: 4-pin male and 5-pin female options Front Panel Displays: 4 OLED’s with encoders and assignable soft keys Front Panel Indicators: Antenna Status, Beltpack Status External Power Supply Connection: 12VDC Base Station Programming/Editing: Push-to-enter rotary encoder
Power

Input: 100-240V AC, 1.4A max Output: 12V DC. 60W, 5A Current Draw: 12V, 4A max, 48W max
Dimensions

1.75 x 19.0 x 10.2 in (HxWxD) (44 x 483 x 259 mm)
