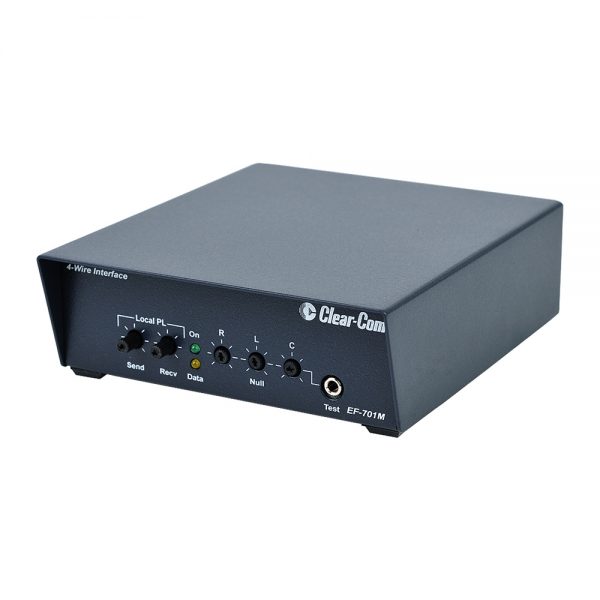

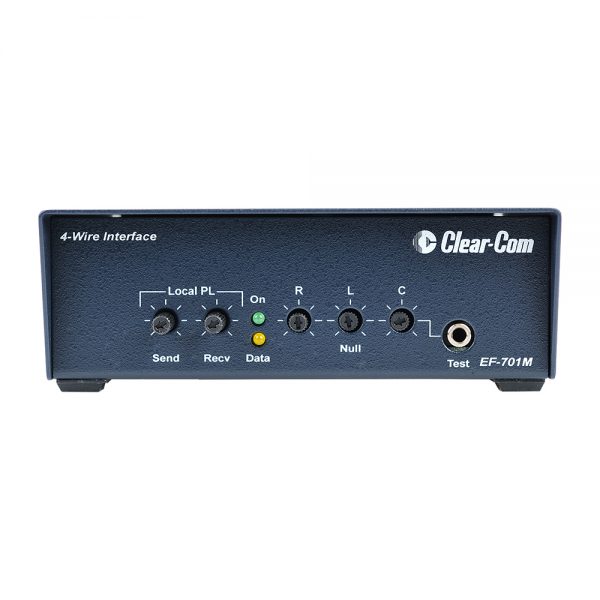

4-Wire Interface with Call Signal

SKU: CLEEF-701M Categories: , , , ,

Description

Convert 2-wire to 4-wire with built-in hybrid null and wide-range level controls.

Besides being used as a visual indicator, Call Signaling can be used to trigger relays or functions in other intercom equipment.

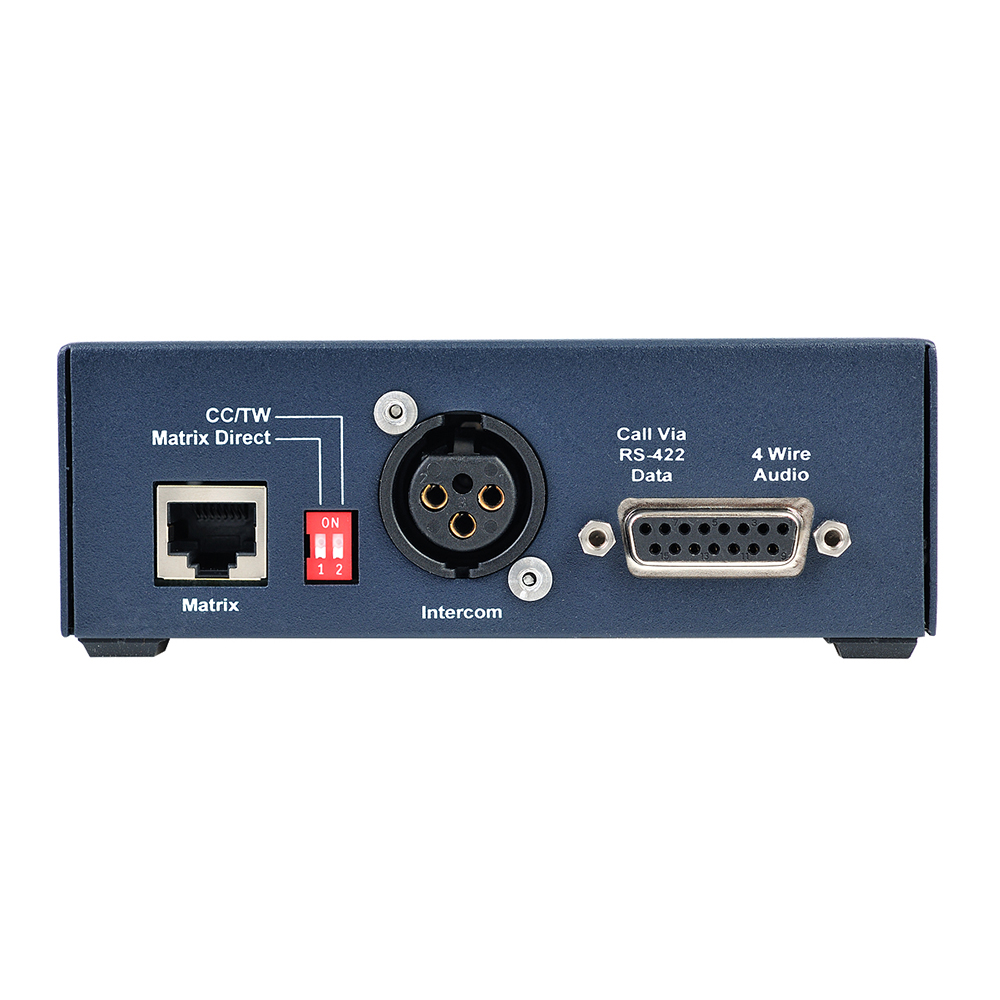

For systems where only one or two partyline channels are needed, a rear dip switch selects the connection for the 4-wire audio and data as the RJ-45 jack instead of the DB-15.

Feature Quick View

  • 4-Wire Interface with Call Signal
  • High-quality partyline to 4-wire audio conversion interface
  • Maintains hybrid null with multiple units on a channel
  • Converts call signals to RS-422 data with selectable baud rate
  • Connects intercom with call signal over fiber
  • Clear-Com and RTS compatible
  • Built-in test tone and jack for nulling
  • Multi-mode data status LED
  • Powered by the intercom line

Additional information

Weight 0.79 kg
Signaling

Receive: =11VDC RTS Format
Line Characteristics

Max Level Before Clipping : >=20dBu Impedance: >=10KΩ
Signaling Tone

Send frequency: 20kHz ±1KHz Receive frequency: 20kHz ±500Hz Send level: >=-6dBu Receive level: <=-20dBu
General Characteristics

Frequency Response: Party Line – Party Line: 200-10KHz ± 3dB Matrix – Party Line: 200-10KHz ± 3dB
Distortion

Party Line – Matrix: <=0.5% Matrix – Party Line: <=0.5%
Noise

Party Line – Matrix: <=-50dBu Matrix – Party Line: <=-70dBu
Max Gain

Party Line – Matrix (CC setting): 20dB ± 3dB Party Line – Matrix (RTS setting): 16dB ± 3dB Matrix – Party Line (CC setting): -5dB ± 3dB Matrix – Party Line (RTS setting): -1dB ± 3dB
Min Gain

Party Line – Matrix (CC setting): -7dB ± 3dB Party Line – Matrix (RTS setting): -12dB ± 3dB Matrix – Party Line (CC setting): -33dB ± 3dB Matrix – Party Line (RTS setting): -29dB ± 3dB
Power Requirements

Input Voltage Range: 20-30VDC Quiescent Current: <=70mA Max Current: <=80mA
Dimensions

1.62 x 5.94 x 4.8 in (HxWxD) (41 x 151 x 122 mm)
