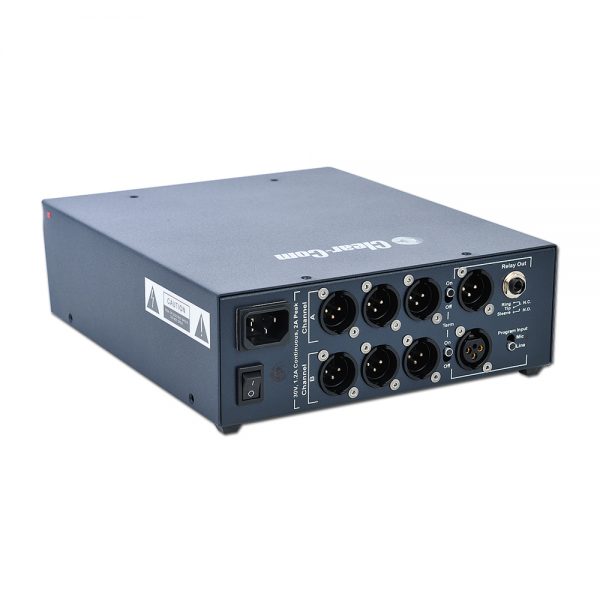

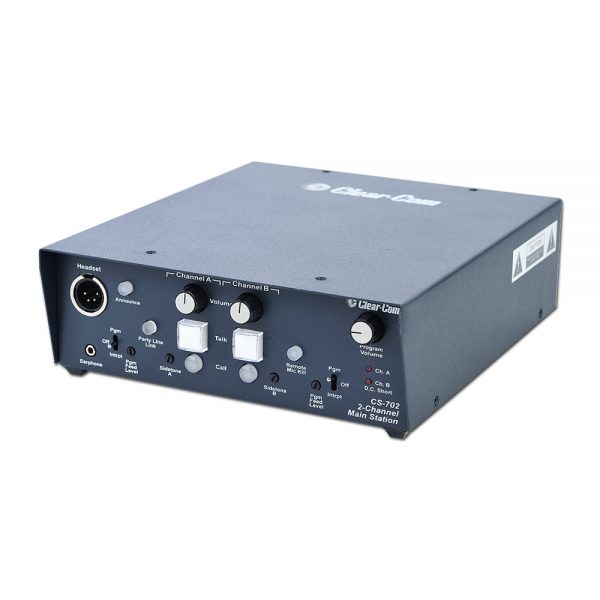

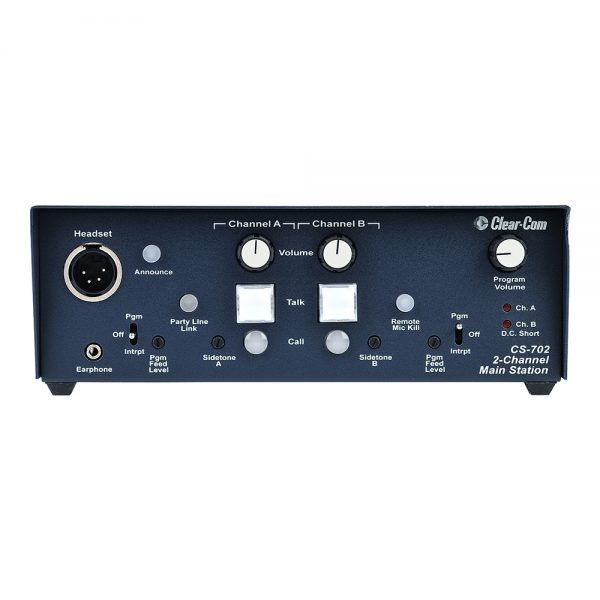

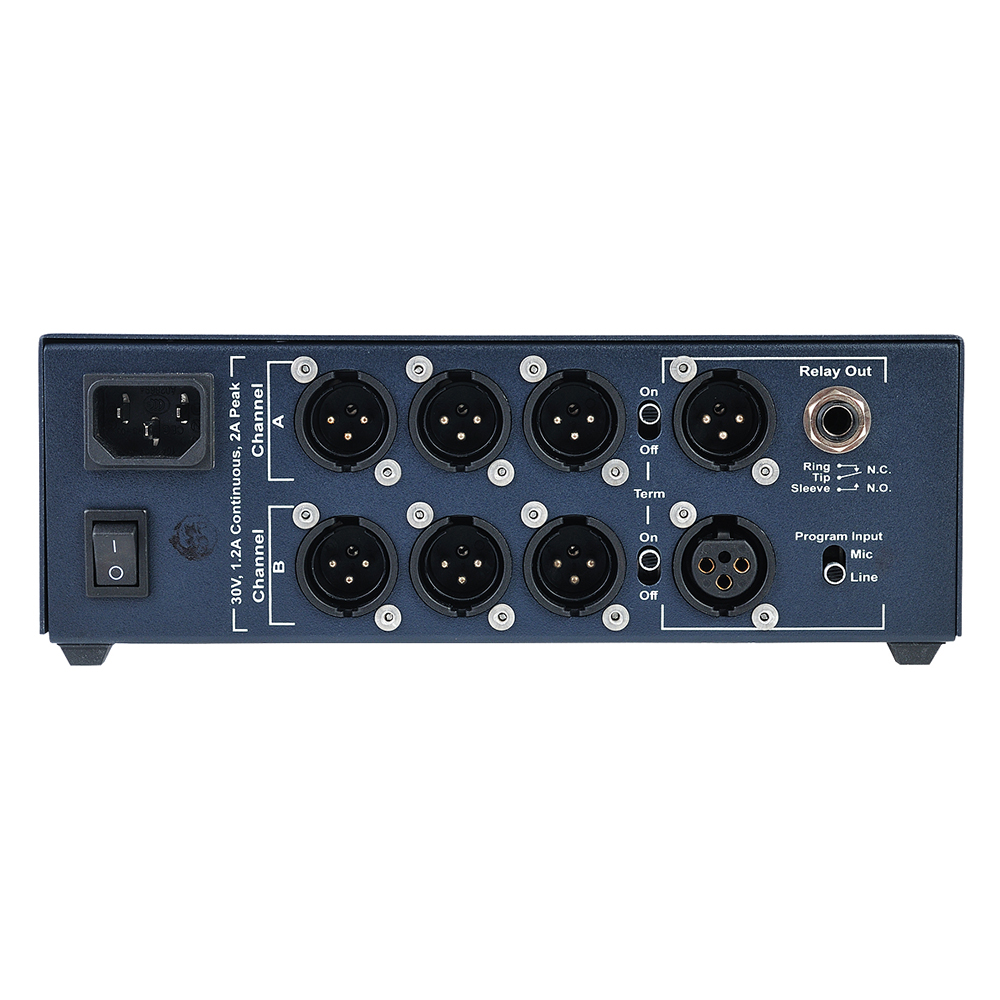

Clearcom – CS-702

Clearcom

2-Channel Compact Main Station

SKU: CLECS-702 Categories: , , , ,

Description

Mic preamp with limiter and proprietary speech-shaping circuits improve the quality of words spoken into the system.

Individual Sidetone control allows the operator to vary the level of his or her own voice as heard in the headset.

Remote Mic Kill turns off the microphone talk circuits of all Clear-Com beltpacks eliminating noise from the open headset microphones.

In the event of a short circuit or current overload, the protection circuit with shut down the output to avoid damage and will automatically restore the system power as soon as the fault condition is removed.

Feature Quick View

  • 2-Channel Compact Main Station
  • Supports up to 55 beltpacks or 7 speaker stations on 2 channels
  • Automatic short-circuit protection and reset with LED indicators
  • Individual volume controls for each channel
  • Mic-or line-level program with selectable Program Interrupt
  • Remote Mic Kill
  • Stage Announce with relay
  • Channel A & B Link switch to operate as a one-channel system
  • Built-in 1-amp power supply – CE approved, UL Listed

Additional information

Weight 2.3 kg
Headset Microphone

Input Type: Dynamic Input Impedance: >= 1K Mic Limiter Threshold: 0dBu ± 3dB Mic Limiter Range: >= 15dB
Program Line Input

Maximum Level before Clipping: >= 20dBu Input Impedance: >= 5K
Program Mic Input

Maximum Level before Clipping : >= -35dB Input Impedance: >= 1K
Headset Output

Load Impedance: >= 8 Output Impedance: = 17dBu
Partyline Output

O Noise : < -74dBu Output Impedance : >10K
Partyline Input

Crosstalk: = 12dBu Sidetone Null Capability: > 25dB
Stage Announce/Balanced Line Out

Type: Balanced Output Impedance: >= 200 Load Impedance: >= 600
Frequency Response

Headset Mic – Partyline :200 – 18KHz ± 3dB Headset Mic – Line Out: 200 – 18KHz ± 3dB Program Input – Partyline: 200 – 20KHz ± 3dB Program Input – Headset Out :200 – 18KHz ± 3dB Partyline – Headset Out :200 – 18KHz ± 3dB
Max Distortion

Headset Mic – Partyline: <= 0.5% Headset Mic – Line Out: <= 0.5% Program Input – Partyline: <= 0.2% Program Input – Headset Out: <= 0.2% Partyline – Headset Out: <= 0.2%
Noise

Headset Mic – Partyline: < -70dBu Program Input – Partyline: < -85dBu Program Mic – Partyline: < -70dBu Program Input – Headset Out: < -60dBu Program Mic – Headset Out: < -40dBu Partyline – Headset Out: < -50dBu
Max Gain

Headset Mic – Partyline: 41dB ± 2dB Headset Mic – Announce Out: 55dB ± 3dB Program Input – Partyline: >= -16dB Program Mic – Partyline: 41dB ± 2dB Program Input – Headset Out: >= 18dB Program Mic – Headset Out: >= 70dB Partyline – Headset Out: >= 34dB
Mains Power

Input Voltage Range: 100 – 240 VAC Input Frequency Range: 50 – 60 Hz Input Power: <= 60 VAC Output Voltage: 30 VDC ± 0.5V Output Current per Channel (Continuous): 1.2 A
Output Current per Channel

(Peak): 2 A (Do not exceed the 1.2A rating for more than 2 seconds per 1 minute period) Short Circuit Recovery Time (1st short):= 20 shorts in 20sec):<= 20 sec
Environmental

32 – 122°F (0 – 50°C)
Dimensions

3 x 8.5 x 10 in (HxWxD) (76 x 216 x 254 mm)
