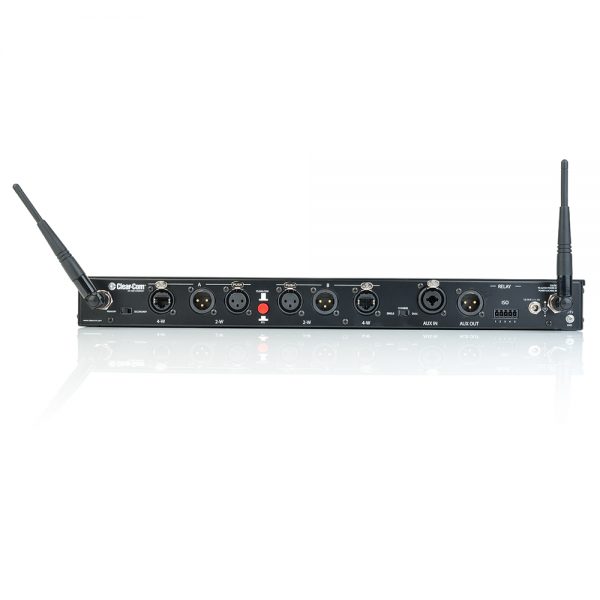

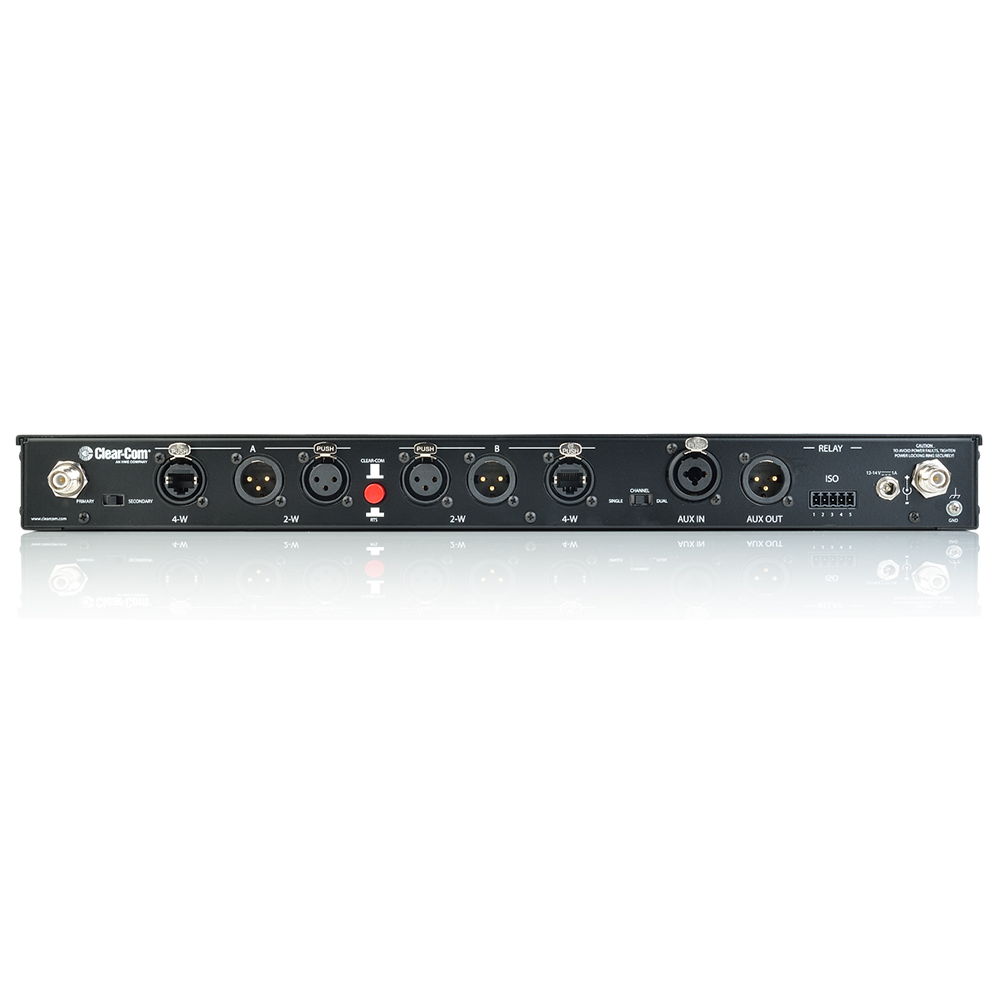

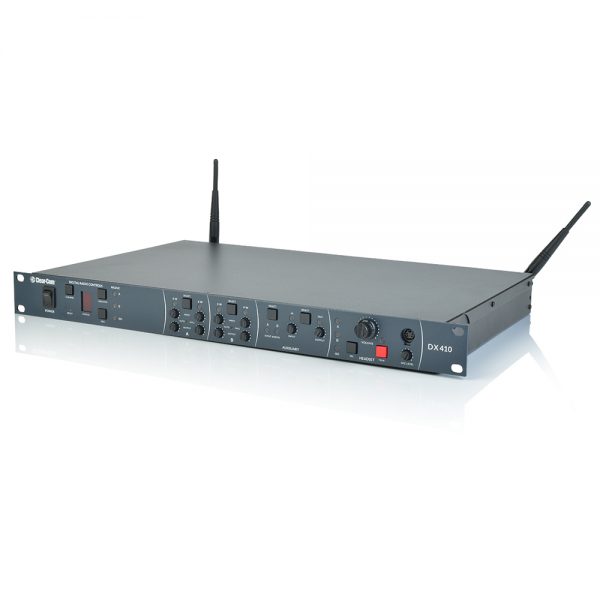

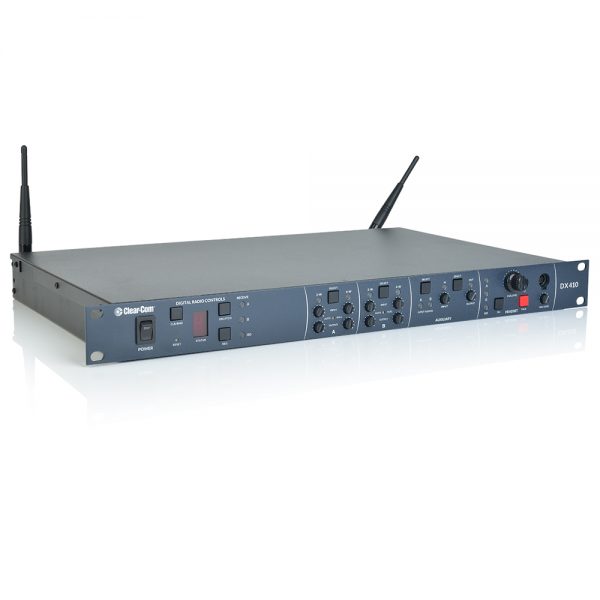

Clearcom – BS410

Clearcom

2-Channel 2.4GHz Base Station

SKU: CLECZ-BS410-EU ETSI Categories: , , ,

Description

The DX410 features 2-wire and 4-wire bridging, allows the option for combining the 2-wire and 4-wire ports together on either channel A or B, allowing operators to use a 4-wire out to send all the audio to a mixer, matrix intercom or other audio source.

The 7Hz wideband audio offers an expanded audio range and increased intelligibility that enables even soft whispers to be heard clearly.

Interface with other Clear-Com or third-party TW wired partyline systems easily, quickly and accurately with its 2-wire auto-nulling capability.

Feature Quick View

  • 2-Channel 2.4GHz Base Station
  • 2-channels of communications
  • 2.4GHz license-free operation
  • Supports up to 15 beltpacks in a single system
  • 7kHz wideband audio
  • 2-wire and 4-wire bridging on the same system
  • Lost packet concealment
  • Simple to set up and configure

Additional information

Weight 4.1 kg
Audio

Channels: 2 audio channels Capacity: Up to 15 BP410 and/or WH410 per base station Full-Duplex: Yes. Single-channel = 4 in simultaneous full-duplex. Dual-channel = 3 in simultaneous full-duplex. Radio Frequency Range: 2400 – 2483.5 MHz Audio Frequency: 200 Hz – 7kHz 4-wire I/O: RJ45, 600 Ohms balanced, level adjustable, simultaneous operation with 2-wire 2-wire I/O: XLR-3M, XLR-3F, externally-switchable RTS or Clear-Com, 200 Ohms, level adjustable, null adjustable to 50dB attenuation, typical Aux Input: XLR-3F with ¼” (6.35mm) combo jack, 600 Ohms balanced, level adjustable Aux Output: XLR-3M, 600 Ohms balanced, level adjustable Headset Connector: 4-pin mini-DIN, Electret microphone Headset Output: 200mW into 32 Ohms Antenna Type: External ½-wave dipole (R-TNC connector), RX/TX horizontal/vertical diversity System Distortion: <2% Communication Security: dual-slot diversity
Transmitter

Type: Frequency Hopping, Spread Spectrum (FHSS) Transmit Power: 100mW burst Modulation Type: Gaussian filtered FSK, TDMA Frequency Stability: 13 ppm Harmonics/Spurious: Exceeds FCC and ETSI specifications over temperature
Receiver

Type: Frequency Hopping, Spread Spectrum (FHSS) RF Sensitivity: <-90dBm w 10-3 BER Frequency Stability: 13 ppm Distortion: <2%
Power Requirements

100 – 240 VAC, 50 – 60 Hz or 12 – 14 VDC
Environmental

Temperature: +32°F – +122°F (0°C – +50°C)
Dimensions

1.75 x 19.0 x 17.13 in (44 x 483 x 435 mm) (HxWxD)
