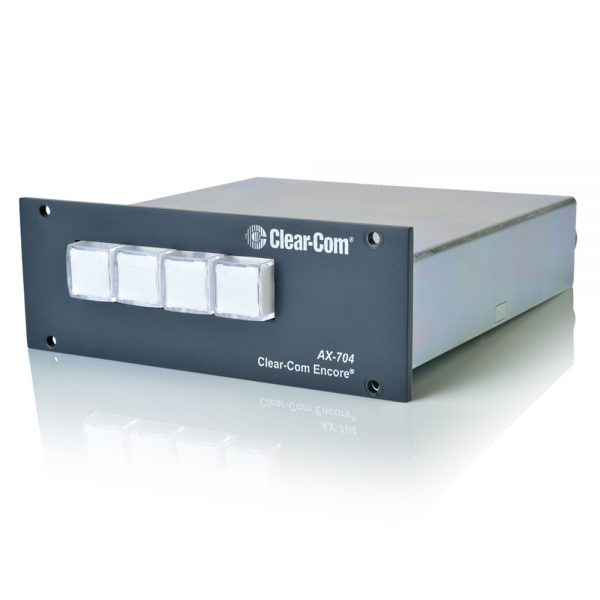

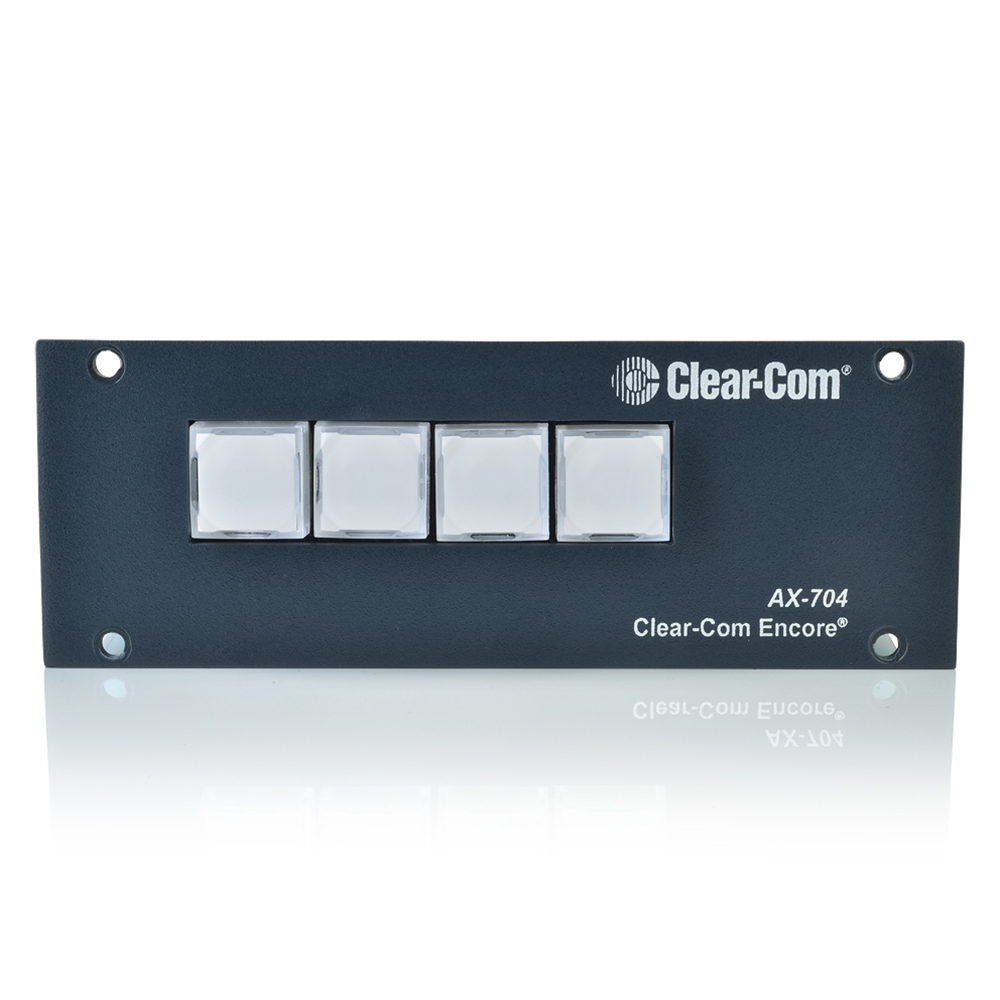

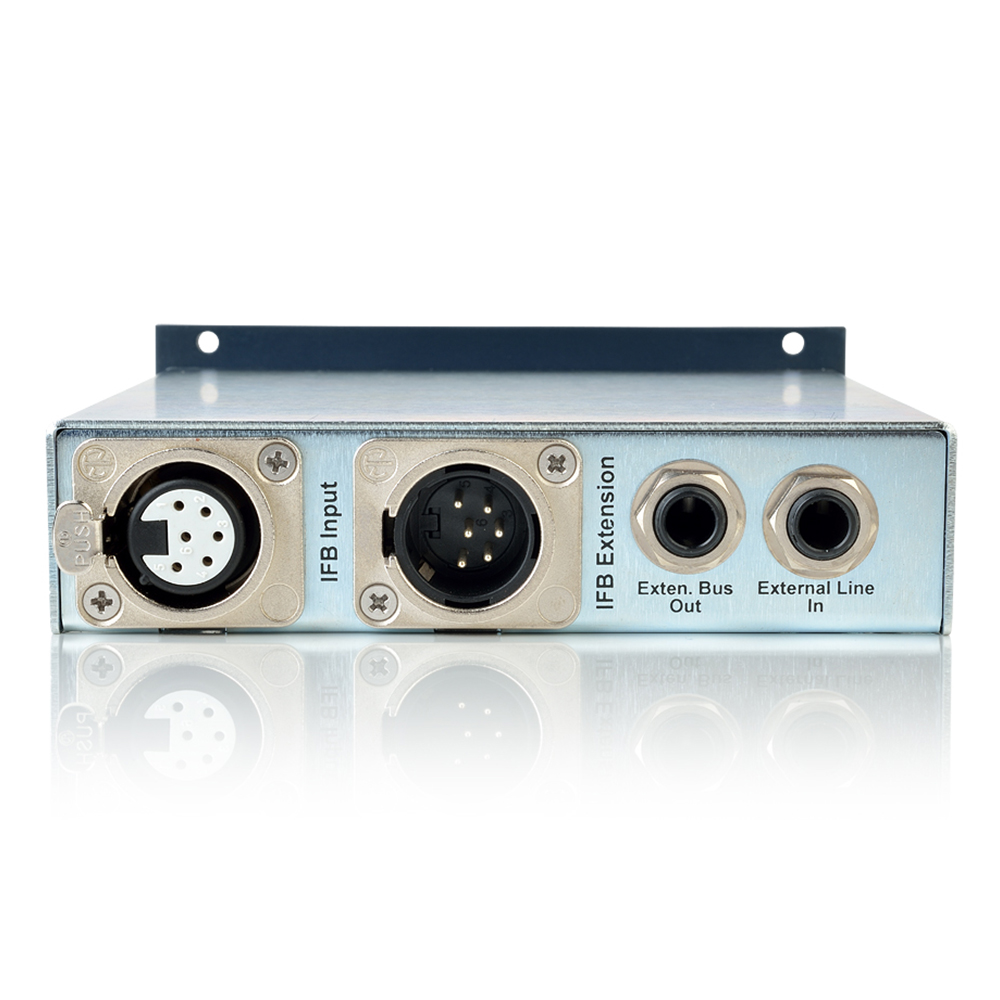

Program Interrupt and IFB Expansion Talent Access Station

SKU: CLEAX-704 Categories: , , , ,

Description

Allows talent to monitor the ongoing program while permitting directors and producers to interrupt or dip the program audio with cues or instructions.

Feature Quick View

  • Program Interrupt and IFB Expansion Talent Access Station
  • Program Interrupt and IFB Expansion Talent Access Station
  • Connect multiple expansion panels for up to 96 Talent channels
  • All IFB button simultaneously access all Talent channels
  • Tally lights indicate IFB channels in use

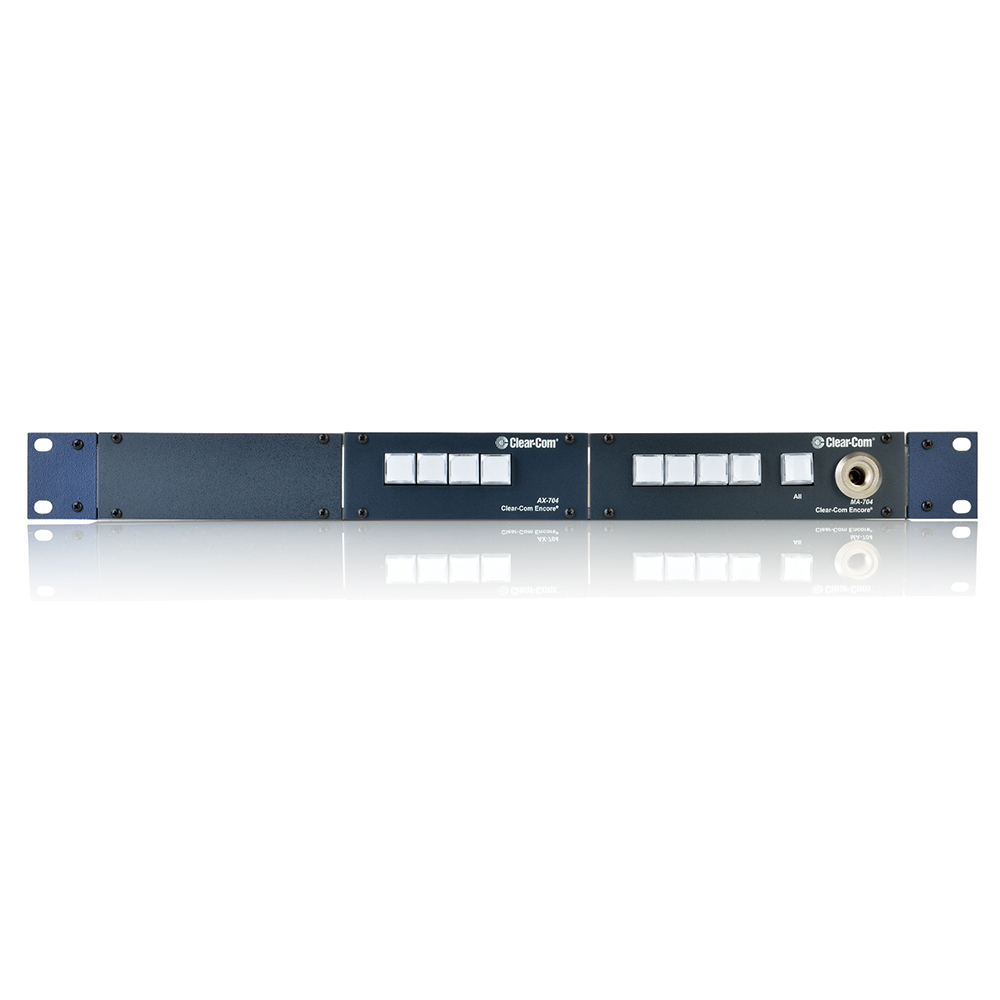

  • Optional rack mount kit for up to 12 talent access buttons in a 1RU
  • Powered by the intercom line

Additional information

Weight 0.61 kg
Headset Microphone Input

Input Type: Dynamic, Electret Input Impedance: 1K Ohms Max Input Level: -60 dBu to -40 dBu switchable
Headset Output

Load Impedance: >= 4 Ohms Output Impedance: 47 Ohms Output Limiter Threshold: -4dBu, + 3dB Max Output Level Before Distortion: -4 dBu
Partyline Output

Off Noise: 10K Ohms Maximum Output: -4 dBu
Partyline Input

Maximum Level Before Clipping: +3 dBu Sidetone Null Capability: >25 dB
Frequency Response

Dynamic Mic – Partyline: 40Hz – 22KHz, + 3 dB Dynamic Mic – Line Out: 20Hz – 22KHz, + 3 dB Dynamic Mic – 4-Wire Out: 100Hz – 22KHz, + 3 dB IFB Input – Headset Out: 100Hz – 22KHz, + 3 dB Partyline – Headset Out: 150Hz – 22KHz, + 3 dB
Max Distortion

Dynamic Mic – Partyline: <0.1% Dynamic Mic – Line Out: <0.05% IFB Input – Headset Out: <0.5% Partyline – Headset Out: <0.1%
Noise

Dynamic Mic – Partyline: <-75 dBu Dynamic Mic – Line Out: <-85 dBu IFB Input – Headset Out: <-65 dBu Partyline – Headset Out: <-65 dBu
Max Gain

Dynamic Mic – Partyline: 41 dB + 3 dB Dynamic Mic – Hot Mic Out: 40 dB + 3 dB IFB Input – Headset Out: 40 dB/22 dB (switchable) + 3 dB Partyline – Headset Out: 34 dB + 3 dB
Power

Intercom/IFB Voltage: 25 – 30 VDC Current: 100mA idle, 120mA max DC Adapter: 100 – 240V Voltage: 30V @ 0.5A
Environmental

32o – 122o F (0o – 50o C)
Dimensions

3 x 6 x 8 in (HxWxD) (76 x 152 x 203 mm)
