Description

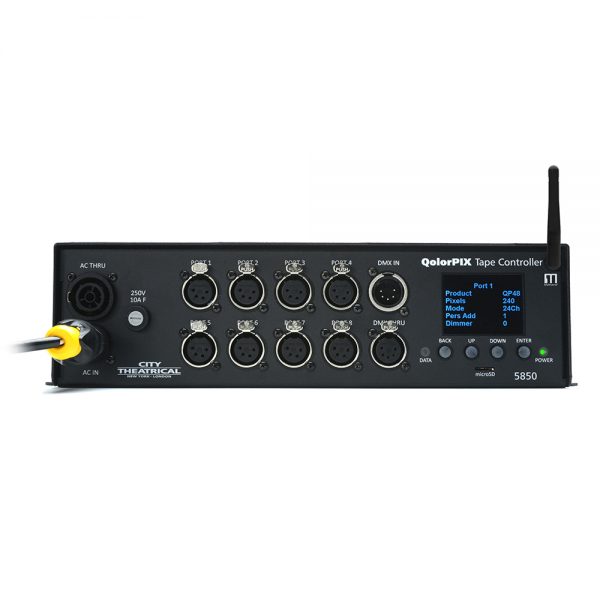

City Theatrical’s QolorPIX® Tape Controller (P/N 5850) is preconfigured with personality profiles that can be combined and adjusted to produce thousands of dynamic effects with QolorPIX Pixel Controlled LED Tape using only a few DMX channels. Any lighting effect you can imagine – chases, fades, scrolls, bursts, and more – can be created in minutes.
The QolorPIX Tape Controller offers eight ports, which accommodate a total of 40 meters of QolorPIX Pixel Controlled LED Tape. A user friendly control interface allows you to change mode, pixel length, dimmer, personality start address, strip type, fixture ID, and direction. The controller features an integrated power supply, a test function and flicker finder for easy troubleshooting. It also offers wireless DMX control using state of the art Multiverse® technology.
Features
- Supports ANSI E1.11 DMX512-A
- Compatible with QolorPIX LED Tape
- Effects engine enables controlling entire length of QolorPIX Tape with only 16 or 32 DMX Addresses
- Eight output ports individual pixels on each port
- Firmware is user updateable through micro-SD card slot
- Controllable via DMX512-A, recordable presets, and test routine
- DMX512 control through effects engine, RGB, and pixel address modes

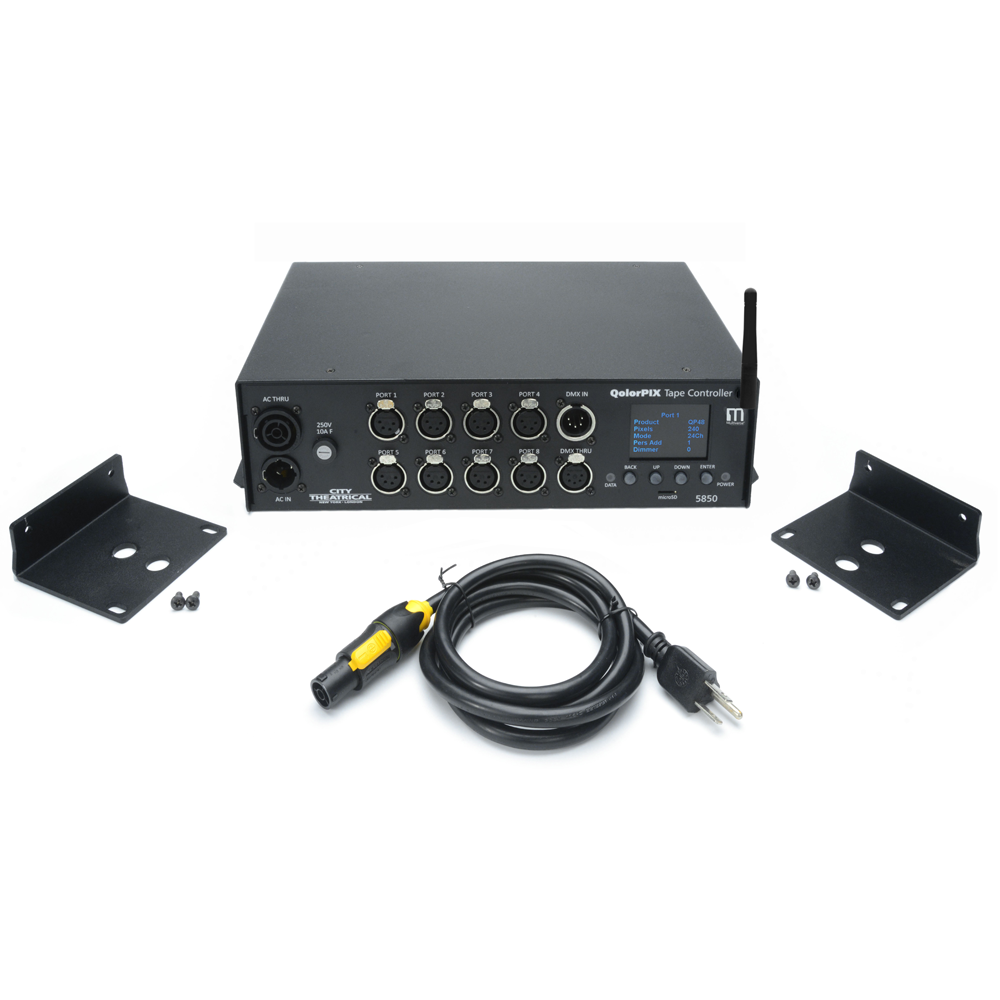

- Can be mounted in a standard 19-inch rack with included mounting accessories. Requires 2U rack spaces.
Video
QolorPIX Plug and Play Lighting Effects
Want to create and modify thousands of dynamic lighting effects quickly and easily? This video will help you learn how to create paparazzi, comet, jockey, checkers, color merge, wave, sweep, VU, strobe, knight rider, and more lighting effects to your professional lighting toolbox today.
