4x5A DINrail RJ45 Dimmer can control a full 20A of LED tape spread over four channels of 5A each.

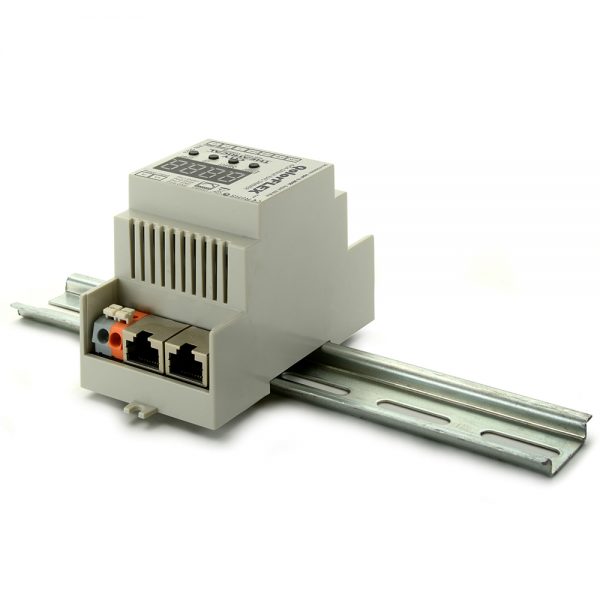

City Theatrical’s QolorFLEX® 4x5A DINrail RJ45 Dimmers (P/N 5823) are low voltage, constant voltage, dimmers and can control a full 20A of LED tape spread over four channels of 5A each. The unit mounts to a standard hat section DINrail, and features two RJ45 connectors for DMX communication.
The QolorFLEX 4x5A DINrail RJ45 Dimmer requires an external power supply to suit the LED tape you are using. For indoor use.
| Weight | 0.14 kg |
|---|---|
| Maximum Current per device | 20A |
| Maximum load per output channel | 5A |
| User Interface | 4 button, plus alpha/numeric display |
| Output channels | User selectable of one to four |
| Resolution | User selectable- 8 bit or 16 bit |
| PWM Frequencies | User selectable- 500Hz to 30KHz |
| Dimming Curves | User selectable- 99 |
| DMX Connections | 2x RJ45 |
| RDM capable | Yes |
| Construction | NEMA 1 ABS enclosure |
| Compliance | CE, RoHS, FCC |
| Physical | Weight .25 lbs (.11 kg) |
