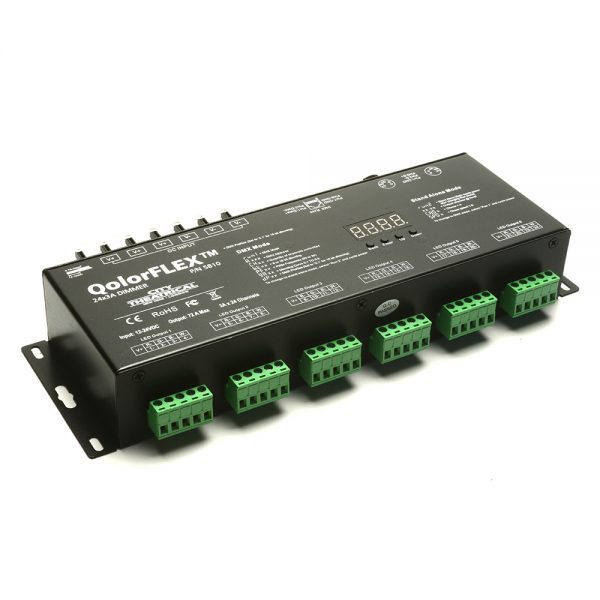

City Theatrical – QolorFLEX 24x3A DIMMER

City Theatrical

24x3A Dimmer is ideal for applications such as retail displays, signage, and general architectural work.

Description

City Theatrical’s QolorFLEX® 24x3A Dimmer (P/N 5810) is a low voltage, constant voltage, dimmer that is ideal for applications such as retail displays, signage, and general architectural work. It features 24 channels of control and is ideal for one-, two-, three- or four-colour LED tape installations. This dimmer is fully DMX and RDM compatible and offers standalone functions.

The QolorFLEX 24x3A Dimmer’s maximum current load per channel is 3A with a Maximum Device Input of 72A. It requires an external power supply to suit the LED tape you are using. For indoor use.

Video

QolorFLEX Overview

CLighting and scenic professionals live in a high stakes world. Every light is critical to a performance or installation. City Theatrical’s QolorFLEX brand of professional-grade LED tape products was developed to help designers and technicians alike with high quality, mission-critical technology that can be easily incorporated into motion picture, television, Broadway, and architectural installation projects. The QolorFLEX line now includes QolorFLEX LED Tape, QolorFLEX 5-in-1 LED Tape, QolorFLEX Dimmers, QolorPIX LED Pixel Tape and Controllers, QolorFLEX NuNeon linear lighting, and a variety of useful accessories, making it a single resource for reliable, and highly creative, LED tape lighting.

Additional information

Outpur Channels

24

Max Output per Channel

3A

Max Dimmer Output

72A

Size L x W x H

10.24 x 4.72 x 1.57 in
(260 x 120 x 40 mm)

Power Connections

Screw Terminals

Output Connections

Screw Terminals

DMX Connections

5 Pin XLR, Screw Terminals and RJ45

DMX Address

DIP Switches

Operating Temperature

-29º to 65º C

Compliance

CE, RoHS

Downloads

Data Sheet Download
User Guide Download
