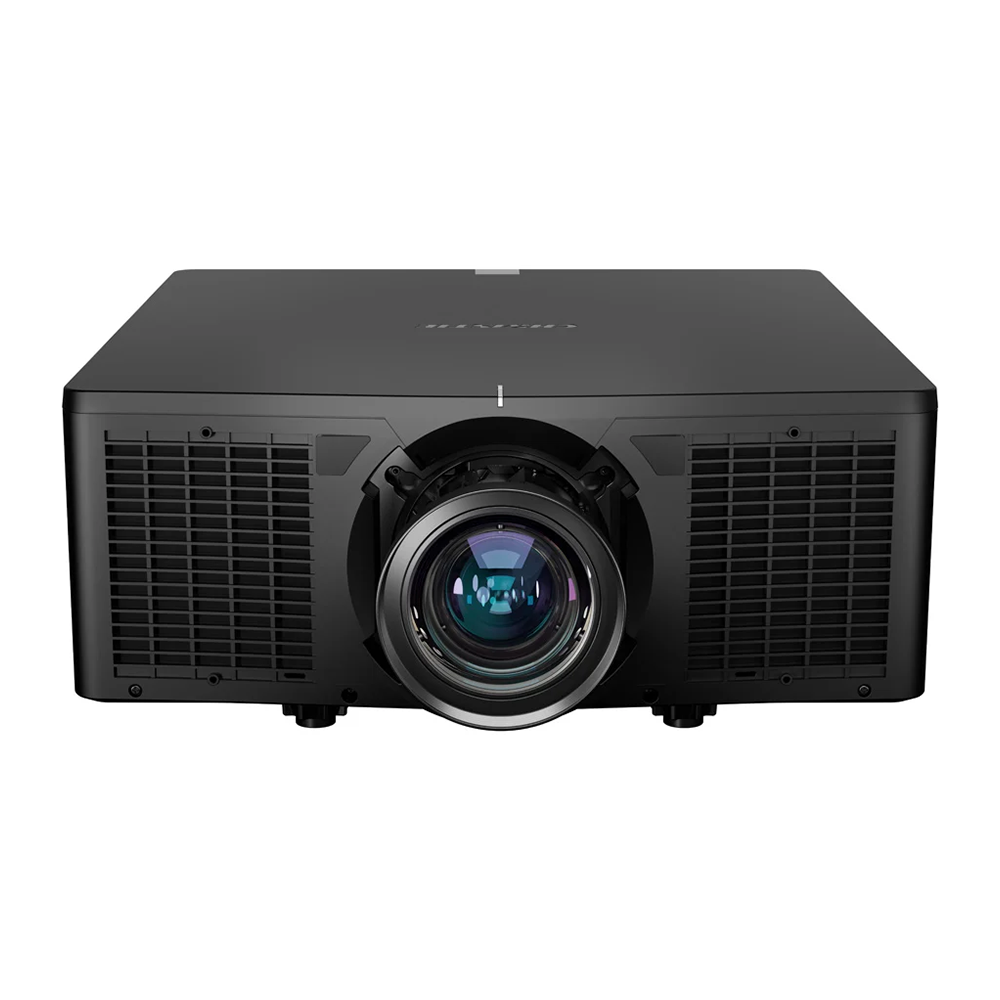

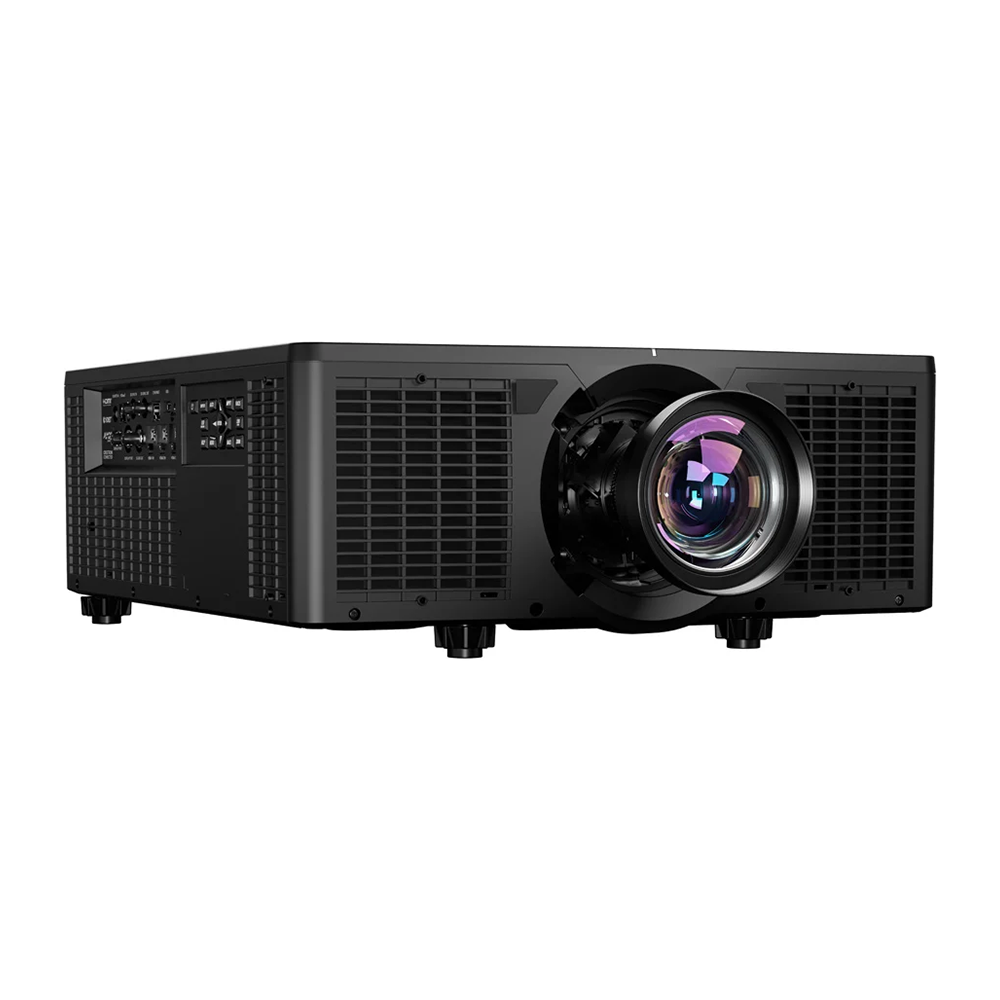

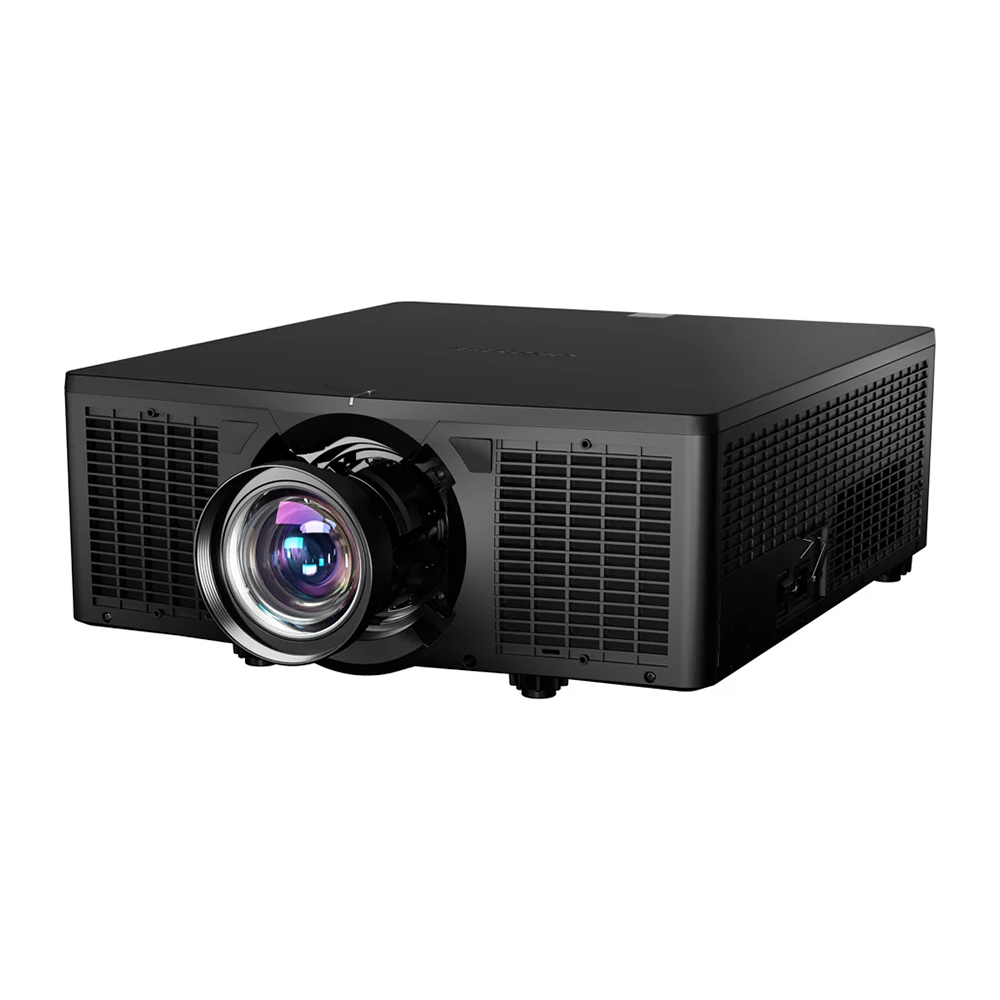

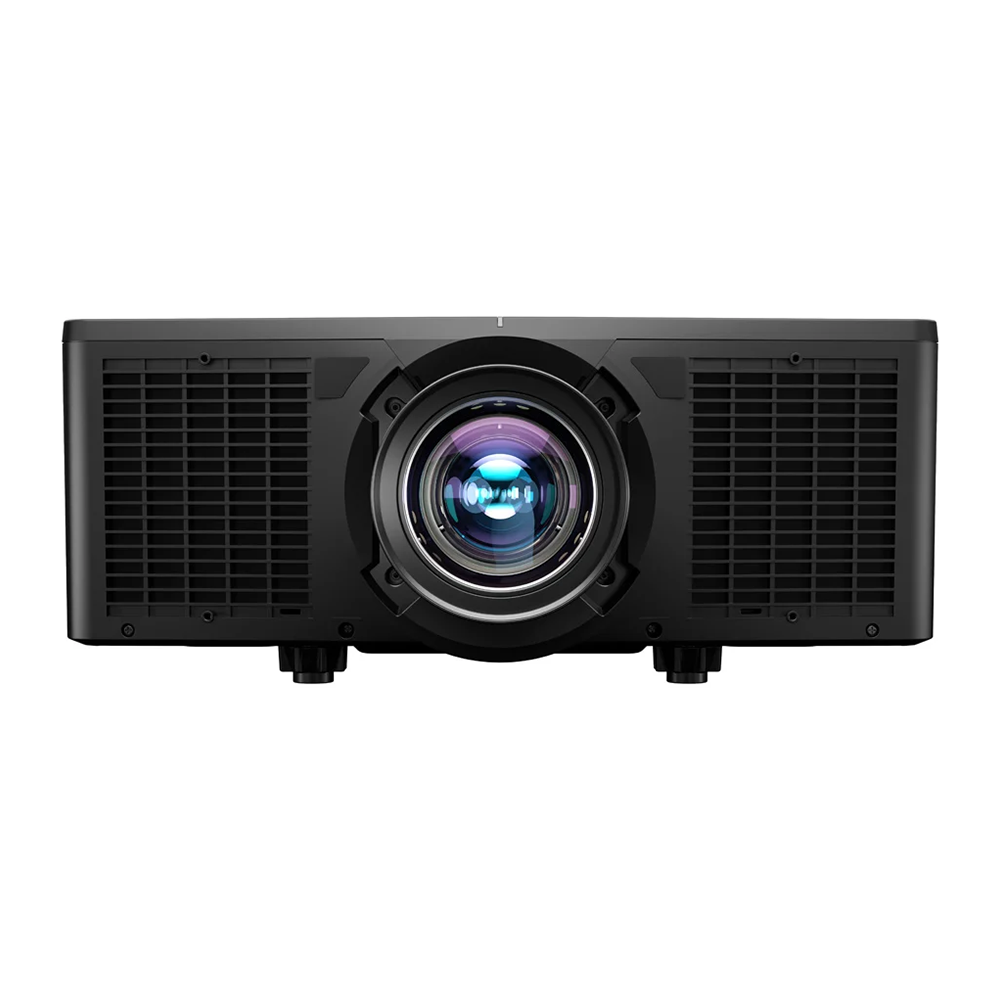

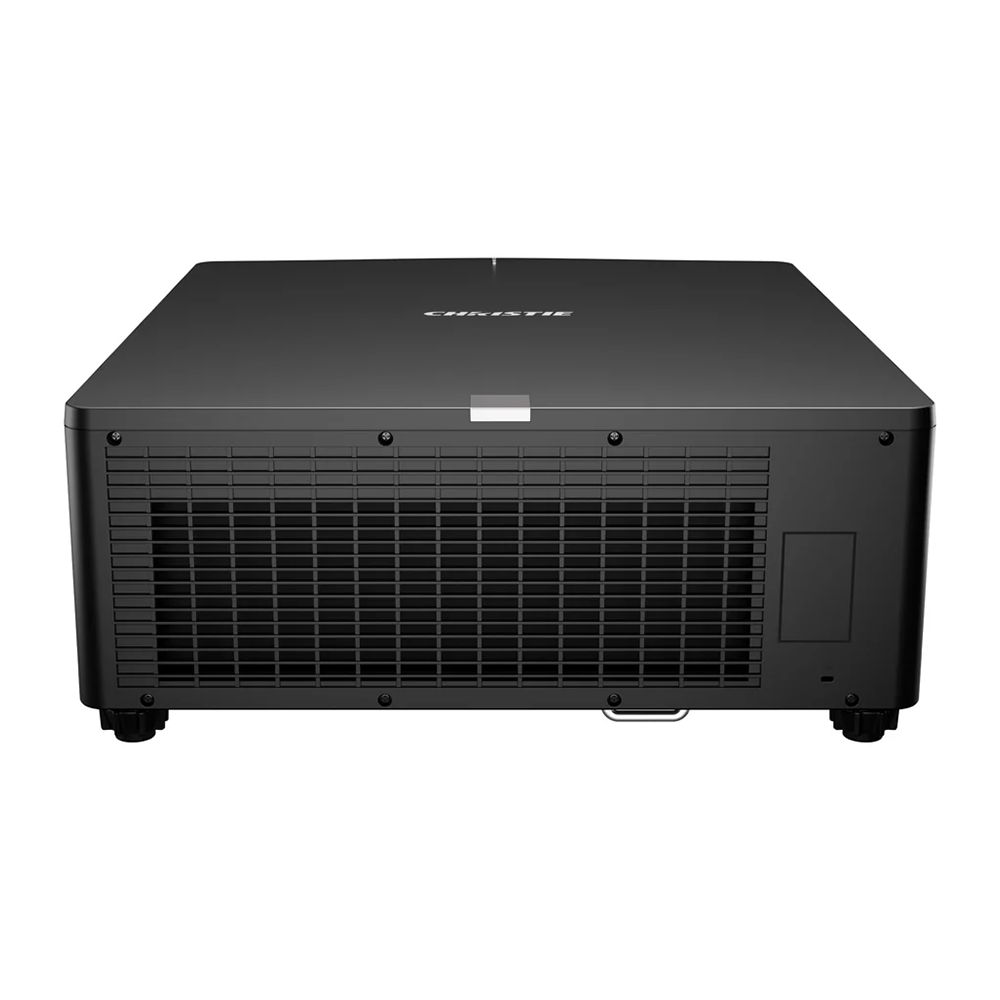

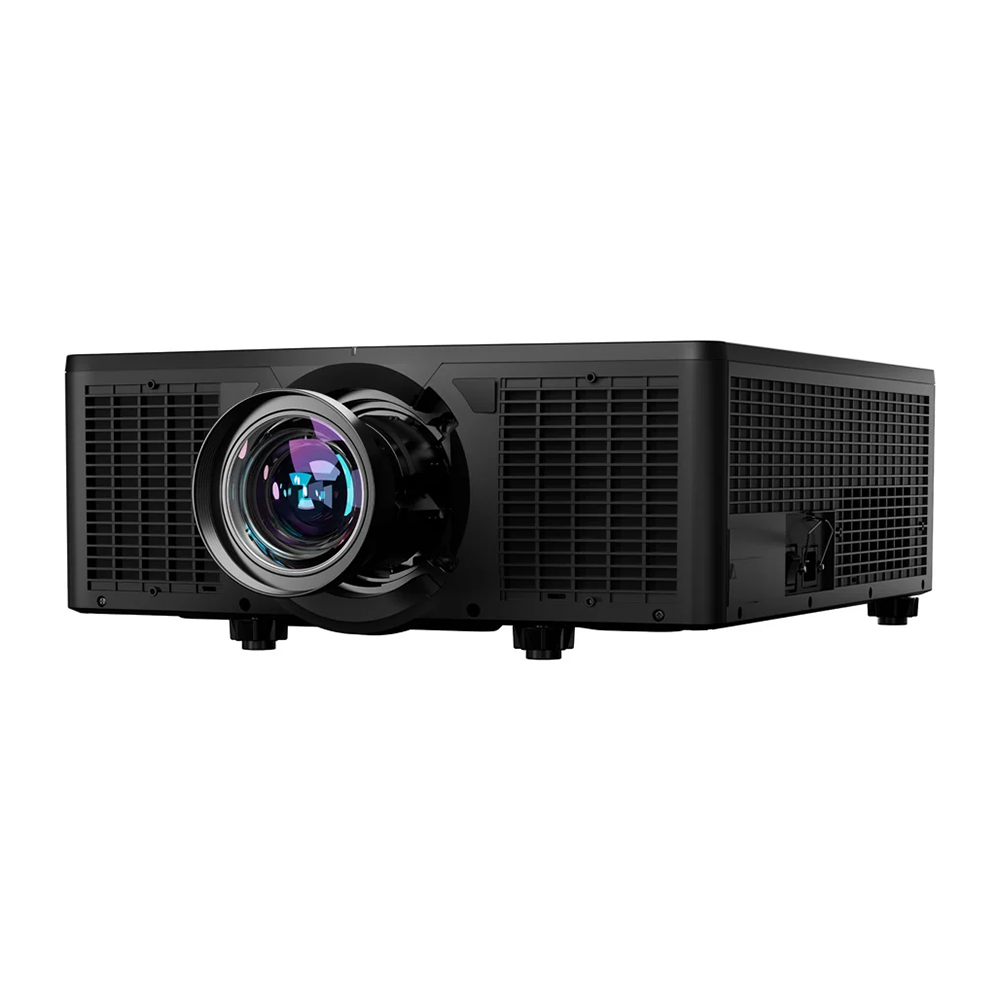

Christie – Jazz 4K2100-JS

Christie

21,350 lumen, 4K UHD+, 1DLP laser projector

Description

Impressively light. Outstandingly bright. In tune with your budget

Powered by a new generation of advanced electronics, Christie® Jazz Series 1DLP laser projectors hit all the right notes with stunning visuals and exceptional value. The 4K2100-JS delivers 21,350 lumens of colors that pop, deeper blacks, and lifelike contrast, all from a remarkably small chassis weighing less than 65lbs (30kg).

Features

  • Higher brightness for a bigger impact: The brightness levels you want at an incredible price.
  • Flexible, versatile design: With its extraordinarily compact form factor and quiet operation, it’s easy to handle, install, and fit your space.
  • Dynamic contrast for lifelike imagery: Dive into a world of depth and detail with a dynamic contrast ratio of 25,000:1.
  • Cutting edge, advanced electronics: Texas Instruments’ 0.8” HEP DMD and optical design give you improved color, contrast, and a more efficient cooling system design.
  • Complete solutions that work for you: Warping and blending are made easier with Christie Twist™ onboard to expertly edge blend and stack multiple images and our optional Mystique™ camera-based software that lets you automatically align, stack, and blend multi-projector systems.
  • Compatible with Christie Intelligent Camera: Trigger autofocus, automatically calibrate projector color, optimize color uniformity, and more.

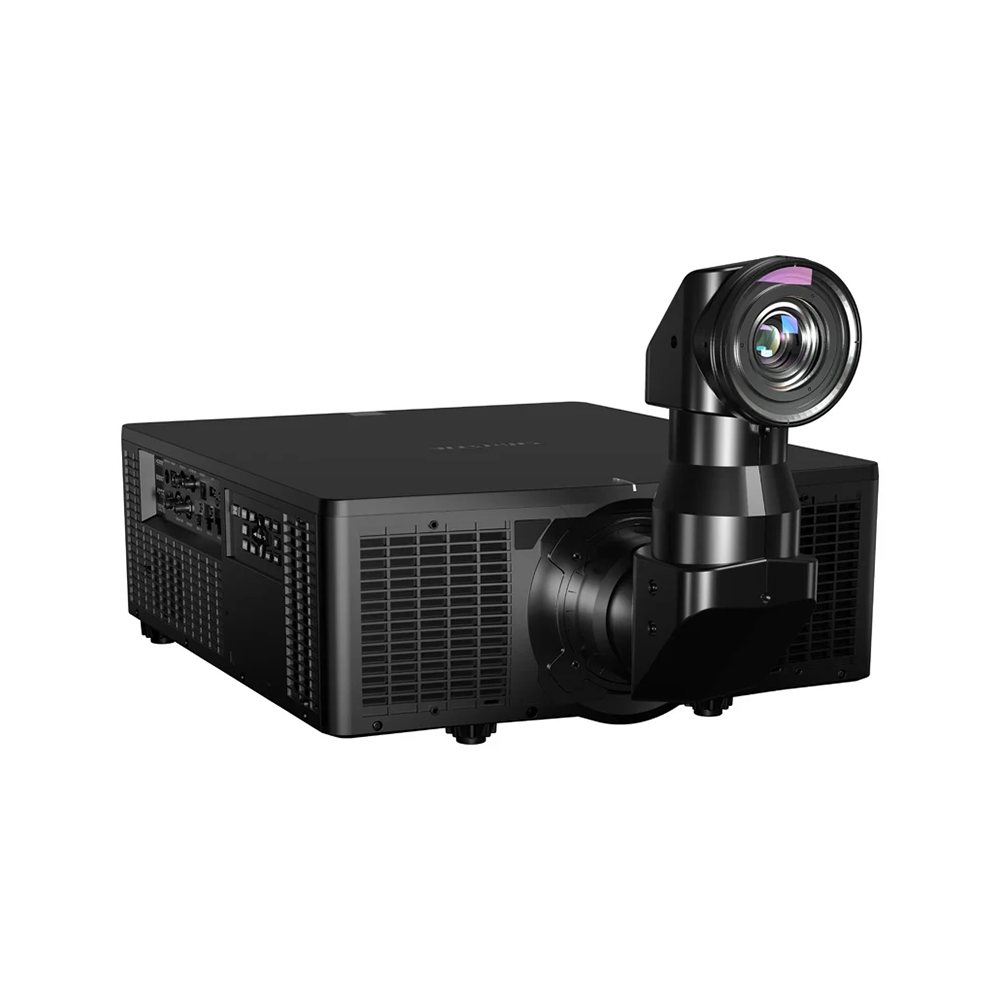

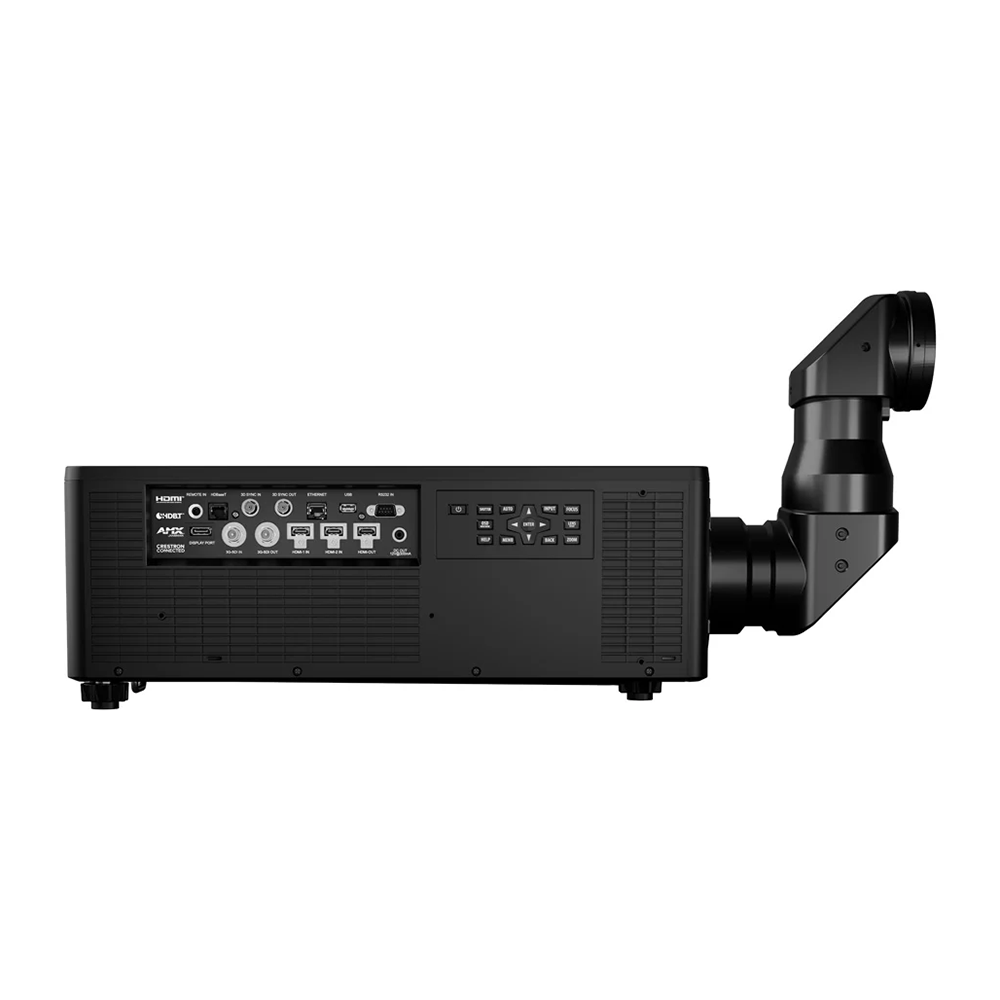

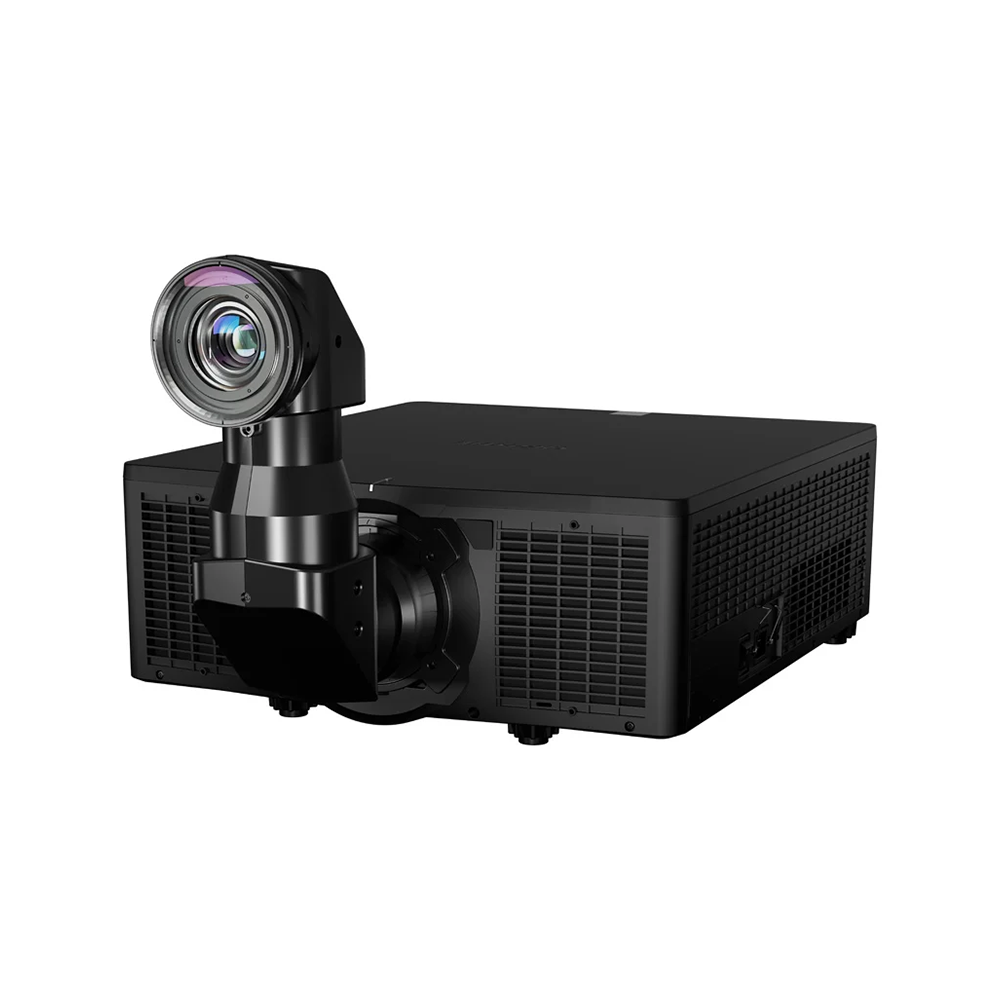

  • Wide range of lens options: With nine interchangeable lenses, including ultra-short throw, you can find the lens that works best for your project.
  • Immersive 3D experiences: Explore the creative possibilities with active 3D functionality.
  • Reliability you can trust: Get extra peace of mind with our industry-leading five-year warranty and virtually maintenance-free operation that works for you 24/7.

We’re here to support your investment

Backed by Christie’s industry-leading warranties, service, and support, you can feel confident investing in the Christie Jazz Series.

Additional information

Weight 43.0 kg
Brightness

21,350 ISO lumens*
18,000 ANSI lumens*
*Brightness level is +/- 5%

Color wheel

4 segment – 4X speed color wheel

Contrast ratio

4,000,000:1 with Christie RealBlack**
** Christie RealBlack disabled: 1,500:1

Dynamic contrast

25,000:1

Display type

1 x 0.8" HEP DMD

Illumination type

High-efficiency blue laser phosphor

Illumination performance (hrs)

20,000 hours to 50% brightness

Orientation

Omnidirectional

Scan rates

Horizontal: 15.375 KHz~ 135.0 KHz ; Vertical: 23.98 Hz ~ 120 Hz

Pixel clock rate

600 MHz

Resolution

4K UHD+ 3840 x 2400
WUXGA 1920 x 1200 (native)

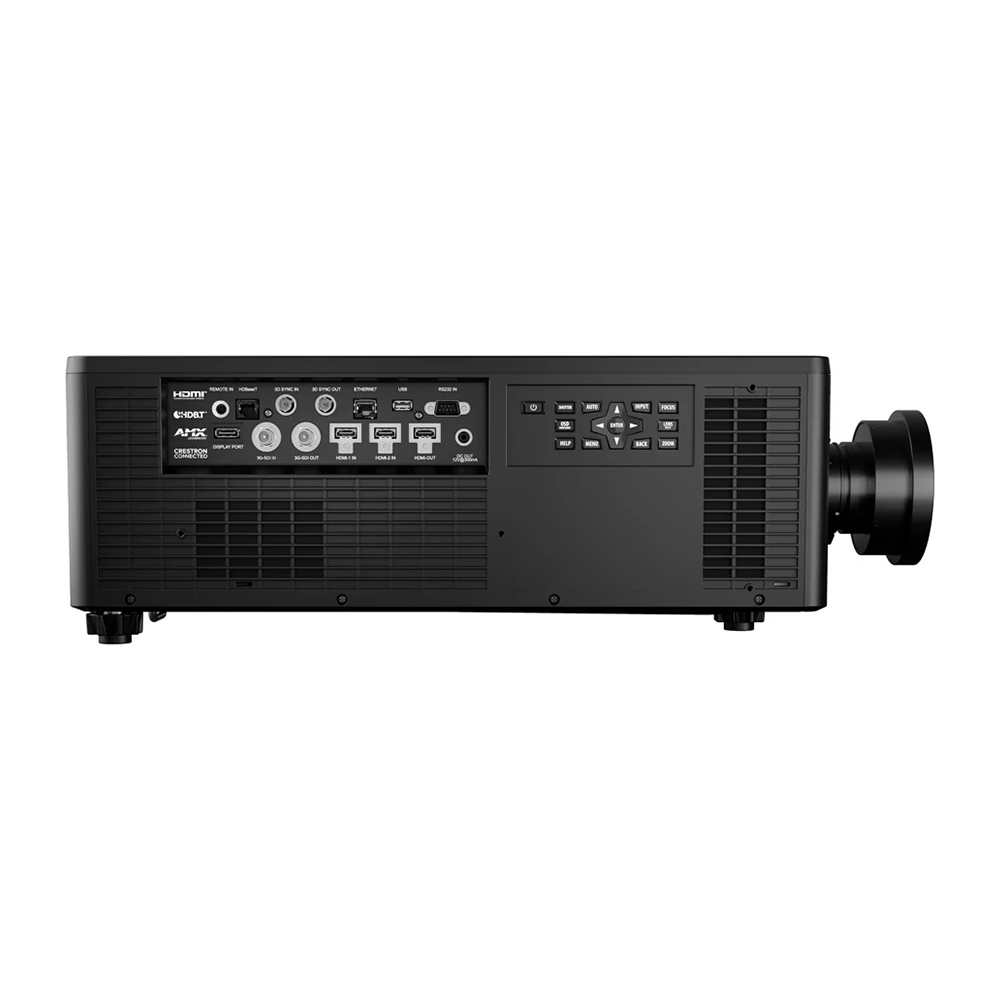

Signal i​nputs

Standard:
– HDMI 2.0b x 2
– Display Port 1.2a x 1
– USB Type A x 1
– HDBaseT 3.0 (RJ45) x 1
– 12G-SDI (BNC) x 1

Signal outputs

– 12G-SDI (BNC)
– HDMI x 1 out

Control and networking

– HDBaseT 3.0 (RJ45 x 1)
– RJ45 x 1 (Ethernet Control over wired network connection)
– RS232 x 1
– Remote in: 3.5mm stereo female (provides serial communications and power)
– DC JACK 12VDC, 200 mA

Warpin​g and blending

Standard:
– Christie Twist
Optional:
– Christie Twist Premium and Twist Pro
– Christie Mystique automated camera-based alignment

Power requirements

– Operating voltage: 100-240 VAC @ 50/60 Hz
– Power consumption: 1,340W (max)
– Operating current: 6.09A (220-240 VAC)

Dissipation

– Normal mode: 4,572 BTU/hr
– Eco1: 3,685 BTU/hr
– Eco2: 2,423 BTU/hr

Audible noise

– Standard mode: 49dBA (Max.)
– Eco2: 45dBA (Max.)

Dimensions (L x W x H)

– 23.6 x 20.5 x 7.6" (600 x 520 x 193mm)

Shipping dimensions (L x W x H)

– 38 x 31.30 x 14.6" (965 x 795 x 370mm)

Shipping Weight

– 94.71lbs (43.0kg)

Operating environment

– Temp: 32-113 F (0-44 C) (0 – 2,500 feet altitude)
– Relative humidity: 10 – 85% non-condensing

Regulatory

– This product conforms to all relevant European directives, standards, safety, health and environmental concerns
– Directives: RoHS, REACH, WEEE
– Contact Christie for timing of certifications: UL/CSA/IEC 60950-1 FCC Class A cTUVus CE FDA CCC KC PSE EAC BIS VCCI RCM Mexico BSMI

Limited warranty

– Five years parts and labor on the projector
– Five years or 20,000 hours parts and labor on the illumination system***
– Contact an authorized Christie representative for full details of our limited warranty
