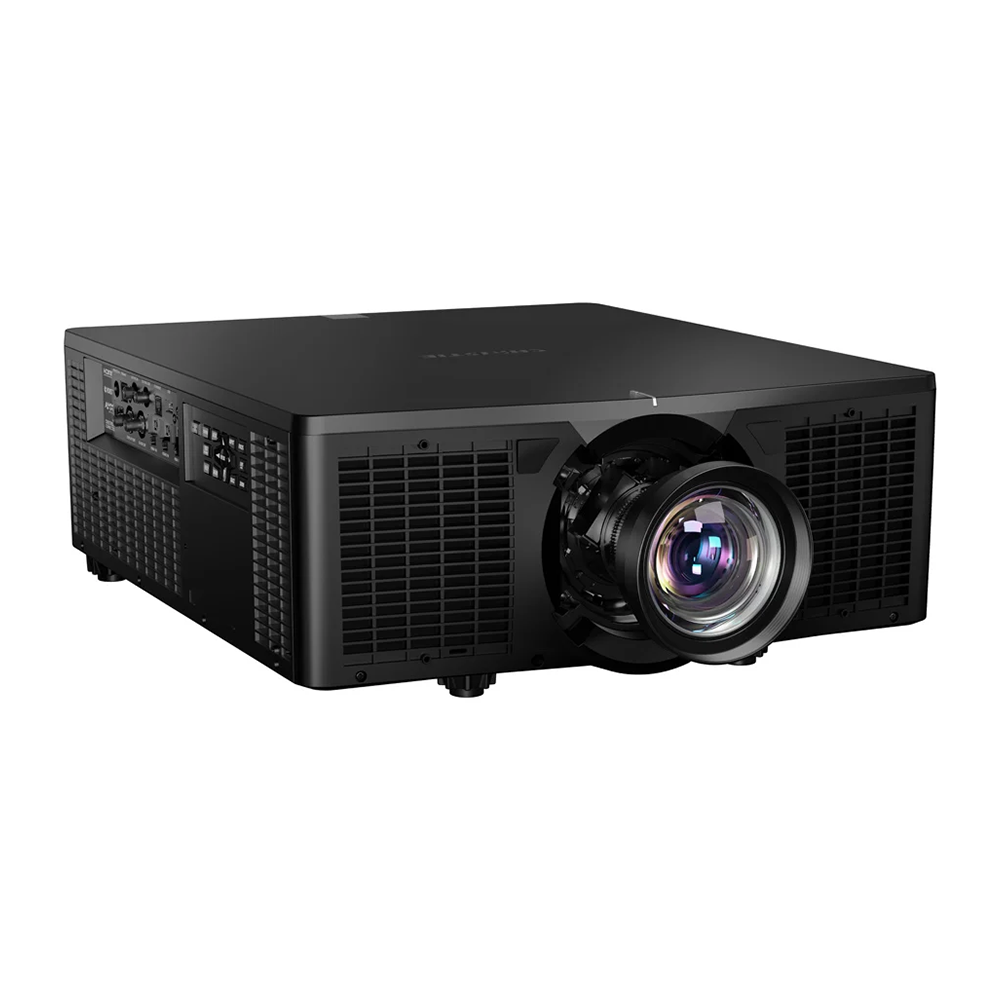

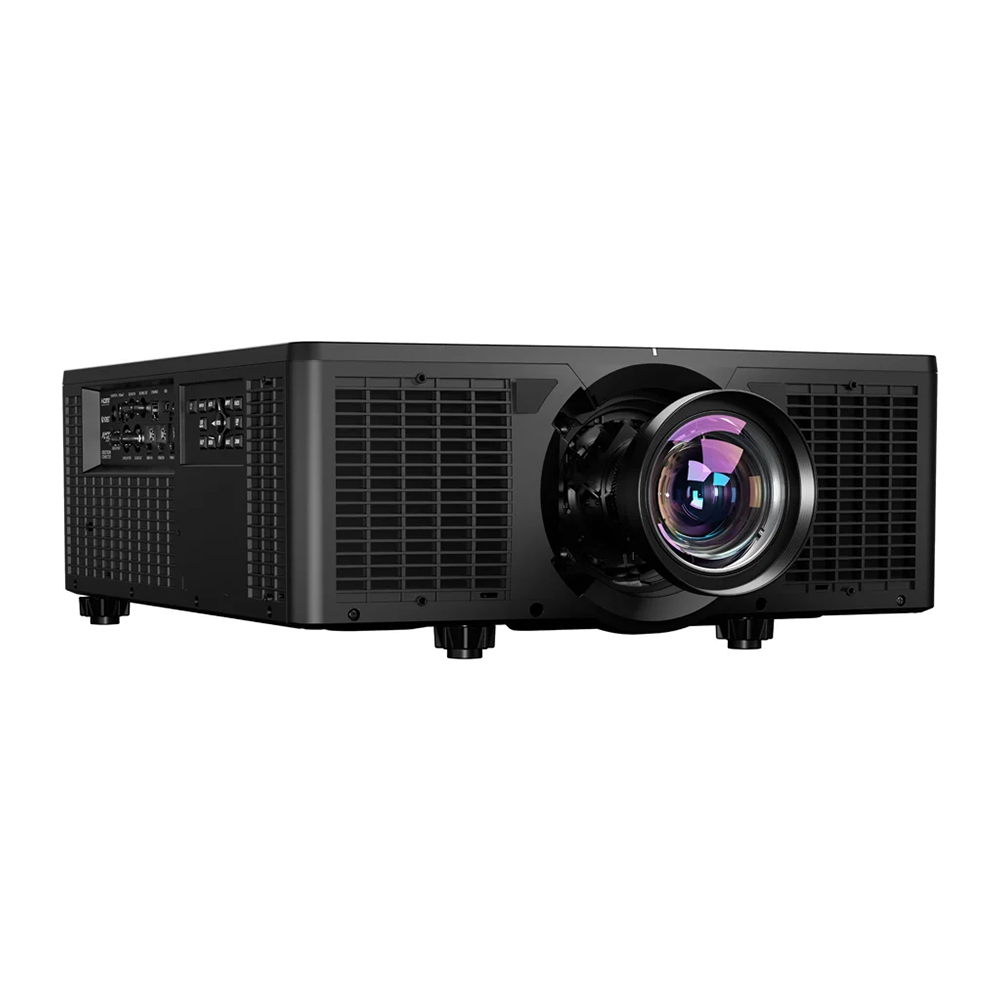

Christie-DWU1800-JS-Front-Right-AngledChristie-DWU1800-JS-Front-Right-Angled

Christie – Jazz DWU1800-JS

Christie

17,800 lumen, WUXGA, 1DLP laser projector

SKU: 171-076104-01 Categories: , , , , , ,

Description

Impressively light. Outstandingly bright. In tune with your budget.

Powered by a new generation of advanced electronics, Christie® Jazz Series 1DLP laser projectors hit all the right notes with stunning visuals and exceptional value. The DWU1800-JS delivers 17,800 lumens of colors that pop, deeper blacks, and lifelike contrast, all from a remarkably small chassis weighing less than 65lbs (30kg).

Features

  • Higher brightness for a bigger impact: The brightness levels you want at an incredible price.
  • Flexible, versatile design: With its extraordinarily compact form factor and quiet operation, it’s easy to handle, install, and fit your space.
  • Dynamic contrast for lifelike imagery: Dive into a world of depth and detail with a dynamic contrast ratio of 25,000:1.
  • Cutting edge, advanced electronics: Texas Instruments’ 0.8” HEP DMD and optical design give you improved color, contrast, and a more efficient cooling system design.
  • Complete solutions that work for you: Warping and blending are made easier with Christie Twist™ onboard to expertly edge blend and stack multiple images and our optional Mystique™ camera-based software that lets you automatically align, stack, and blend multi-projector systems.
  • Compatible with Christie Intelligent Camera: Trigger autofocus, automatically calibrate projector color, optimize color uniformity, and more.

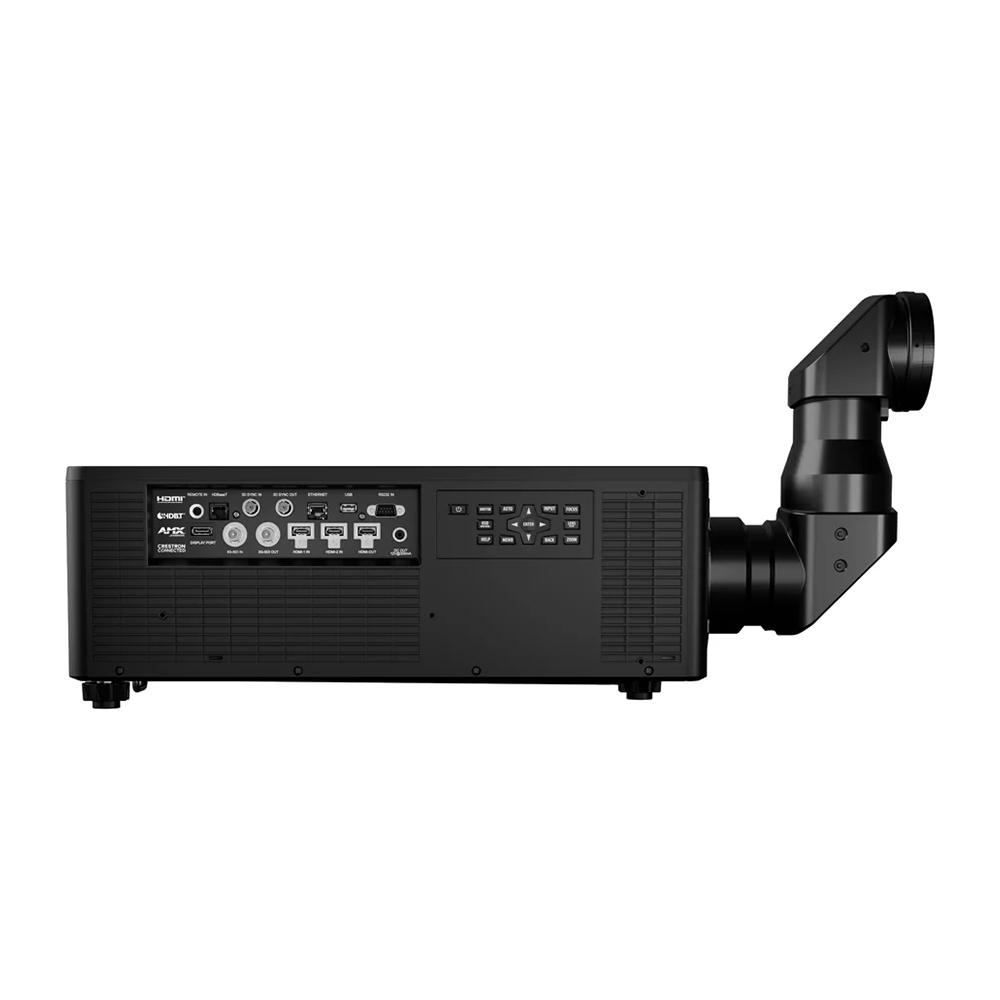

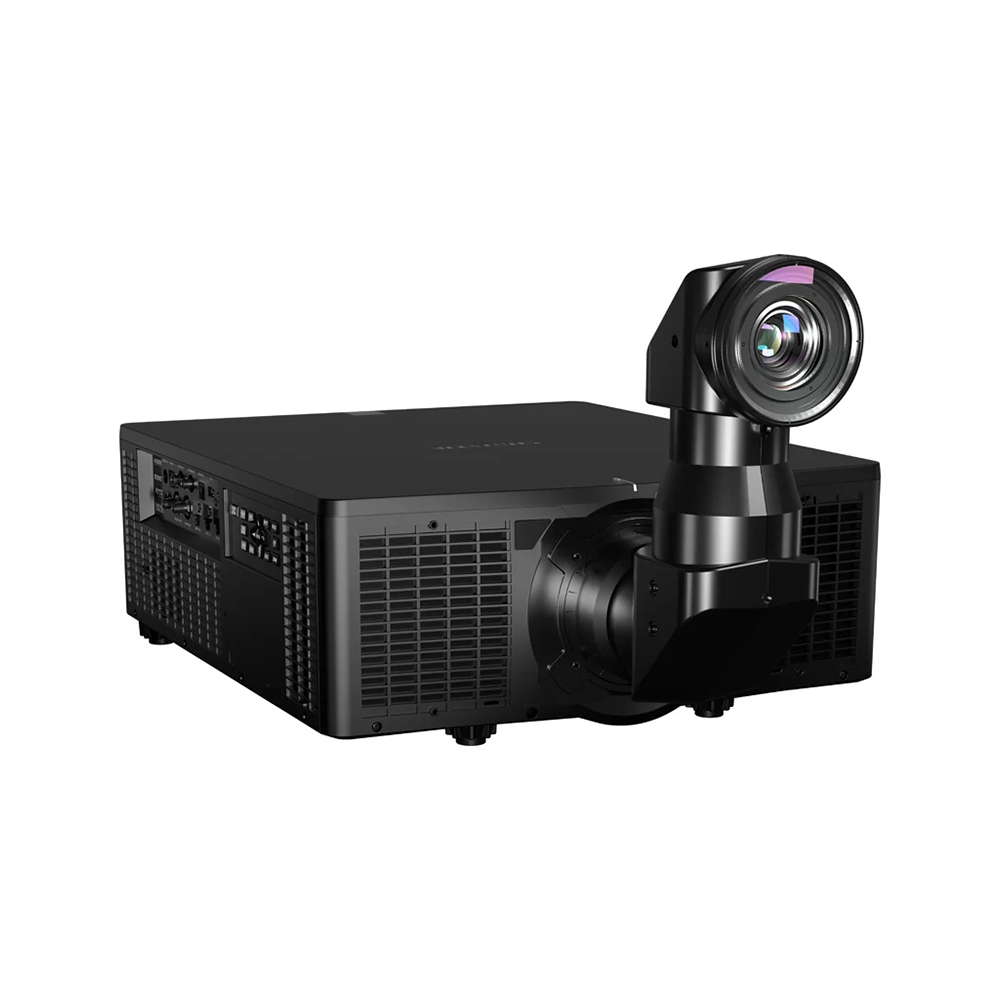

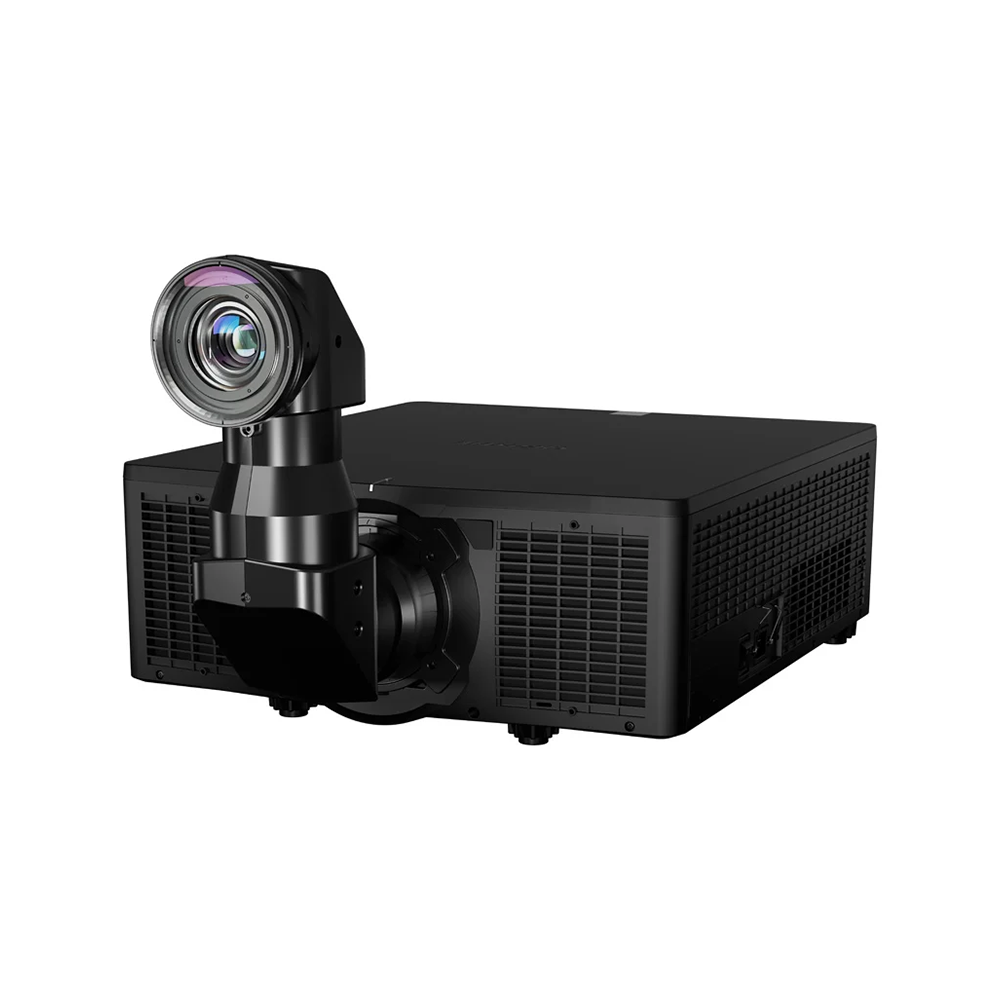

  • Wide range of lens options: With nine interchangeable lenses, including ultra-short throw, you can find the lens that works best for your project.
  • Immersive 3D experiences: Explore the creative possibilities with active 3D functionality.
  • Reliability you can trust: Get extra peace of mind with our industry-leading five-year warranty and virtually maintenance-free operation that works for you 24/7.

We’re here to support your investment

Backed by Christie’s industry-leading warranties, service, and support, you can feel confident investing in the Christie Jazz Series.

Video

Meet Christie Korus Series – 4K 1DLP laser projectors

Miles Donovan, director of sales for Christie® EMEA, introduces Korus Series 1DLP laser projectors. Powered by advanced 0.8” HEP DMD technology and built for a broad range of professional AV applications, Korus Series unites stunning 4K UHD+ clarity, color, and contrast with exceptional efficiency and versatility in a compact, lightweight design.

Additional information

Weight 29.4 kg
Brightness

17800 ISO lumens*
15000 ANSI lumens*
*Brightness level is +/- 5%
Color wheel

4 segment – 3X speed color wheel
Contrast ratio

4,000,000:1 with Christie RealBlack**

** Christie RealBlack disabled: 1,500:1
Dynamic contrast

25,000:1
Display type

1 x 0.8" HEP DMD
Resolution

WUXGA (1920 x 1200)
Illumination type

High-efficiency blue laser phosphor
Illumination performance (hrs)

20,000 hours to 50% brightness
Orientation

Omnidirectional
Scan rates

Horizontal: 15.375 KHz~ 135.0 KHz ; Vertical: 23.98 Hz ~ 120 Hz
Pixel clock rate

600MHz

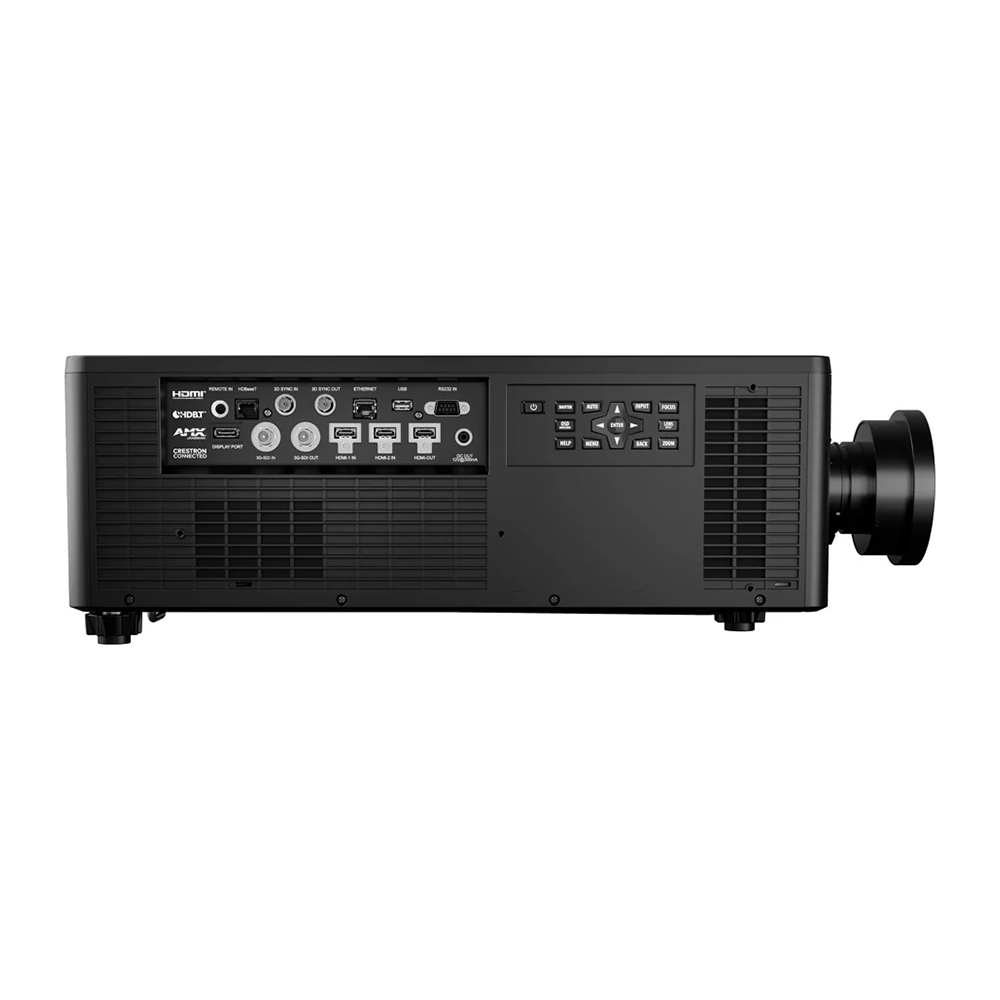

Signal i​nputs

Standard:
– HDMI 2.0b x 2
– Display Port 1.2a x 1
– USB Type A x 1
– HDBaseT RJ45 x 1
– 3G-SDI (BNC) x 1
Signal outputs

– 3GSDI (BNC)
– HDMI 2.0 x 1 out
Control and networking

– HDBaseT (RJ45) x 1
– RJ45 x 1 (Ethernet Control over wired network connection)
– RS232 x 1
– Remote in: 3.5mm stereo female (provides serial communications and power)
– DC JACK 12VDC, 200 mA
Warpin​g and blending

Standard:
– Christie Twist
Optional:
– Christie Twist Premium and Twist Pro
– Christie Mystique automated camera-based alignment
Power requirements

– Operating voltage: 100-240 VAC @ 50/60 Hz
– Power consumption: 1,204W (max)
– Operating current: 3.99A (220-240 VAC)
Dissipation

– Normal mode: 2,996 BTU/hr
– Eco1: 2,348 BTU/hr
– Eco2: 1,515 BTU/hr
Audible noise

– Standard mode: 44dBA
– Standard mode: 40dBA
Dimensions (L x W x H)

– 23.6 x 20.5 x 7.6" (600 x 520 x 193mm)
Shipping dimensions (L x W x H)

– 38 x 31.30 x 14.6" (965 x 795 x 370mm)
Shipping Weight

– 94.71lbs (43.0kg)
Operating environment

– Temp: 32-113 F (0-44 C) (0 – 2,500 feet altitude)
– Relative humidity: 10 – 85% non-condensing
Regulatory

– This product conforms to all relevant European directives, standards, safety, health and environmental concerns
– Directives: RoHS, REACH, WEEE
– Contact Christie for timing of certifications: UL/CSA/IEC 60950-1 FCC Class A cTUVus CE FDA CCC KC PSE EAC BIS VCCI RCM Mexico BSMI
Limited warranty

– Five years parts and labor on the projector
– Five years or 20,000 hours parts and labor on the illumination system***
– Contact an authorized Christie representative for full details of our limited warranty
