Description

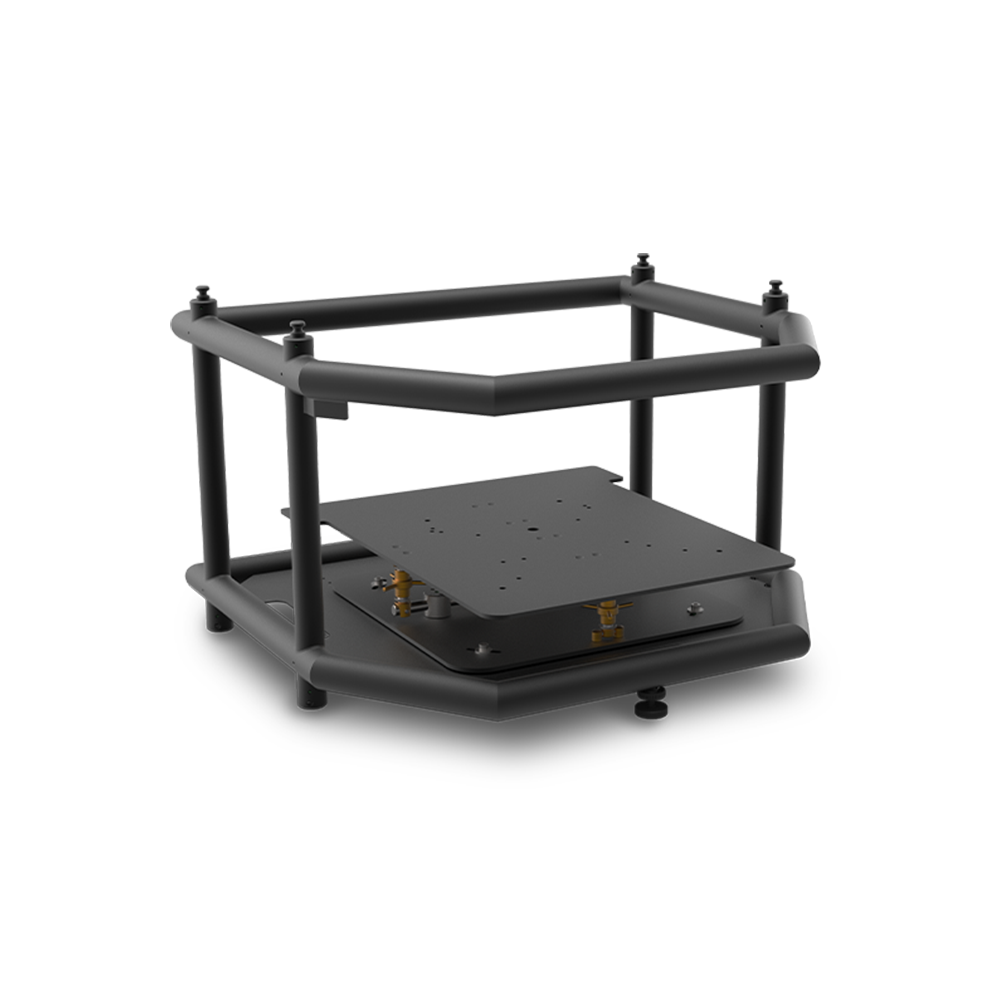

The V2 is a redesign of the Christie® One Rigging Frame to support the use of Ultra Short Throw (UST) L-shaped lenses, including the HS UST 0.38 lens. Designed for our newer HS Series 1DLP® projectors, this single assembly rigging frame fastens to the bottom of your projector. GS and Inspire Series 1DLP projectors can also be installed in the V2 frame.
When hung in normal or inverted orientations, you have the option to stack up to three projectors in V2 frames.
The Christie One Rigging Frame V2 can also be used to mount the projectors to truss in portrait orientation.
Features
- Independent controls for adjusting pitch, yaw and tilt for quicker and more accurate setup with lock downs available for each adjustment.
- Individual projector adjustments within a stack (up to 3 projectors high) – enabling modifications to a single projector without affecting the other connected projectors.
- Standard tubing (50mm OD pipe) accommodates common burger and industry clamps.
- Design enables easy access to projector for installation, lamp/filter replacements and maintenance.
- Fully compatible with L-Shaped UST lenses
- Steel Frame
- Packaged(GW): 38.2kg (84.89lbs)
- Unpacked: 34.45kg (76.56lbs)
Compatibility
- Christie 4K1600-JS
- Christie 4K2100-JS
- Christie DWU1800-JS
- Christie DWU2400-JS
- Christie 4K22-HS
- Christie 4K13-HS
- Christie DWU15-HS
- Christie DWU19-HS
- Christie DWU23-HS
- Christie 4K7-HS
- Christie 4K10-HS
- Christie D16WU-HS
- D20HD-HS
- Christie D20WU-HS
- Christie D13WU2-HS
- Christie DWU7062-GS
- Christie DWU6322-GS
- D13HD2-HS
