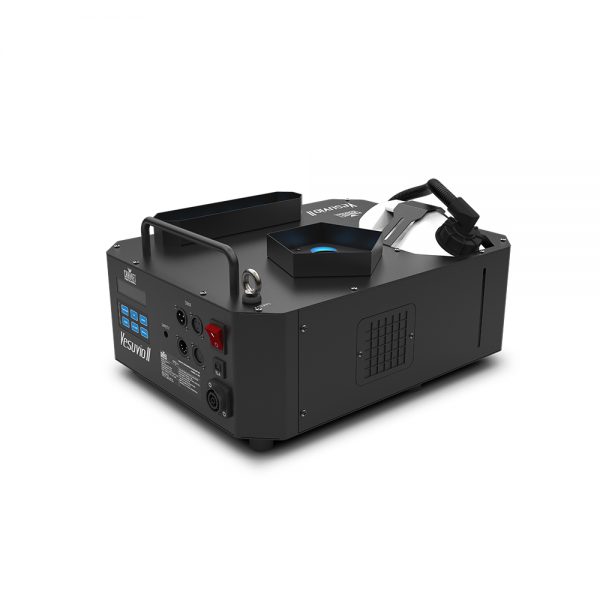

Chauvet - Vesuvio II front right of forg machine handle and control panelChauvet - Vesuvio II front right of forg machine handle and control panel

Chauvet Professional – Vesuvio II

Chauvet Professional

A high-output fog machine that illuminates powerful bursts of fog with advanced RGBA+UV LED color mixing, creating ferocious atmospheric effects.

Ideal for concerts, theatrical productions, and special events requiring powerful, colored fog effects that can be deployed vertically, horizontally, or from overhead trusses.

Features

  • Dual LED sections with RGBA+UV sources provide vibrant, even illumination of fog plumes.
  • Generates a massive 40,000 cfm output with an impressive 40-second continuous burst.
  • Built for efficiency, consuming only 80 ml/min from its 2.5-liter fluid tank.
  • Allows for vertical, horizontal, or overhead deployment with included mounting brackets.
  • Provides full DMX control over 15 channels via 3-pin and 5-pin connectors.
  • Features a robust housing built to withstand the rigors of touring and event production.
SKU: VESUVIOII Categories: , , ,

Description

Vesuvio II illuminates bursts of fog with advanced RGBA+UV LED color mixing, providing ferocious effects for events and performances. Featuring an impressive 40,000 cubic feet of fog per minute, it boasts a best in class 40 seconds of full burst output. New dual LED sections give greater creative control for a more even coverage of light. The Vesuvio II is built for efficiency, consuming only 80 ml/min of QDF fluid. This highly versatile unit can run in three different positions: vertically, horizontally or from overhead with mounting brackets. It works best with CHAUVET QDF quick dissipating fluid.

Features

  • Advanced red, green, blue, amber, and UV (RGBA/UV) LED color mixing
  • 40 second continuous bursts of fog, for intense effects and performance
  • 40,000 CFM fog output for intense, large effects
  • 2.5 l fluid tank for reliability in production
  • Strong, sturdy construction for numerous production types
  • DMX control for ease of use in production situations
  • 3- and 5-pin DMX input/output connections

Video

Vesuvio II Product Video by CHAUVET Professional

Vesuvio II illuminates bursts of fog with advanced RGBA+UV LED colour mixing, providing ferocious effects for events and performances. Featuring an impressive 40,000 cubic feet of fog per minute, it boasts a best in class 40 seconds of full burst output. New dual LED sections give greater creative control for a more even coverage of light. The Vesuvio II is built for efficiency, consuming only 80ml/min of QDL fluid. This highly versatile unit can run in three different positions: vertically, horizontally or from overhead with mounting brackets. It works best with the Chauvet HDF high-density and QDF quick dissipating fluid.

What’s Included

  • Vesuvio II
  • Seetronic Powerkon IP65power cord

Additional information

Weight 12.9 kg
Optical

Light Source: 10 LEDs (RGBA/UV) 8.5 W, (3 A), 50,000 hours life expectancy
Illuminance (Center): 199.5 lux @ 5 m
Illuminance (Linear): 154 lux @ 5 m
Illuminance (Both): 334 lux @ 5 m
PWM Frequency: 126 Hz
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 20 Hz
Output: 40,000 cfm
Low Fluid Shutdown: No
Construction & Physical

Dimensions: 19.49 x 13.18 x 9.39 in (495 x 335 x 239 mm)
Weight: 28.4 lb (12.9 kg)
Exterior Color: BLACK
Housing Material: Steel
Tank Capacity: 0.7 gal (2.5 l)
Fluid Consumption: 80 ml/min
Maximum Run time: 1 hour @ 40s bursts, 1m intervals (using Chauvet QDF fluid)
Maximum Run time: 2 hours @ 40s bursts, 2m intervals (using Chauvet QDF fluid)
Maximum Run time: 2.5 hours @ 40s bursts, 3m intervals (using Chauvet QDF fluid)
Connections

Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Control

Control Protocol: DMX
DMX Channels: 15
Modes/Personalities: 1 personalities
On-Board Control: Yes
Included Remote: No
Electrical

Input Voltage (120V): 120 VAC, 60 Hz
Input Voltage (220V): 230 VAC, 50 Hz
Power and Current (120V): 1,480 W, 12.55 A @ 120 V, 60 Hz
Power and Current (220V): 2,880 W, 12.55 A @ 230V, 60 Hz
Heat-up Time (120V): 10 min
Heat-up Time (220V): 10 min
Breaker Size (120V): 15A
Breaker Size (220V): 15A
Certification

CE
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Thermal Dissipation @ 120V: 5,050 BTU per hour (max)
Thermal Dissipation @ 230V: 9,825 BTU per hour (max)

Downloads

Data Sheet Download
User Guide Download
